SWING L The universal delivery pump for pumping, applying and spraying

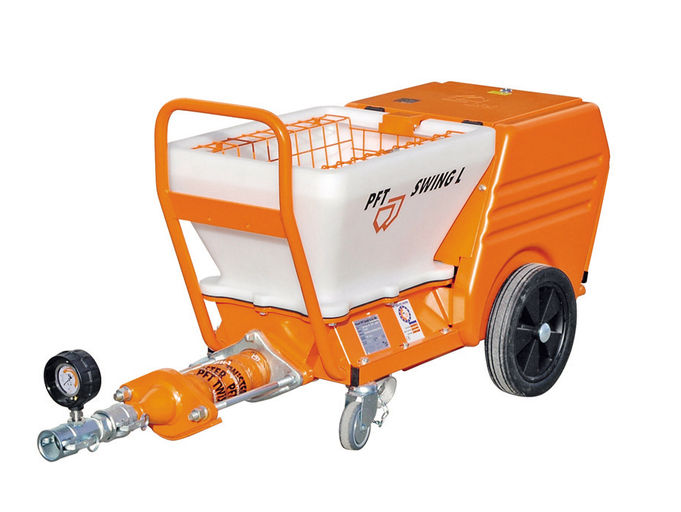

PFT SWING L
  • PFT construction site SWING L

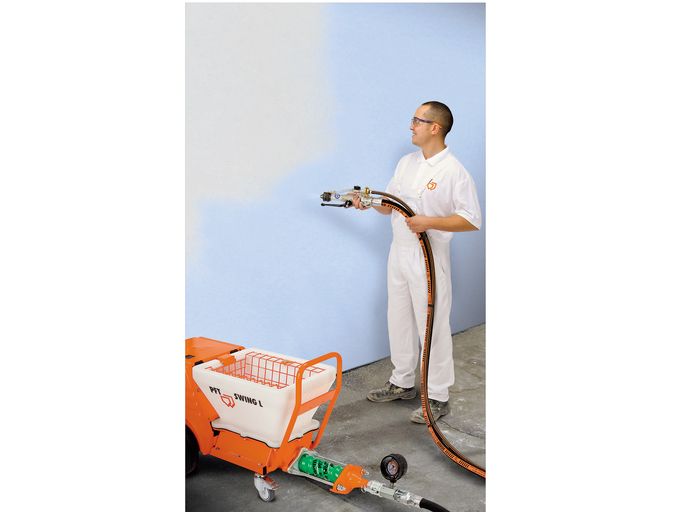

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. With the SWING family, PFT satisfies a wide range of requirements. Runny, pump-friendly and solvent-free materials with a grain size of up to 8 mm can be pumped, injected and sprayed. Filling takes place from the bucket or a screw mixer. In combination with an air compressor and a spraying gun, the SWING L can also be used to apply plasters and paints.

  • Simple operation
  • 230V standard power socket
  • Easy cleaning

Details

  • Low filling height fits easily under almost all mixers
  • Plastic material hopper – easy cleaning
  • Adjustable conveying output by changing the pump (D or R pump)
  • High conveying output and long conveying distance
  • Universal filling from the bucket or screw mixer
  • Handy and compact
  • Quick cleaning and maintenance
  • Fits in any estate car without dismantling

For processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. In combination with an air compressor and a spraying gun, the PFT SWING L can also be used to apply plasters and paints.

  • Adhesive and reinforcing mortar
  • Finishing coat
  • Insulating plaster
  • Floor filling compound
  • Fine filler
  • Masonry mortar
  • Floor screed up to 60 l/min

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS07_de PFT SWING L FC-400V Oct. 2022 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL126_de PFT SWING L Sep. 2022 Bedienungsanleitung
PDF
SP35 SWING L Apr. 2016 Sachkundigenprüfung
PDF

Technical data

  • SWING L FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    SWING L FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00201952
    Performance :

    Conveying output, max.:
    6.5 – 21 l/min

    Conveying distance up to:
    15 m in DN25

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 4 kW

    Drive:
    Pump motor: 4 kW, 70 – 236 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    610 mm

    Hopper volume:
    76 litres

    Length/Width/Height:
    1,600/600/660 mm

    Total weight:
    133 kg

    Basic equipment package :

    Pump unit:
    TWISTER D 8-1.5 · 21 l/min · 15 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 male part | DN25 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    3 x 2.5 mm², BLU 3-16 A – 25 m

    Water hose/air hose:
    Not included

    Show more
  • SWING L<br>400 V, 3 Ph, 50 Hz Produktbild

    SWING L
    400 V, 3 Ph, 50 Hz

    Part no. :
    00197829
    Performance :

    Conveying output, max.:
    15.4 l/min

    Conveying distance up to:
    30 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Drive:
    Pump motor: 5.5 kW, 292 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    610 mm

    Hopper volume:
    76 litres

    Length/Width/Height:
    1,600/600/660 mm

    Total weight:
    133 kg

    Basic equipment package :

    Pump unit:
    TWISTER D 6-3 · 15.4 l/min · 30 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 male part | DN25 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • SWING L FC-400V<br/>400 V, 3 Ph, 50 Hz  Produktbild

    SWING L FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00178415
    Performance :

    Conveying output, max.:
    4 – 90 l/min

    Conveying distance up to:
    30 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Drive:
    Pump motor: 5.5 kW, 135 – 448 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    610 mm

    Hopper volume:
    76 litres

    Length/Width/Height:
    1,600/600/660 mm

    Total weight:
    133 kg

    Basic equipment package :

    Pump unit:
    TWISTER D 6–3 · 25 l/min · 30 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 male part | DN25 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Ausstattung

  • SWING L FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    SWING L FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00201952
    Basic equipment :

    • Motor 4 kW, 70 – 236 rpm
    • Pump capacity can be easily adjusted with a potentiometer
    • Plastic material hopper –
      easy cleaning
    • Grout outlet DN35 female part with mortar pressure gauge
    • Hopper volume 76 litres
    • Cleaning port in material hopper
    • Higher conveying output
    • Electronically variable conveying output
      via frequency converter
      Note: Only possible with "Pump unit D 8-1.5"
    • Handy and compact
    • Powerful and reliable operation via standard power socket

    Basic equipment package :

    • Rotor D 8-1.5 / Stator TWISTER D 8-1.5
      Pump capacity: max. 21 l/min, 15 bar,
      up to 15 m conveying distance in DN25
    • Cleaner coupling for cleaning the
      material hose DN35 female part | Geka
    • Extension cable 3 x 2.5 mm²,
      BLU 3-16 A – 25 m

    Show more
  • SWING L<br>400 V, 3 Ph, 50 Hz Produktbild

    SWING L
    400 V, 3 Ph, 50 Hz

    Part no. :
    00197829
    Basic equipment :

    • Drive motor 5.5 kW, 292 rpm
    • Plastic material hopper –
      easy cleaning
    • Grout outlet DN35 female part with mortar pressure gauge
    • Adapter coupling DN35 male part | DN25 male part NW24
    • Hopper volume 76 litres
    • Cleaning port in material hopper
    • Higher conveying output
    • Adjustable conveying output by changing the pump (D or R pump)
    • Handy and compact
    • Low filling height fits easily under almost all mixers
    • Universal filling from the bucket or screw mixer

    Basic equipment package :

    • Rotor D 6–3 / Stator TWISTER D 6–3
      Pump capacity: 15.4 l/min, 30 bar,
      30 m conveying distance in DN35

    Show more
  • SWING L FC-400V<br>400 V, 3 Ph, 50 Hz Produktbild

    SWING L FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00178415
    Basic equipment :

    • Drive motor 5.5 kW, 135 – 448 rpm
    • Pump capacity can be easily adjusted with a potentiometer
    • Plastic material hopper –
      easy cleaning
    • Grout outlet DN35 female part with mortar pressure gauge
    • Adapter coupling
      DN35 male part | DN25 male part NW24
    • Hopper volume 76 litres
    • Cleaning port in material hopper
    • Higher conveying output
    • Variable conveying output due to
      Pump change (D or R pump)
    • Handy and compact
    • Low filling height fits easily under almost all mixers
    • Universal filling from the bucket or screw mixer

    Basic equipment package :

    • Rotor D 6–3 / Stator TWISTER D 6–3
      Pump capacity: 25 l/min, 30 bar,
      30 m conveying distance in DN35

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423400

Description

Extension cable 3 x 2.5 mm², BLA 2-16 A – 25 m (230 V/1 Ph)

20423400 Bild
Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00253076

Protection grille "deep" - necessary in screw mixers

00253076 Bild
00208824

Pump unit D 8-1.5 for SWING L

00208824 Bild
00178747

Compressor conveying

00178747 Bild
