Agitator For optimum material mixing

Agitator

The larger air bubbles in the mixed mortar are crushed in the agitator such as ROTOMIX or ROTOQUIRL and thereby stabilised. The intensive mixing makes the mortar smoother, more productive and completely lump-free. This ensures easy and even processing.

  • Recommendation
  • Easy to work with
  • Quality

Details

Highlights

  • Improvement of the mortar properties
  • Maximum utilisation of the material quality
  • Working with optimal water factor
  • Intensive mixing of the material

ROTOMIX
The ROTOMIX is often used for higher throughput volumes.
E.g. in the area of floor filler or floor screed

ROTOMIX disc
The two rotating discs also grind very fine material components.
This allows the very fine material to be mixed without lumps.
E.g. Alphadur from Knauf

ROTOQUIRL
The large hopper volume of 4.2 litres enables good mixing and increases the air pore content in the material.
The ROTOQUIRL is the machine of choice for materials with many aggregates.

General structure
- Tie rods (2 pcs)
- Coupling
- Mixing blade
- Agitator cover
- Agitator housing

ROTOMIX B-pump
Compatible with RITMO M, RITMO L, RITMO L plus
- Floor filler
- Floor screed
- Scratch coat
- Frame grouting mortar

ROTOMIX D-pump
Compatible with G series, RITMO XL
- Floor screed
- Adhesive and reinforcing mortar
- Scratch coat
- Frame grouting mortar

ROTOMIX R-pump
Compatible with G series, RITMO XL
- Floor screed

ROTOMIX disc
Compatible with G series, RITMO XL
- Floor filler

ROTOQUIRL
Compatible with G series, RITMO XL
- Insulating plaster
- Restoration plaster
- Scratch coat
- Adhesive

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL167_en PFT ROTOQUIRL / PFT ROTOMIX Jun. 2023 Operating instructions
PDF

Equipment / Accessories

Equipment

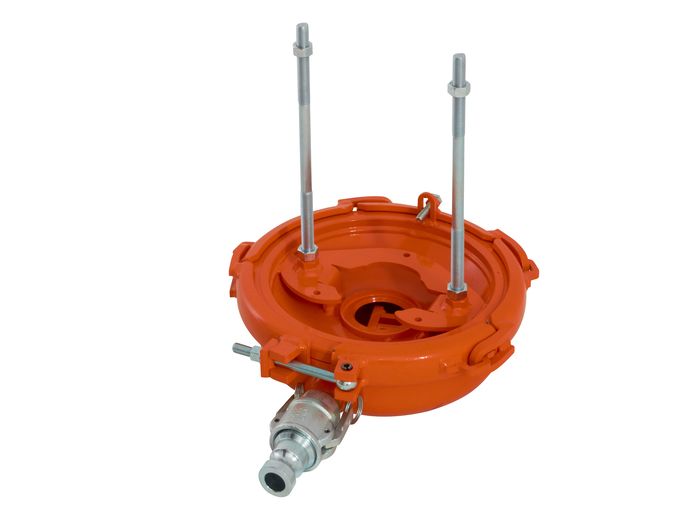

  • ROTOMIX B-pump Produktbild

    ROTOMIX B-pump

    Part no. :
    00251139
    Basic equipment :

    Volume:
    0.25 l

    Coupling:
    DN25 male part

    Weight:
    3.8 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor B pump with tang
    - Stator B-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 16 l/min

    Show more

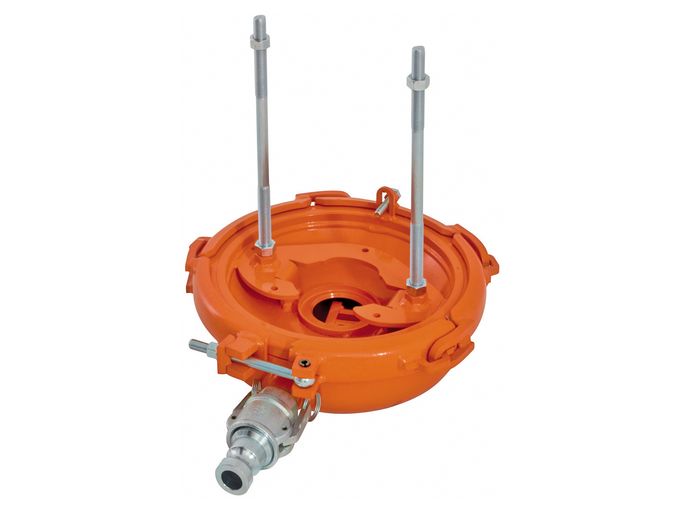

  • ROTOMIX D-pump Produktbild

    ROTOMIX D-pump

    Part no. :
    00767641
    Basic equipment :

    Volume:
    1.2 l

    Coupling:
    DN35 female part

    Weight:
    12.1 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor D-pump with tang
    Note: Mixing blade 25 mm necessary for agitator
    - Stator D-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 35 l/min

    Show more
  • ROTOMIX R-pump Produktbild

    ROTOMIX R-pump

    Part no. :
    00767642
    Basic equipment :

    Volume:
    1.2 l

    Coupling:
    DN35 female part

    Weight:
    11 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor R-pump with tang
    Note: Mixing blade 25 mm necessary for agitator
    - Stator R-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 80 l/min

    Show more
  • ROTOMIX disc Produktbild

    ROTOMIX disc

    Part no. :
    00767745
    Basic equipment :

    Volume:
    1.2 l

    Coupling:
    DN35 female part

    Weight:
    12.5 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor D-pump with tang
    Note: Mixing blade 25 mm necessary for agitator
    - Stator D-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 30 l/min

    Show more
  • ROTOQUIRL D-pump Produktbild

    ROTOQUIRL D-pump

    Part no. :
    00767760
    Basic equipment :

    Volume:
    4.2 l

    Coupling:
    DN35 female part

    Weight:
    28 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor D-pump with tang
    Note: Mixing blade 25 mm necessary for agitator
    - Stator D-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 35 l/min

    Show more
  • ROTOQUIRL R-pump Produktbild

    ROTOQUIRL R-pump

    Part no. :
    00767763
    Basic equipment :

    Volume:
    4.2 l

    Coupling:
    DN35 female part

    Weight:
    28 kg

    Prerequisite:
    Can only be operated in conjunction with:
    - Rotor R-pump with tang
    Note: Mixing blade 25 mm necessary for agitator
    - Stator R-pump
    - Mortar pressure gauge
    DN35 male part | DN35 female part
    (Part no. 00102228)

    Output:
    max. 80 l/min

    Show more

Useful extras

Part no.
Description

20118407

Cover ROTOQUIRL for R-pumps

20118407 Bild
20118143

Cover ROTOMIX for R-pumps

20118143 Bild
