Knauf PFT Knauf PFT

SILOMAT DF Q The compact and transport-friendly conveying system for pressure silos

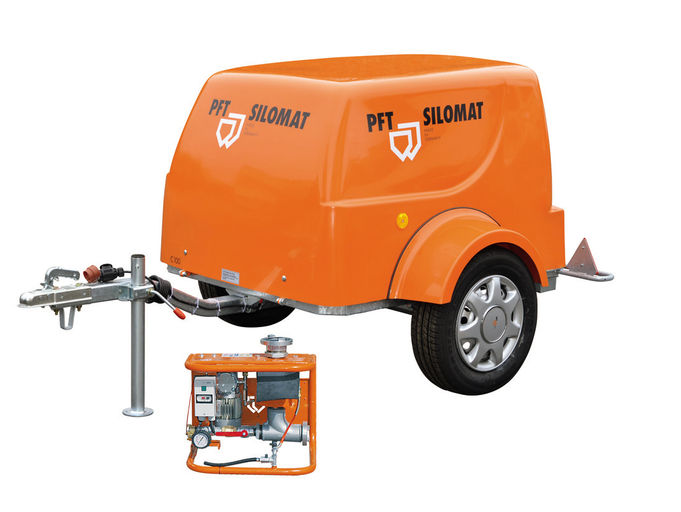

PFT SILOMAT trailer DF Q 105

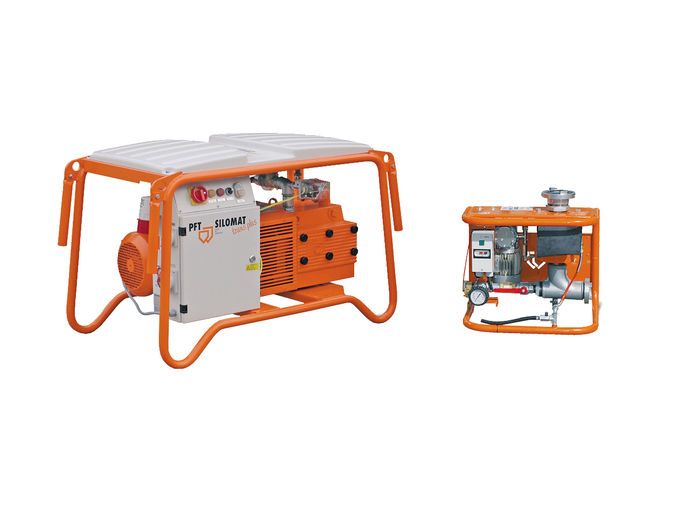

  • PFT SILOMAT trans plus DF Q 105

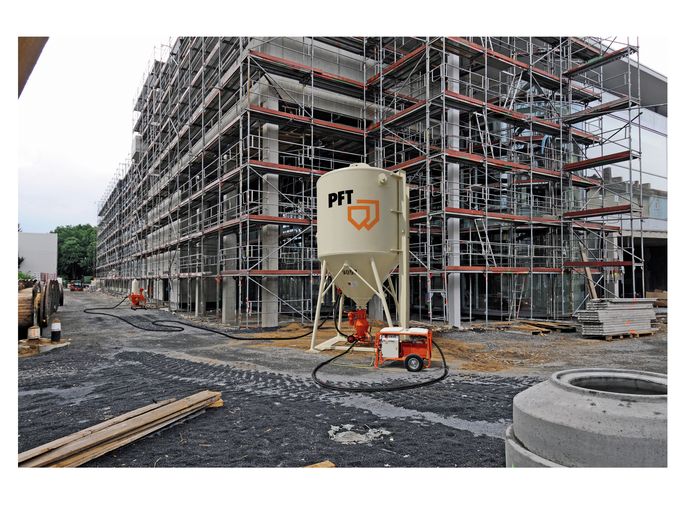

  • PFT construction site SILOMAT trans plus

PFT's pneumatic SILOMAT conveying equipment is designed for fully automatic, dust-free material transport of the ready-mix dry mortar from the silo/container to the processing site. Various models are available to cover a wide range of requirements. The particularly powerful PFT SILOMAT DF Q is a mobile unit for pressure silos with B-coupling. It is mounted on a single-axle chassis with a car trailer coupling and significantly reduces noise on the construction site when the hood is closed. The separate squeezer valve-conveying block can be connected to any container / silo in a few simple steps. The system has a powerful rotary compressor with a 5.5 kW motor.

  • 42V control voltage
  • Hose length
  • Simple operation

Details

  • Higher performance
  • Easy handling
  • Conveying block – portable
  • Fluidiser: Increases and ensures the material flow, the tank is emptied almost completely
    - Maintenance-free
    - Resistant to humidity
    - Retrofittable
    - Performance increase of up to 30 %
  • Compressor as dry running water meter, no oil change required
  • Rotary compressor available in wheeled and portable versions
  • Crane transport lugs and fold-out carrying handles
  • Suitable for container/silo discharge flange Ø 250 mm
  • Shut-off flap with actuator and hand wheel
  • Easily replaceable gaskets
  • Bypass: Manually controllable for stiff material and longer conveying distances
  • High machine running times with high level of operating safety
  • Easy replacement of wear parts
  • Transport with car trailer - Version: SILOMAT trailer

Fully automatic and dust-free, the SILOMAT trans plus conveys dry mortar.
With a few simple steps, the system can be set up and transported with ease.

  • Machine gypsum plaster
  • Lime/gypsum plaster
  • Cement plaster
  • Lime plaster
  • Masonry mortar
  • Bulk goods
  • Aggregates
  • Powder material

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL184_de Allgemeine Sicherheitshinweise Förderanlagen Dec. 2021 Sicherheitshinweis
PDF
BAL28_de PFT SILOMAT trans plus DF Q 145 May 2022 Bedienungsanleitung
PDF
BAL27_de PFT SILOMAT trans plus DF Q 105 5,5 kW May 2022 Bedienungsanleitung
PDF
BAL212_de PFT SILOMAT trans plus DF Q 105 Klauenkompressor Oct. 2019 Bedienungsanleitung
PDF
ET90 SILOMAT trans plus DF Q Jan. 2021 Ersatzteilliste
PDF
SP30 SILOMAT trans plus DF Q 105/145 Apr. 2016 Sachkundigenprüfung
PDF

Technical data

  • SILOMAT trailer DF Q 105<br>400 V, 3 Ph, 50 Hz<br><br> Produktbild

    SILOMAT trailer DF Q 105
    400 V, 3 Ph, 50 Hz

    Part no. :
    00106800
    Performance :

    Conveying distance:
    100 m

    Conveying output:
    24 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 5.5 kW
    Max. pressure: 2.0 bar
    Air quantity: 105 Nm³/h

    Dimensions :

    Length/Width/Height:
    2,320/1,530/1,230 mm

    Weight of conveying pot:
    27.5 kg

    Weight of rotary compressor including carrier element:
    308 kg

    Total weight:
    336 kg

    Show more
  • SILOMAT trans plus DF Q 105 - portable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 105 - portable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124367
    Performance :

    Conveying distance:
    100 m

    Conveying output:
    24 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 5.5 kW
    Max. pressure: 2.0 bar
    Air quantity: 105 Nm³/h

    Dimensions :

    Length/Width/Height:
    1,100/635/720 mm

    Weight of conveying pot:
    27.5 kg

    Weight of rotary compressor including carrier element:
    182.5 kg

    Total weight:
    210 kg

    Show more
  • SILOMAT trans plus DF Q 145 - portable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 145 - portable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124864
    Performance :

    Conveying distance:
    140 m

    Conveying output:
    24 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 7.5 kW
    Max. pressure: 2.5 bar
    Air quantity: 145 Nm³/h

    Dimensions :

    Length/Width/Height:
    1,100/635/720 mm

    Weight of conveying pot:
    27.5 kg

    Weight of rotary compressor including carrier element:
    182.5 kg

    Total weight:
    210 kg

    Show more
  • SILOMAT trans plus DF Q 105 - rollable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 105 - rollable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124368
    Performance :

    Conveying distance:
    100 m

    Conveying output:
    24 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 5.5 kW
    Max. pressure: 2.0 bar
    Air quantity: 105 Nm³/h

    Dimensions :

    Length/Width/Height:
    1,100/635/720 mm

    Weight of conveying pot:
    27.5 kg

    Weight of rotary compressor including carrier element:
    182.5 kg

    Total weight:
    210 kg

    Show more
  • SILOMAT trans plus DF Q 145 - rollable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 145 - rollable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00127838
    Performance :

    Conveying distance:
    140 m

    Conveying output:
    24 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 7.5 kW
    Max. pressure: 2.5 bar
    Air quantity: 145 Nm³/h

    Dimensions :

    Length/Width/Height:
    1,100/635/720 mm

    Weight of conveying pot:
    27.5 kg

    Weight of rotary compressor including carrier element:
    182.5 kg

    Total weight:
    210 kg

    Show more

Equipment / Accessories

Ausstattung

  • SILOMAT trailer DF Q 105<br>400 V, 3 Ph, 50 Hz<br><br> Produktbild

    SILOMAT trailer DF Q 105
    400 V, 3 Ph, 50 Hz

    Part no. :
    00106800
    Basic equipment :

    Conveying block (pressure silo)

    • Integrated compressor for squeezer valve
    • Portable – easy handling

    Rotary compressor
    on single-axle chassis

    • Rotary compressor with 5.5 / 7.5 kW
      Air quantity: 105/145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Single-axle chassis, unbraked with car trailer hitch
      and 13-pin connecting plug

    Show more
  • SILOMAT trans plus DF Q 105 - portable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 105 - portable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124367
    Basic equipment :

    Conveying block (pressure silo)

    • Integrated compressor for squeezer valve
    • Portable – easy handling

    Rotary compressor –
    Portable supporting frame

    • Rotary compressor with 5.5 / 7.5 kW
      Air quantity: 105/145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Crane transport lugs and fold-out carrying handles

    Show more
  • SILOMAT trans plus DF Q 145 - portable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 145 - portable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124864
    Basic equipment :

    Conveying block (pressure silo)

    • Integrated compressor for squeezer valve
    • Portable – easy handling

    Rotary compressor –
    Portable supporting frame

    • Rotary compressor with 5.5 / 7.5 kW
      Air quantity: 105/145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Crane transport lugs and fold-out carrying handles

    Show more
  • SILOMAT trans plus DF Q 105 - rollable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 105 - rollable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00124368
    Basic equipment :

    Conveying block (pressure silo)

    • Integrated compressor for squeezer valve
    • Portable – easy handling

    Rotary compressor –
    Rollable supporting frame

    • Rotary compressor with 5.5 / 7.5 kW
      Air quantity: 105/145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Crane transport lugs and fold-out carrying handles
    • Transport rollers for easy handling

    Show more
  • SILOMAT trans plus DF Q 145 - rollable<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus DF Q 145 - rollable
    400 V, 3 Ph, 50 Hz

    Part no. :
    00127838
    Basic equipment :

    Conveying block (pressure silo)

    • Integrated compressor for squeezer valve
    • Portable – easy handling

    Rotary compressor –
    Rollable supporting frame

    • Rotary compressor with 5.5 / 7.5 kW
      Air quantity: 105/145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Crane transport lugs and fold-out carrying handles
    • Transport rollers for easy handling

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m

20423900 Bild
Part no.

00473424

Description

Conveying hose - initial equipment – 73.3 m consisting of:

  • 3 x 3-layer rubber hose DN45 – 20 m
  • 1 x 3-layer rubber hose DN45 – 13.3 m
  • Hose holder with hook

00473424 Bild
Part no.

00464232

Description

Conveying hose of 3-layer rubber hose DN45 – 13.3 m C-coupling

00464232 Bild
Part no.

00464233

Description

Conveying hose of 3-layer rubber hose DN45 – 20 m C-coupling

00464233 Bild
Part no.

20652800

Description

Conveying hose of PVC textile hose DN46 – 12.5 m C-coupling

20652800 Bild
Part no.

20652900

Description

Conveying hose of PVC textile hose DN46 – 25 m C-coupling

20652900 Bild
Part no.

20650500

Description

Conveying hose - initial equipment – 75 m consisting of:

  • 3 x PVC fabric hose DN46 - 25 m
  • Hose holder with hook

20650500 Bild

Useful extras

Part no.
Description

00128606

External vibrator A10-2.67 – 8 m, 400 V, 3 Ph, 50 Hz

00128606 Bild
20654000

Hose holder with hook

20654000 Bild
20706600

Twin adapter 330/330 for connection of 2 SILOMAT conveying pots
Note: Intermediate piece required

20706600 Bild
20716000

Filling hopper for bagged goods
Note: Not for "SILOMAT trans plus bag"

20716000 Bild
00420664

Folding injection hood for G 4, RITMO XL

00420664 Bild
00453469

Extension hopper – 142 litres for G 4 for maximum utilisation

00453469 Bild
00001899

Adapter plug for trailer coupling, from 7-pin to 13-pin

00001899 Bild
00129592

Conversion kit – portable to rollable
Air-filled rollers for easy handling at the construction site

00129592 Bild
