SILOMAT trans plus bag Perfect for construction sites without silo storage space

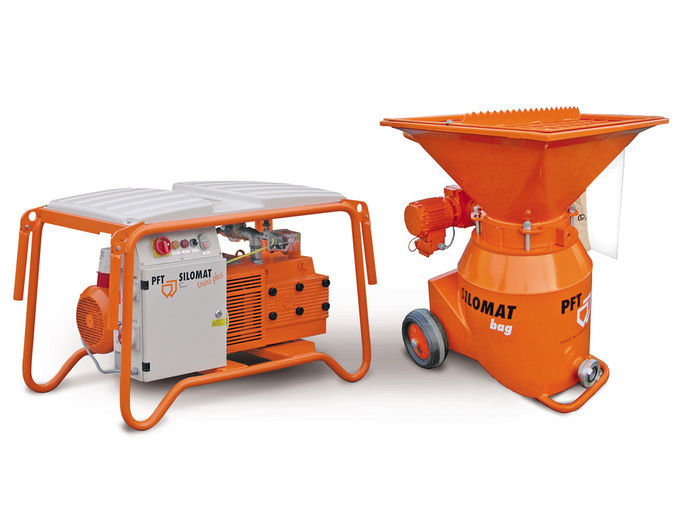

PFT SILOMAT trans plus bag 145
  • PFT construction site SILOMAT trans plus bag

PFT's pneumatic SILOMAT conveying equipment is designed for fully automatic, dust-free material transport of the ready-mix dry mortar from the silo/container to the processing site. Various models are available to cover a wide range of requirements. The compact PFT SILOMAT trans plus bag is a conveying system for bag or silo filling. With a long conveying distance, it is ideal for construction sites without silo storage space. The conveying pot with sack opener offers a low filling height. The innovative venting system ensures dust-free working and complete hopper filling. The SILOMAT trans plus has a powerful rotary compressor with 7.5 kW. Using a PFT accessory, the conveying system can be converted for use with silo technology.

  • 42V control voltage
  • Hose length
  • Simple operation

Details

  • Simple transport of large quantities of material without silo
  • Fluidiser: Increases and ensures the material flow, the tank is emptied almost completely
    - Maintenance-free
    - Resistant to humidity
    - Retrofittable
    - Performance increase of up to 30 %
  • Compressor as dry running water meter, no oil change required
  • Crane transport lugs and fold-out carrying handles
  • Suitable for container/silo discharge flange Ø 250 mm
  • Easily replaceable gaskets
  • Support angle for pallet truck
  • Support angle for forklift truck
  • Bypass: Manually controllable for stiff material and longer conveying distances
  • High machine running times with high level of operating safety
  • Easy replacement of wear parts
  • Shut-off flap with actuator and hand wheel
  • Rotary compressor available in wheeled and portable versions

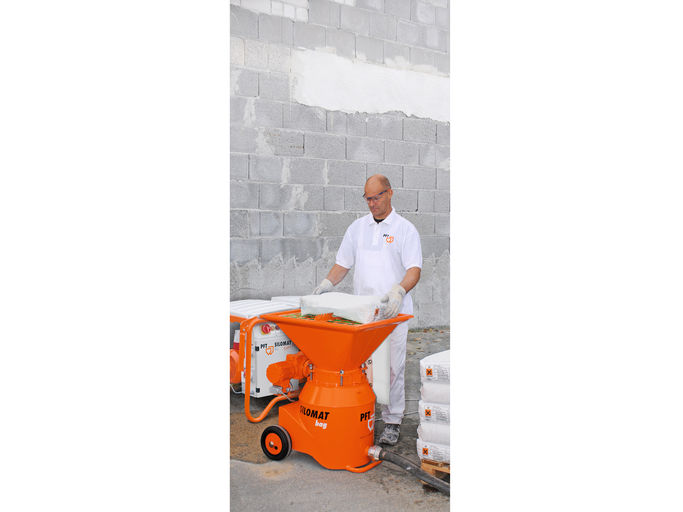

No space on the construction site? Using the SILOMAT trans plus bag large materials can be transported without silo.
All-in-one - the compact conveying system for bag and silo filling.

  • Lime/gypsum plaster
  • Cement plaster
  • Machine gypsum plaster
  • Masonry mortar
  • Lime plaster
  • Bulk goods
  • Aggregates
  • Powder material
  • Lime-cement render

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL184_de Allgemeine Sicherheitshinweise Förderanlagen Dec. 2021 Sicherheitshinweis
PDF
BAL23_de PFT SILOMAT trans plus / bag 105/145 May 2022 Bedienungsanleitung
PDF
DS55_de PFT SILOMAT trans plus bag Oct. 2022 Prospekt
PDF
SP31 SILOMAT trans plus bag May 2011 Sachkundigenprüfung
PDF

Technical data

  • SILOMAT trans plus bag 145<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus bag 145
    400 V, 3 Ph, 50 Hz

    Part no. :
    00689527
    Performance :

    Conveying distance:
    140 m

    Conveying output:
    20 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 7.5 kW
    Max. pressure: 2.5 bar
    Air quantity: 145 Nm³/h

    Dimensions :

    Contents of conveying pot/block:
    60 litres

    Length/Width/Height:
    1,100/635/720 mm

    Height of conveying pot:
    980 mm

    Weight of conveying pot:
    92 kg

    Weight of rotary compressor including carrier element:
    202 kg

    Total weight:
    294 kg

    Show more

Equipment / Accessories

Ausstattung

  • SILOMAT trans plus bag 145<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trans plus bag 145
    400 V, 3 Ph, 50 Hz

    Part no. :
    00689527
    Basic equipment :

    Conveying pot – rollable

    • Ergonomic filling height of 950 mm
    • Loading with bagged goods
    • Capacity: 60 litres / weight: 92 kg / height: 980 mm
    • Shut-off flap with actuator and hand wheel
    • Easily replaceable gaskets
    • Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
    • Transport rollers for easy handling
    • Lateral venting in the tank -
      accelerates and secures the filling process, no air cushion formation in the tank

    Rotary compressor – supporting frame

    • Rotary compressor with 7.5 kW
      Air quantity: 145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Crane transport lugs and fold-out carrying handles

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m

20423900 Bild
Part no.

00473424

Description

Conveying hose - initial equipment – 73.3 m consisting of:

  • 3 x 3-layer rubber hose DN45 – 20 m
  • 1 x 3-layer rubber hose DN45 – 13.3 m
  • Hose holder with hook

00473424 Bild
Part no.

00464232

Description

Conveying hose of 3-layer rubber hose DN45 – 13.3 m C-coupling

00464232 Bild
Part no.

00464233

Description

Conveying hose of 3-layer rubber hose DN45 – 20 m C-coupling

00464233 Bild
Part no.

20652800

Description

Conveying hose of PVC textile hose DN46 – 12.5 m C-coupling

20652800 Bild
Part no.

20652900

Description

Conveying hose of PVC textile hose DN46 – 25 m C-coupling

20652900 Bild
Part no.

20650500

Description

Conveying hose - initial equipment – 75 m consisting of:

  • 3 x PVC fabric hose DN46 - 25 m
  • Hose holder with hook

20650500 Bild

Useful extras

Part no.
Description

00128606

External vibrator A10-2.67 – 8 m, 400 V, 3 Ph, 50 Hz

00128606 Bild
20654000

Hose holder with hook

20654000 Bild
20706600

Twin adapter 330/330 for connection of 2 SILOMAT conveying pots
Note: Intermediate piece required

20706600 Bild
00420664

Folding injection hood for G 4, RITMO XL

00420664 Bild
00453469

Extension hopper – 142 litres for G 4 for maximum utilisation

00453469 Bild
00201267

Cover for conveying pot for SILOMAT trans plus bag

00201267 Bild
00129592

Conversion kit – portable to rollable
Air-filled rollers for easy handling at the construction site

00129592 Bild
00195080

Conversion kit for conveying pot to silo operation
Intermediate piece for silo connection Ø 250 mm for conveying pot

00195080 Bild
