RITMO XL The powerful mixing pump for plastering work

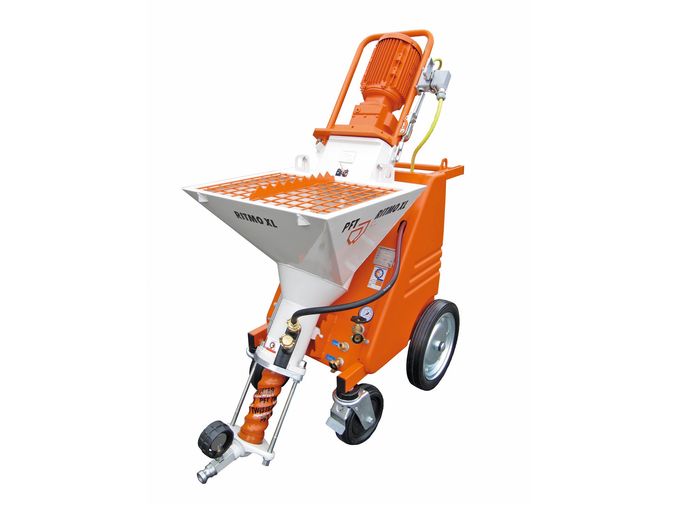

PFT RITMO XL

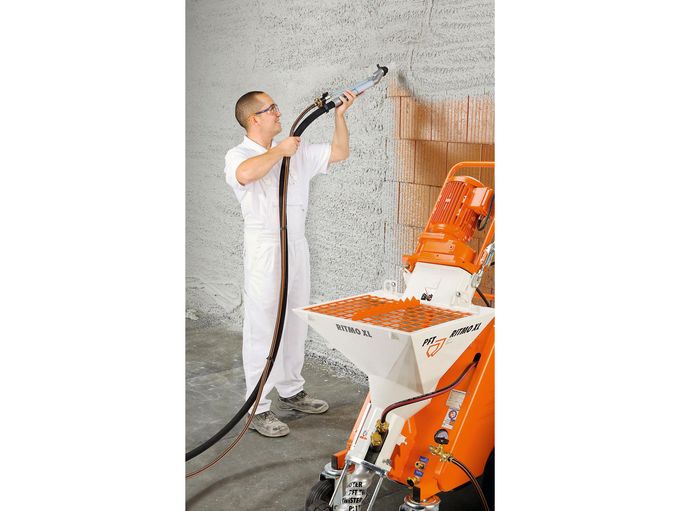

  • RITMO XL application

Mixing pumps - also known as plastering machines or mortar pumps - continuously and fully automatically process all machine-compatible ready-mix dry mortars based on gypsum, lime and cement with water. PFT offers several model ranges, including the RITMO family. The machine can be loaded with buckets or bagged material, can be used as a mixing pump or pump and is operated with a KVA power generator. As a compact RITMO XL, the one-person mixing pump has a powerful drive and is specially designed for pumping, spraying and applying machine-compatible dry mortars, pasty materials and much more up to 7 mm grain size. The pump capacity of the RITMO XL can be adjusted by means of a quick pump change depending on the requirements. Pneumatic filling is ensured via an optional injection hood. The extended scope of delivery of the XL includes a water pump as a pressure booster pump. Agitators such as PFT ROTOMIX or PFT ROTOQUIRL can be integrated. Available as 230 volt and 400 volt version.

  • Mixing quality
  • 42V control voltage
  • With rubber mixing zone - easy cleaning
  • 230/400V switchable
  • Hose length

Details

  • Suitable for buckets or bagged material
  • Rubber mixing zone, for easy cleaning, with adaptable flange for D and R pump
  • Flexible mixing intensity thanks to two water inlets
  • Switchable between 230 V and 400 V (only with RITMO XL FC-230/400V)
  • Conical mixing tube for optimum material flow
  • Ready for remote control cable
  • Powerful and reliable operation via standard power socket
  • Integrated water pump AV 700 for pressure boosting (only with RITMO XL)
  • Simple, compact and rollable
  • Filling height adjustable
  • Easily broken down into three modules
  • Tool box including basic accessories
  • Frequency converter for infinitely variable speed control and torque amplification
    (only with RITMO XL FC-230V and RITMO XL FC-230/400V)

Compact and handy mixing pump with powerful drive. Specially developed for pumping, spraying and applying machine-compatible dry mortars, pasty materials and much more.
With the flexible choice between 230 V and 400 V, it combines the advantages of the best-selling PFT G 4 and spraying technology from the RITMO family.

  • Machine gypsum plaster
  • Lime/gypsum plaster
  • Cement plaster
  • Masonry mortar
  • Adhesive and reinforcing mortar
  • Insulating plaster
  • Floor screed
  • Liquid filler

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS144_de PFT RITMO XL 400V Mar. 2021 Prospekt
PDF
DS44_de PFT RITMO XL FC-230/400V Mar. 2021 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL78_de PFT RITMO XL 400 V Oct. 2022 Bedienungsanleitung
PDF
BAL79_de PFT RITMO XL FC-230/400V Oct. 2022 Bedienungsanleitung
PDF
BAL80_de PFT RITMO XL FC-230V Oct. 2022 Bedienungsanleitung
PDF
ET43 RITMO XL: Fahrgestell (00199509) Apr. 2019 Ersatzteilliste
PDF
ET49 RITMO XL 400 V: Kippflansch (00199522) Aug. 2016 Ersatzteilliste
PDF
ET56 RITMO XL 230 V: Luftkompressor, Luftarmatur (00199594) Apr. 2019 Ersatzteilliste
PDF
ET50 RITMO XL FC-230/400V: Kippflansch (00246740) Apr. 2019 Ersatzteilliste
PDF
ET51 RITMO XL: Materialbehälter (00195234) Apr. 2019 Ersatzteilliste
PDF
ET52 RITMO XL: Pumpeneinheit D 6-3 (00199512) Aug. 2016 Ersatzteilliste
PDF
ET53 RITMO XL: Pumpeneinheit D4-3 Apr. 2019 Ersatzteilliste
PDF
ET57 RITMO XL: Luftkompressor (00199508) Aug. 2016 Ersatzteilliste
PDF
ET64 RITMO XL 230 V: Schaltschrank (00195587) Jan. 2017 Ersatzteilliste
PDF
ET65 RITMO XL 400 V: Schaltschrank (00186412) Jan. 2017 Ersatzteilliste
PDF
ET66 RITMO XL FC-230/400V: Schaltschrank (00197827) Dec. 2021 Ersatzteilliste
PDF
ET76 RITMO XL 230 V: Wasserarmatur (00199598) Apr. 2019 Ersatzteilliste
PDF
ET77 RITMO XL 230 V: Wasserarmatur 75 - 750 l/h (00235862) Apr. 2019 Ersatzteilliste
PDF
ET78 RITMO XL 400 V: Wasserarmatur (00199507) Aug. 2016 Ersatzteilliste
PDF
SP20 RITMO XL Jun. 2016 Sachkundigenprüfung
PDF

Technical data

  • RITMO XL FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    RITMO XL FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00197819
    without pressure booster pump
    Performance :

    Conveying output, max.:
    20 l/min

    Conveying distance up to:
    30 m for fillers
    15 m for plaster/grout

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 4 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 4 kW, 120 – 400 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK RITMO XL Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/stop and continuously variable speed control

    Dimensions :

    Filling height:
    850 – 1,010 mm

    Hopper volume:
    70 litres ~ 2.3 sacks (at 30 kg)

    Length/Width/Height:
    1,300/700/1,400 mm

    Total weight:
    224 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    External vibrator:
    Not included

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph, 50 Hz,
    0.5 kW, 200 l/min – max. 3.4 bar
    with automatic pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    3 x 2,5 mm², BLU 3-16 A | BLA 2-16 A – 25 m

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • RITMO XL FC-230/400V<br/>230/400 V, 1/3 Ph, 50 Hz  Produktbild

    RITMO XL FC-230/400V
    230/400 V, 1/3 Ph, 50 Hz

    Part no. :
    00197821
    without pressure booster pump
    Performance :

    Conveying output, max.:
    20 l/min

    Conveying distance up to:
    30 m for fillers
    15 m for plaster/grout

    Basic equipment :

    Connection value:
    230/400 V, 1/3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 120 – 400 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK RITMO XL Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/stop and continuously variable speed control in 230 volt operation

    Dimensions :

    Filling height:
    850 – 1,010 mm

    Hopper volume:
    70 litres ~ 2.3 sacks (at 30 kg)

    Length/Width/Height:
    1,300/700/1,400 mm

    Total weight:
    232 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    External vibrator:
    Not included

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph, 50 Hz,
    0.5 kW, 200 l/min – max. 3.4 bar
    with automatic pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    Adapter plug RED 5-32 A | BLU 2-16 A

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • RITMO XL<br>400 V, 3 Ph, 50 Hz Produktbild

    RITMO XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00186478
    with pressure booster pump
    Performance :

    Conveying output, max.:
    20 l/min

    Conveying distance up to:
    50 m for fillers
    30 m for plaster/grout

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK RITMO XL Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 wheels, 2 castors

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    850 – 1,010 mm

    Hopper volume:
    70 litres ~ 2.3 sacks (at 30 kg)

    Length/Width/Height:
    1,300/700/1,400 mm

    Total weight:
    224 kg

    Basic equipment package :

    Pump unit:
    TWISTER D 6–3 · 20 l/min · 30 bar

    Mortar hose:
    RONDO DN25 - 10 m

    External vibrator:
    Not included

    Water pump for pressure boosting:
    AV 700, 400 V, 3 Ph, 50 Hz, 0.5 kW

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP M-250-X0 handy, 400 V, 3 Ph,
    50 Hz, 0.9 kW, 250 l/min -
    max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more

Equipment / Accessories

Ausstattung

  • RITMO XL FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    RITMO XL FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00197819
    without pressure booster pump
    Basic equipment :

    • Pump drive 4 kW, 8– 400 rpm
    • Material hopper,
      Capacity 70 litres ~ 2.5 sacks (30 kg)
    • Filling height adjustable
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Rubber mixing zone, for easy cleaning, with adaptable flange for D-pump
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection DN12 (1/2") –
      Required operating pressure 2.5 bar
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Reduced initial current
    • Handy, compact and rollable
    • Easily broken down into three modules
    • Flexible mixing intensity thanks to two water inlets
    • Connections in the control box:
      GRE 2-16 | BLU 2-16 | H 4

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: 20 l/min, 25 bar,
      up to 30 m conveying distance with fillers
      up to 15 m conveying distance with plastering mortar
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN25 male part | Geka
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control
    • Connection cable 3 x 2.5 mm²,
      BLU 3-16 A | BLU 2-16 A – 25 m

    Show more
  • RITMO XL FC-230/400V<br>230/400 V, 1/3 Ph, 50 Hz Produktbild

    RITMO XL FC-230/400V
    230/400 V, 1/3 Ph, 50 Hz

    Part no. :
    00197821
    without pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Material hopper,
      Capacity 70 litres ~ 2.5 sacks (30 kg)
    • Filling height adjustable
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Rubber mixing tube for easy cleaning, with adaptable flange for D and R pump
      Note: Only in 400 V operation
      Scope of supply: Pressure flange and suction flange for D-pump
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection DN12 (1/2") –
      Required working pressure 2.5 bar
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
      Note: Only in 230 V operation
    • Powerful and reliable operation via standard power socket
    • Handy, compact and rollable
    • Easily broken down into three modules
    • Flexible mixing intensity thanks to two water inlets
    • Connections in the control box:
      BLU 2-16 | GRE 2-16

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: 20 l/min, 25 bar,
      up to 30 m conveying distance with fillers
      up to 15 m conveying distance with plastering mortar
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN25 male part | Geka
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control

    Show more
  • RITMO XL<br>400 V, 3 Ph, 50 Hz Produktbild

    RITMO XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00186478
    with pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Material hopper,
      Capacity 70 litres ~ 2.5 sacks (30 kg)
    • Filling height adjustable
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Rubber mixing tube for easy cleaning, with adaptable flange for D and R pump
      Note: Scope of supply: Suction and pressure flange for D-pump
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection DN12 (1/2") –
      Required working pressure 2.5 bar
    • High conveying output
    • Handy, compact and rollable
    • Easily broken down into three modules
    • Flexible mixing intensity thanks to two water inlets
    • Performance similar to G 4, however, reduced initial current (no star wheel)
    • Connections in the control box:
      RED 5-32 | RED 4-16 | RED 4-16 | H 4

    Basic equipment package :

    • Rotor D 6–3 / Stator TWISTER D 6–3
      Pump capacity: 20 l/min, 30 bar,
      up to 50 m conveying distance with fillers
      up to 30 m conveying distance with plastering mortar
    • Water pump as pressure booster pump
      AV 700, 400 V, 3 Ph, 50 Hz, 0.5 kW
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN25 male part | Geka
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP M-250-X0 handy,
      400 V, 3 Ph, 50 Hz, 0.9 kW,
      133 l/min with pressure control

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00109440

Description

Extension cable 3 x 4 mm², BLU 3-32 A – 25 m (230 V/1 Ph)

00109440 Bild
Part no.

00063340

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 25 m (230 V/3 Ph)

00063340 Bild
Part no.

00063341

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 50 m (230 V/3 Ph)

00063341 Bild
Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 3-16 A | BLU 2-16 A – 25 m
(230 V/1 Ph)

20423420 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

00021106

Description

RONDO DN35 – 4.4 m

00021106 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

00021105

Description

RONDO DN35 – 20 m

00021105 Bild
Part no.

00021123

Description

RONDO DN35 pouring hose – 13.3 m

00021123 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211601

Description

Air hose DN12 (1/2") Ewo | Geka – 15 m

20211601 Bild
Part no.

00077240

Description

Air hose DN9 (3/8") Ewo | Ewo - 5 m

00077240 Bild
Part no.

00008521

Description

Air hose DN9 (3/8") Ewo | Ewo - 16 m

00008521 Bild

Useful extras

Part no.
Description

00201870

Extension hopper – 140 litres
To increase the hopper volume

00201870 Bild
00207957

Cover for material hopper RITMO XL

00207957 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00414866

COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414866 Bild
00196221

COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.4 bar with pressure switch-off

00196221 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild

Video

Similar Products
