RITMO L smart The perfect entry-level machine for small to medium construction projects

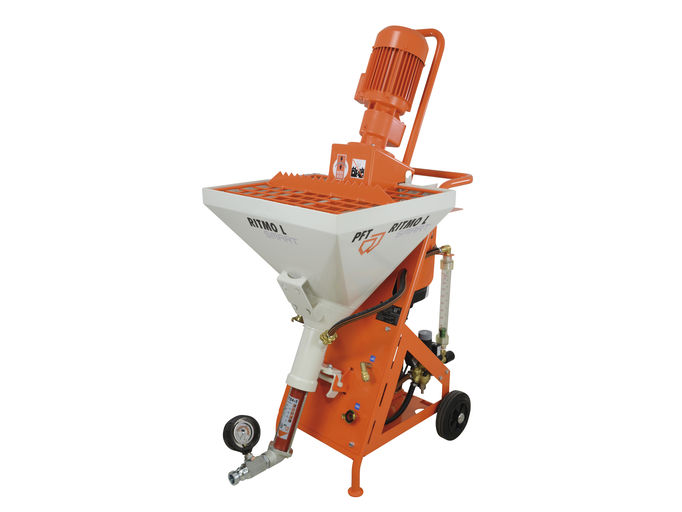

PFT RITMO L smart
  • RITMO L smart application

Mixing pumps - also known as plastering machines or mortar pumps - continuously and fully automatically process all machine-compatible ready-mix dry mortars based on gypsum, lime and cement with water. PFT offers several model ranges, including the RITMO family. The machine can be loaded with buckets or bagged material and can be used as a mixing pump or pump. As the RITMO L smart, the one-person mixing pump is particularly winning as an entry-level machine and professional for renovation and refurbishment work. Its strengths include in particular its low weight and compact design, which ensures easy machine handling on construction sites.

Discover the new addition PFT RITMO L smart

  • Mixing quality
  • Closed system

Details

Perfect machine for beginners

  • easy handling during setup, conversion, maintenance and cleaning

Easy transport

  • possible by only one person
  • fits in any estate car
  • easy dismountable into single modules
    - chassis
    - pump motor with protection grill
    - material hopper

Large loading area

  • encourages ergonomic work
  • easy handling
  • fast and easy cleaning

Flow-optimized outlet

  • ideal hose routing
  • prevents kinks and restriction
  • reduces risk of blockage
  • constant flow rate

External vibrator
Note: included with variant 00790473

  • improved material flow
  • reduces tunneling

Water pump
Note: included in variant 00790474

  • trouble-free operation of the machine at low water pressure

Control cabinet or cable set

  • latest technology
  • quickly operational again in the event of a malfunction

Mortar pressure gauge

  • increased security
  • easy to read the working pressure
  • monitoring of pump service life

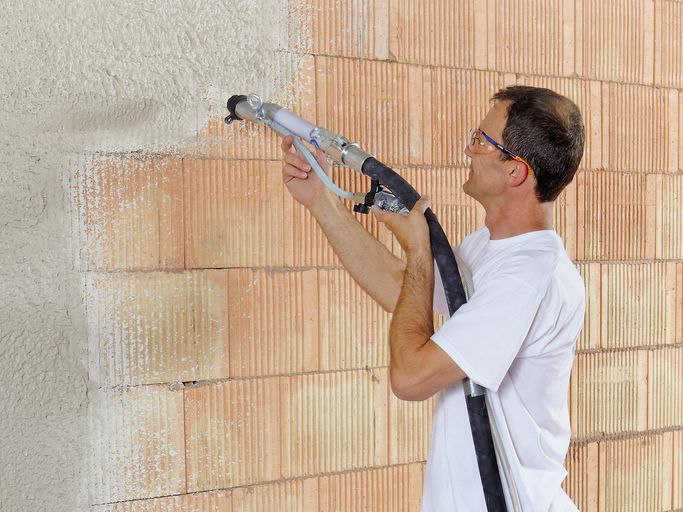

The compact 230V machine is ideal for renovation and refurbishment work and makes construction sites SMARTER.
Conserves forces and achieves professional results with ease.

  • Interior plaster
  • Finishing coat
  • Floor levelling compound
  • Filler
  • Fire protection mortar
  • Frame grouting mortar
  • Adhesive and reinforcing mortar

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS165_en Series brochure PFT RITMO L FC-230V smart Aug. 2023 Brochure
PDF
BAL183_en General safety instructions Mixing pump / Conveying pump Dec. 2021 Safety notice
PDF
ET114 RITMO L smart Aug. 2023 Spare parts list
PDF

Technical data

  • RITMO L FC-230 smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230 smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00725325
    [without vibrator, without water pump]
    Performance :

    Conveying output:
    2 - 14 l/min, continuously adjustable

    Conveying distance:
    up to 20 m

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.4 kW

    Drive:
    Pump motor: 2.4 kW, 74 - 492 rpm

    Mixing tube:
    Steel

    Mixing shaft:
    BIONIK RITMO machine plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 – 2.5 bar working pressure

    Operation and control:
    Start/stop
    and continuously variable speed control

    Cable set

    Dimensions :

    Filling height:
    930 mm

    Hopper volume:
    45 litres ~ 1.5 sacks (at 30 kg)

    Length/Width/Height:
    920/600/1,420 mm

    Total weight:
    ~ 95 kg

    Basic equipment package :

    Pump unit:
    B 4–2 · 14 l/min · 20 bar

    Material hose:
    RONDO DN25 – 10 m

    External vibrator:
    not included
    not retrofittable

    Water pump for pressure boosting:
    not included
    not retrofittable

    Water flow meter:
    75 – 750 l/h

    Air compressor:
    COMP R-80, 230 V, 1 Ph, 50 Hz,
    0.35 kW, 80 l/min

    Spraying gun:
    smartline DN25 S10 200 Ewo,
    air nozzle tube 4 mm

    Connection cable:
    not included

    Air hose:
    DN9 Ewo | Ewo – 16 m

    Show more
  • RITMO L FC-230V smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00790473
    with vibrator
    Performance :

    Conveying output:
    2 - 14 l/min, continuously adjustable

    Conveying distance:
    up to 20 m

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.4 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 2.4 kW, 74 - 492 rpm

    Mixing tube:
    Steel

    Mixing shaft:
    BIONIK RITMO machine plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 – 2.5 bar working pressure

    Operation and control:
    Start/stop
    and continuously variable speed control

    Control cabinet

    Dimensions :

    Filling height:
    930 mm

    Hopper volume:
    45 litres ~ 1.5 sacks (at 30 kg)

    Length/Width/Height:
    920/600/1,420 mm

    Total weight:
    ~ 106 kg

    Basic equipment package :

    Pump unit:
    B 4–2 · 14 l/min · 20 bar

    Material hose:
    RONDO DN25 – 10 m

    External vibrator:
    A5-0.3 – 1.2 m,
    230 V, 1 Ph, 50 Hz

    Water pump for pressure boosting:
    not included
    not retrofittable

    Water flow meter:
    75 – 750 l/h

    Air compressor:
    COMP R-80, 230 V, 1 Ph, 50 Hz,
    0.35 kW, 80 l/min

    Spraying gun:
    smartline DN25 S10 200 Ewo,
    air nozzle tube 4 mm

    Connection cable:
    not included

    Air hose:
    DN9 Ewo | Ewo – 16 m

    Show more
  • RITMO L FC-230V smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00790474
    with water pressure pump
    Performance :

    Conveying output:
    2 - 14 l/min, continuously adjustable

    Conveying distance:
    up to 20 m

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.4 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 2.4 kW, 74 - 492 rpm

    Mixing tube:
    Steel

    Mixing shaft:
    BIONIK RITMO machine plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 – 2.5 bar working pressure

    Operation and control:
    Start/stop
    and continuously variable speed control

    Control cabinet

    Dimensions :

    Filling height:
    930 mm

    Hopper volume:
    45 litres ~ 1.5 sacks (at 30 kg)

    Length/Width/Height:
    920/600/1,420 mm

    Total weight:
    ~ 110 kg

    Basic equipment package :

    Pump unit:
    B 4–2 · 14 l/min · 20 bar

    Material hose:
    RONDO DN25 – 10 m

    External vibrator:
    not included
    not retrofittable

    Water pump for pressure boosting:
    AVO 500, 230 V, 1 Ph, 50 Hz, 0.37 kW


    Water flow meter:
    75 – 750 l/h

    Air compressor:
    COMP R-80, 230 V, 1 Ph, 50 Hz,
    0.35 kW, 80 l/min

    Spraying gun:
    smartline DN25 S10 200 Ewo,
    air nozzle tube 4 mm

    Connection cable:
    not included

    Air hose:
    DN9 Ewo | Ewo – 16 m

    Show more

Equipment / Accessories

Equipment

  • RITMO L FC-230V smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00725325
    [without vibrator, without water pump]
    Basic equipment :

    • Pump drive 2.4 kW, 74 – 492 rpm
    • Capacity 45 litres
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Grout outlet DN25 male part with mortar pressure gauge
    • Mixing tube cleaner with cleaning shaft
    • Hauling bracket BIONIK for less wear and tear
    • Water connection DN12 – required working pressure 2.5 bar
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Easy handling in start-up, conversion, maintenance and cleaning
    • Easily broken down into individual modules
    • Flow-optimized discharge - prevents kinking and risk of plugging
    • Large discharge area - supports ergonomic working
    • Connections with cable set:
      BLU 2-16

    Basic equipment package :

    • Rotor B 4–2 / Stator B 4–2 mf
      Pump capacity: 14 l/min, 20 bar,
      up to 20 m conveyinf distance
    • Water flow meter 75 – 750 l/h
    • RONDO DN25 – 10 m
      hydraulic connection male part | female part
    • Air hose DN9 Ewo | Ewo - 16 m
    • Cleaner coupling for cleaning the
      material hose DN25 female part | Geka
    • Spraying gun smartline DN25 S10 200 Ewo,
      air nozzle tube 4 mm
    • Air compressor COMP R-80,
      230 V, 1 Ph, 50 Hz, 0.35 kW,
      80 l/min with pressure control

    Show more
  • RITMO L FC-230V smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00790473
    with vibrator
    Basic equipment :

    • Pump drive 2.4 kW, 74 – 492 rpm
    • Capacity 45 litres
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Grout outlet DN25 male part with mortar pressure gauge
    • Mixing tube cleaner with cleaning shaft
    • Hauling bracket BIONIK for less wear and tear
    • Water connection DN12 – required working pressure 2.5 bar
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Easy handling in start-up, conversion, maintenance and cleaning
    • Easily broken down into individual modules
    • Flow-optimized discharge - prevents kinking and risk of plugging
    • Large discharge area - supports ergonomic working
    • Connections with control cabinet:
      BLU 2-16 | H 4
    • Control voltage 42 volts, for highest operational safety
    • Prepared for remote control
    • Material hopper with external vibrator, reduces tunneling and improves material flow

    Basic equipment package :

    • Rotor B 4–2 / Stator B 4–2 mf
      Pump capacity: 14 l/min, 20 bar,
      up to 20 m conveyinf distance
    • Water flow meter 75 – 750 l/h
    • RONDO DN25 – 10 m
      hydraulic connection male part | female part
    • Air hose DN9 Ewo | Ewo - 16 m
    • Cleaner coupling for cleaning the
      material hose DN25 female part | Geka
    • Spraying gun smartline DN25 S10 200 Ewo,
      air nozzle tube 4 mm
    • Air compressor COMP R-80,
      230 V, 1 Ph, 50 Hz, 0.35 kW,
      80 l/min with pressure control
    • External vibrator A5-0,3 - 1.2 m,
      230 V, 1 Ph, 50 Hz

    Show more
  • RITMO L FC-230V smart<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V smart
    230 V, 1 Ph, 50 Hz

    Part no. :
    00790474
    with water pump
    Basic equipment :

    • Pump drive 2.4 kW, 74 – 492 rpm
    • Capacity 45 litres
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Grout outlet DN25 male part with mortar pressure gauge
    • Mixing tube cleaner with cleaning shaft
    • Hauling bracket BIONIK for less wear and tear
    • Water connection DN12 – required working pressure 2.5 bar
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Easy handling in start-up, conversion, maintenance and cleaning
    • Easily broken down into individual modules
    • Flow-optimized discharge - prevents kinking and risk of plugging
    • Large discharge area - supports ergonomic working
    • Connections with control cabinet:
      BLU 2-16 | H 4
    • Control voltage 42 volts, for highest operational safety
    • Prepared for remote control
    • Water pump enables trouble-free operation of the machine at low water pressure

    Basic equipment package :

      • Rotor B 4–2 / Stator B 4–2 mf
        Pump capacity: 14 l/min, 20 bar,
        up to 20 m conveyinf distance
      • Water flow meter 75 – 750 l/h
      • RONDO DN25 – 10 m
        hydraulic connection male part | female part
      • Air hose DN9 Ewo | Ewo - 16 m
      • Cleaner coupling for cleaning the
        material hose DN25 female part | Geka
      • Spraying gun smartline DN25 S10 200 Ewo,
        air nozzle tube 4 mm
      • Air compressor COMP R-80,
        230 V, 1 Ph, 50 Hz, 0.35 kW,
        80 l/min with pressure control
      • Water pump for pressure boosting
        AVO 500, 230 V, 1 Ph, 50 Hz, 0.37 kW

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 3-16 A | BLA 2-16 A - 25 m

20423420 Bild
Part no.

20211000

Description

Water hose/air hose DN13 Geka | Geka - 11 m

20211000 Bild

Useful extras

Part no.
Description

00612729

Extension hopper - 75 litres

00612729 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
00613021

Pump unit B 4-2 (W7) 25 male part for RITMO L complete

00613021 Bild
00578050

Mixing shaft BIONIK RITMO machine plaster, clockwise rotation

00578050 Bild

Similar Products
