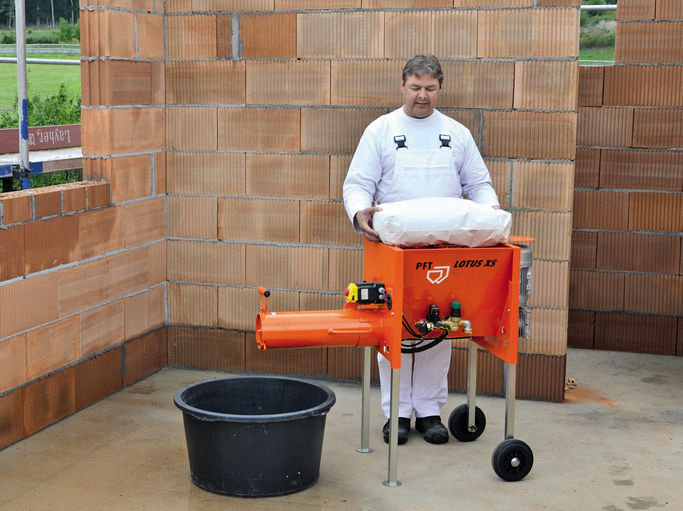

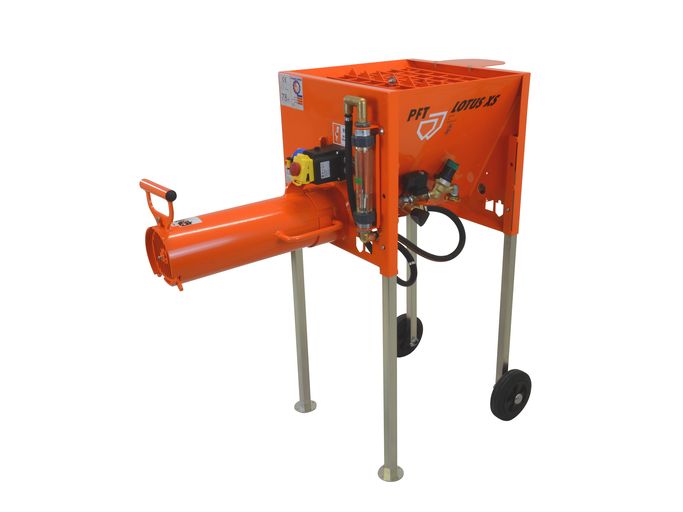

LOTUS XS The small, handy and inexpensive screw mixer

The horizontal PFT screw mixers of the LOTUS series (also called mortar mixers) continuously and fully automatically mix all ready-mix dry mortars based on lime and cement (e.g. masonry mortar, jointing mortar, levelling compounds, adhesive/reinforcing mortar). A special feature of the model is the metering and mixing shaft as a single unit without a central axis and with a rubber outlet fabricated from a single piece. The rotating dosing segment doubles the service life of the wear part. The LOTUS XS FC-230V version is a small, handy mixer for bagged goods with an AC connection. The innovative special mixing shaft ensures homogeneous mixing at low engine power. The optimally placed water inlet minimises caking and makes the mixer almost self-cleaning. The easy-to-operate machine mixes all lime and cement-based ready-mix dry mortars up to a maximum of 4 mm. The compact LOTUS XS FC-230V fits into any estate car.

Details

  • Uncomplicated conversion of the LOTUS XS from steel to rubber mixing tube and vice versa
  • Convenient transport - handle on the mixing tube
  • Simple and quick conversion from mortar to trowel version and vice versa
  • Optional water flow meter can be retrofitted
    Note: Already included in the scope of delivery for trowel versions
  • Removable base frame
  • Water fitting with pressure reducer
  • Easy and thorough cleaning and prevention of material caking due to rubber mixing zone
    Note: Concerns LOTUS XS r (art. no. 00754071 filler and 00754072 mortar)
  • Fits in any station wagon
  • Minimal maintenance and cleaning effort
  • Non-intrusive special mortar spout
  • Consistent mixing quality
  • Simple insertion of a delivery pump or mortar bucket underneath

The PFT LOTUS XS is suitable for all ready-mixed dry mortars up to 4 mm grain size and is our recommendation for all those who want to mix more efficiently and to a higher standard - in PFT quality, at a super price! In addition to the versions with steel mixing tube, machines with easy-to-clean rubber mixing tube are also available.

  • Tiling and jointing mortar
  • Light masonry and masonry mortar
  • Adhesive and reinforcing mortar
  • Levelling compounds
  • Textured and scratch coat
  • Reconstruction plaster
  • Finishing plaster

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS37_en PFT LOTUS XS Apr. 2023 Brochure
PDF
BAL185_en General safety instructions Horizontal screw mixer Dec. 2021 Safety notice
PDF
BAL115_en PFT LOTUS XS May 2024 Operating instructions
PDF
ET81 LOTUS XS Apr. 2024 Spare parts list
PDF

Technical data

  • LOTUS XS<br>for mortar application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS
    for mortar application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00246057
    Steel mixing tube
    Performance :

    Mixing capacity:
    20 l/min

    Maximum grain size:
    4 mm

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 1.3 kW

    Drive motor:
    1.3 kW, 280 rpm

    Mixing tube:
    Steel mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,010 – 1,150 mm, adjustable

    Hopper volume:
    50 litres ~ 1.6 sacks (at 30 kg)

    Outlet height:
    570 – 710 mm, adjustable

    Length/Width/Height:
    1,240/635/1,010 – 1,150 mm, height-adjustable

    Total weight:
    ~74 kg

    Basic equipment package :

    Water flow meter:
    Not included

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Not possible

    Show more
  • LOTUS XS r<br>for mortar application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS r
    for mortar application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754072
    Rubber mixing tube
    Performance :

    Mixing capacity:
    20 l/min

    Maximum grain size:
    4 mm

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 1.3 kW

    Drive motor:
    1.3 kW, 280 rpm

    Mixing tube:
    Rubber mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,010 – 1,150 mm, adjustable

    Hopper volume:
    50 litres ~ 1.6 sacks (at 30 kg)

    Outlet height:
    570 – 710 mm, adjustable

    Length/Width/Height:
    1,240/635/1,010 – 1,150 mm, height-adjustable

    Total weight:
    ~74 kg

    Basic equipment package :

    Water flow meter:
    Not included

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Not possible

    Show more
  • LOTUS XS<br>for spatula application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS
    for spatula application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754070
    Steel mixing tube
    Performance :

    Mixing capacity:
    20 l/min

    Maximum grain size:
    4 mm

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 1.3 kW

    Drive motor:
    1.3 kW, 280 rpm

    Mixing tube:
    Steel mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,010 – 1,150 mm, adjustable

    Hopper volume:
    50 litres ~ 1.6 sacks (at 30 kg)

    Outlet height:
    570 – 710 mm, adjustable

    Length/Width/Height:
    1,240/635/1,010 – 1,150 mm, height-adjustable

    Total weight:
    ~74 kg

    Basic equipment package :

    Water flow meter:
    100 - 1,000 l/h

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Not possible

    Show more
  • LOTUS XS r<br>for spatula application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS r
    for spatula application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754071
    Rubber mixing tube
    Performance :

    Mixing capacity:
    20 l/min

    Maximum grain size:
    4 mm

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 1.3 kW

    Drive motor:
    1.3 kW, 280 rpm

    Mixing tube:
    Steel mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,010 – 1,150 mm, adjustable

    Hopper volume:
    50 litres ~ 1.6 sacks (at 30 kg)

    Outlet height:
    570 – 710 mm, adjustable

    Length/Width/Height:
    1,240/635/1,010 – 1,150 mm, height-adjustable

    Total weight:
    ~74 kg

    Basic equipment package :

    Water flow meter:
    100 - 1,000 l/h

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Not possible

    Show more

Equipment / Accessories

Equipment

  • LOTUS XS<br>for mortar application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS
    for mortar application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00246057
    Steel mixing tube
    Basic equipment :

    • Drive motor 1.3 kW, 280 rpm
    • Bagged material mixer
    • Material hopper,
      Capacity 50 litres ~ 1.6 sacks (30 kg)
    • Filling height adjustable
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Powerful and reliable operation via standard power socket
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected special mortar outlet
    • Removable pedestal
    • Water manifold with pressure reducer
    • Easy transport – handle on mixing tube
    • Small, light, handy and compact

    Basic equipment package :

    • Dosing shaft 20 l/min

    Show more
  • LOTUS XS r<br>for mortar application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS r
    for mortar application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754072
    Rubber mixing tube
    Basic equipment :

    • Drive motor 1.3 kW, 280 rpm
    • Bagged material mixer
    • Material hopper,
      Capacity 50 litres ~ 1.6 sacks (30 kg)
    • Filling height adjustable
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Powerful and reliable operation via standard power socket
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected special mortar outlet
    • Removable pedestal
    • Water manifold with pressure reducer
    • Easy transport – handle on mixing tube
    • Small, light, handy and compact

    Basic equipment package :

    Dosing shaft 20 l/min

    Show more
  • LOTUS XS<br>for spatula application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS
    for spatula application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754070
    Steel mixing tube
    Basic equipment :

    • Drive motor 1.3 kW, 280 rpm
    • Bagged material mixer
    • Material hopper,
      Capacity 50 litres ~ 1.6 sacks (30 kg)
    • Filling height adjustable
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Water flow meter 100 - 1,000 l/h
    • Powerful and reliable operation via standard power socket
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected special mortar outlet
    • Removable pedestal
    • Water manifold with pressure reducer
    • Easy transport – handle on mixing tube
    • Small, light, handy and compact

    Basic equipment package :

    Dosing shaft 20 l/min

    Show more
  • LOTUS XS r<br>for spatula application<br>230 V, 1 Ph, 50 Hz Produktbild

    LOTUS XS r
    for spatula application
    230 V, 1 Ph, 50 Hz

    Part no. :
    00754071
    Rubber mixing tube
    Basic equipment :

    • Drive motor 1.3 kW, 280 rpm
    • Bagged material mixer
    • Material hopper,
      Capacity 50 litres ~ 1.6 sacks (30 kg)
    • Filling height adjustable
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Water flow meter 100 - 1,000 l/h
    • Powerful and reliable operation via standard power socket
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected special mortar outlet
    • Removable pedestal
    • Water manifold with pressure reducer
    • Easy transport – handle on mixing tube
    • Small, light, handy and compact

    Basic equipment package :

    Dosing shaft 20 l/min

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423400

Description

Extension cable 3 x 2.5 mm², BLA 2-16 A – 25 m (230 V/1 Ph)

20423400 Bild
Part no.

20212100

Description

Water hose/air hose DN19 (3/4") Geka | Geka – 40 m

20212100 Bild

Useful extras

Part no.
Description

00767145

Conversion kit for LOTUS XS from steel mixing tube to rubber mixing tube
for mortar applications

00767145 Bild
00767144

Conversion kit for filler application (steel mixing tube)
consists of:
- LOTUS XS mortar outlet with holes, spigot complete (part no. 00582429)
- LOTUS XS filler mixing shaft (part no. 00479411)
- Retrofit kit for water flow meter 100 - 1,000 l/h for LOTUS XS (part no. 00514763)

00767144 Bild
00767143

Conversion kit for mortar application (steel mixing tube)
consists of:
- Mortar outlet LOTUS XS with holes, complete (part no 00448116)
- Mischwelle LOTUS XS (part no. 00246194)

00767143 Bild
