Water pump For a constant water supply

Water pump
  • Water pump application
  • Functional principle water pumps

The water pump delivers the water to the mixing pump on the construction site. PFT has various models in its range that are designed as suction or pressure booster pumps. Water can be pumped directly out of a barrel using the AV-series suction pumps. The pressure booster pumps of the AVP/AVO series are used when it is necessary to cover long distances on the construction site or to maintain the power pressure at over 2.5 bar on the machine. Depending on the model, PFT water pumps can be operated with direct or alternating current. The conveying pressure of the powerful pumps is up to 5.5 bar. A maximum conveying output of 3,000 l/h is possible. The total conveying height is up to 49 m, depending on the height difference to be overcome.

Details

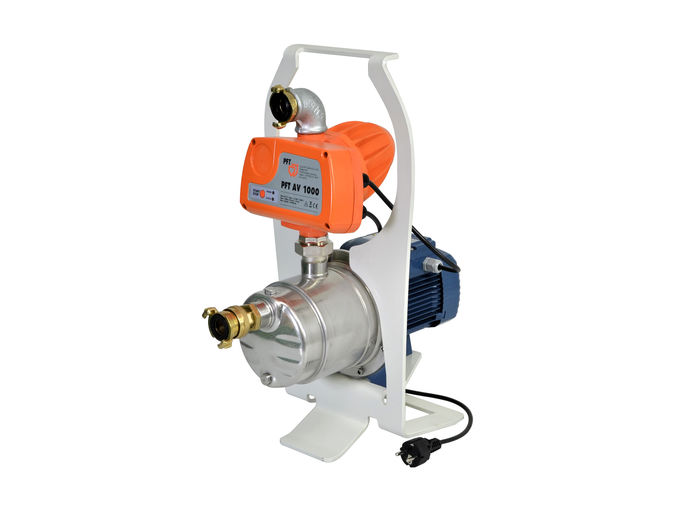

AV 1000 standalone
- No running empty thanks to dry run protection
- Automatic pressure switch-off when the machine is switched off
- High conveying outputs
- Stainless steel housing

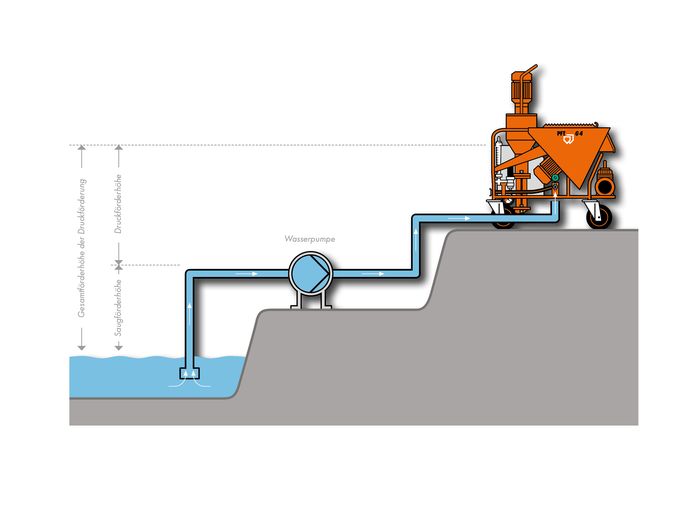

Water pump basics

Suction delivery height = suction lift
Describes the maximum bridgeable height difference between the water surface or water source and the pump.
For physical reasons it is limited to 8 m at sea level.

Total delivery height
Describes the possible delivery height from the water source to the highest point of the pipe and is calculated by reference to the pressure delivery height and the suction delivery height.

Conveying output = capacity
Describes the maximum quantity of water that can be delivered if the pump is positioned at the same level as the water source.
Conveying output and total delivery height are directly related and are the most important criteria in selecting the appropriate water pump.
In addition, friction losses in the pipe system have a further influence on the conveying output.

Line pressure = supply pressure
Describes the water pressure in the mains system.
This is very different and highly variable worldwide.
In Germany the mains pressure is approx. 3 bar.

Rule of thumb:
1 m water column ~ 0.1 bar.
This means that at 3 bar, a total delivery height of 30 m is achieved. However, friction losses again reduce this value.

Difference between suction pumps and pressure booster pumps
Pressure booster pumps are used to bridge long distances on construction sites, or to keep the mains pressure above 2.5 bar atthe machine.
Water can be pumped directly out of a barrel using a suction pump.
This is mainly used in areas with a poor water supply.

The following applies as a general rule:
The closer the water pump is to the water source, the longer the possible transport distance is.

AV 1000 standalone
- Ensure constant water supply to PFT machine technology.

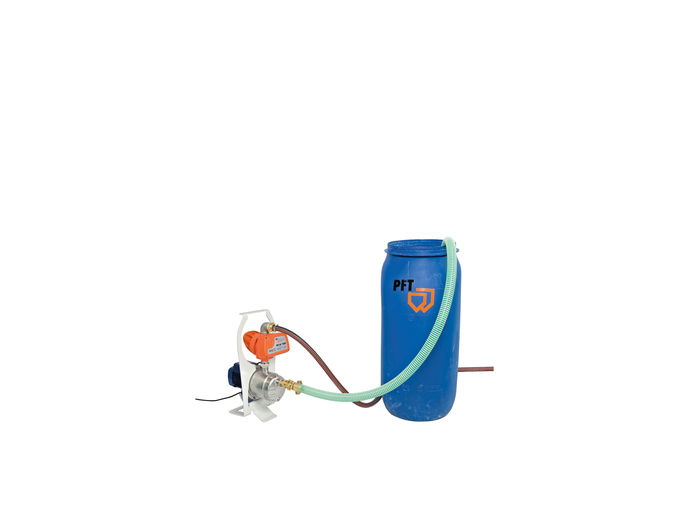

- Use, for example, in combination with a water barrel or in case of pressure fluctuations in the water pipe.
- A flow pressure of at least 2.5 bar with the machine in operation on the construction side is guaranteed by means of suction from the water reservoir.

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS22_de PFT Druckerhöhungspumpe AV 1000 standalone Dec. 2019 Prospekt
PDF
BAL153_de PFT Druckerhöhungspumpe AV 1000 standalone May 2021 Bedienungsanleitung
PDF
BAL154_de PFT Druckerhöhungspumpe SL / AV 1000 Sep. 2016 Bedienungsanleitung
PDF
BAL152_de PFT Druckerhöhungspumpe AV 6 Nov. 2001 Bedienungsanleitung
PDF
BAL151_de PFT Druckerhöhungspumpe AV 3 Oct. 2006 Bedienungsanleitung
PDF
ET22 G 4: Druckerhöhungspumpe AV 1000 1, 230V 60Hz (00517702) May 2020 Ersatzteilliste
PDF
ET23 G 4: Druckerhöhungspumpe AV 1000 1, 400 V (00493481) May 2020 Ersatzteilliste
PDF
ET24 G 4: Druckerhöhungspumpe AV 1000, 400 V (00240280) May 2020 Ersatzteilliste
PDF
ET25 G 4: Druckerhöhungspumpe AVO 500, 230 V (00260662) May 2020 Ersatzteilliste
PDF
ET26 G 4: Druckerhöhungspumpe AVO 500, 400 V (00257378) May 2020 Ersatzteilliste
PDF

Technical data

  • AV 1000 standalone<br>230 V, 1 Ph, 50 Hz Produktbild

    AV 1000 standalone
    230 V, 1 Ph, 50 Hz

    Part no. :
    00493686
    Stand-alone
    Performance :

    Max. conveying pressure:
    5.5 bar

    Max. conveying output:
    3,000 l/h

    Max. suction delivery height:
    7 m

    Total max. delivery height:
    49 m

    Core focus of application:
    Priming pump

    Strengths and benefits:
    - Stainless steel design
    - Pressure switch-off
    - Flow meter
    - Dry run protection

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.6 kW

    Drive motor:
    0.6 kW

    Pedestal:
    Included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically via integrated variable pressure control

    Show more
  • AV 1000<br>400 V, 3 Ph, 50 Hz Produktbild

    AV 1000
    400 V, 3 Ph, 50 Hz

    Part no. :
    00492679
    Stand-alone
    Performance :

    Max. conveying pressure:
    5.5 bar

    Max. conveying output:
    3,000 l/h

    Max. suction delivery height:
    7 m

    Total max. delivery height:
    49 m

    Core focus of application:
    Priming pump

    Strengths and benefits:
    - Stainless steel design



    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.6 kW

    Drive motor:
    0.6 kW

    Pedestal:
    Included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AV 1000<br>230 V, 1 Ph, 50 Hz Produktbild

    AV 1000
    230 V, 1 Ph, 50 Hz

    Part no. :
    00497368
    Stand-alone
    Performance :

    Max. conveying pressure:
    5.5 bar

    Max. conveying output:
    3,000 l/h

    Max. suction delivery height:
    7 m

    Total max. delivery height:
    49 m

    Core focus of application:
    Priming pump

    Strengths and benefits:
    - Stainless steel design



    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.6 kW

    Drive motor:
    0.6 kW

    Pedestal:
    Included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AV 1000<br>400 V, 3 Ph, 50 Hz Produktbild

    AV 1000
    400 V, 3 Ph, 50 Hz

    Part no. :
    00493481
    Retrofit kit
    Performance :

    Max. conveying pressure:
    5.5 bar

    Max. conveying output:
    3,000 l/h

    Max. suction delivery height:
    7 m

    Total max. delivery height:
    49 m

    Core focus of application:
    Priming pump

    Strengths and benefits:
    - Stainless steel design



    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.6 kW

    Drive motor:
    0.6 kW

    Pedestal:
    Included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AVP 500<br>400 V, 3 Ph, 50 Hz Produktbild

    AVP 500
    400 V, 3 Ph, 50 Hz

    Part no. :
    00128297
    Retrofit kit
    Performance :

    Max. conveying pressure:
    4.0 bar

    Max. conveying output:
    2,100 l/h

    Max. suction delivery height:
    5 m

    Total max. delivery height:
    42 m

    Core focus of application:
    Pressure booster pump

    Strengths and benefits:
    - Reduced weight



    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.37 kW

    Drive motor:
    0.37 kW

    Pedestal:
    Not included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AVO 500<br>400 V, 3 Ph, 50 Hz Produktbild

    AVO 500
    400 V, 3 Ph, 50 Hz

    Part no. :
    00111319
    Retrofit kit
    Performance :

    Max. conveying pressure:
    3.5 bar

    Max. conveying output:
    2,100 l/h

    Max. suction delivery height:
    5 m

    Total max. delivery height:
    33 m

    Core focus of application:
    Pressure booster pump

    Strengths and benefits:
    - Reduced weight



    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.37 kW

    Drive motor:
    0.37 kW

    Pedestal:
    Not included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AVP 500<br>400 V, 3 Ph, 50 Hz Produktbild

    AVP 500
    400 V, 3 Ph, 50 Hz

    Part no. :
    00257378
    Retrofit kit
    Performance :

    Max. conveying pressure:
    3.5 bar

    Max. conveying output:
    2,100 l/h

    Max. suction delivery height:
    5 m

    Total max. delivery height:
    33 m

    Core focus of application:
    Pressure booster pump

    Strengths and benefits:
    - Reduced weight



    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.37 kW

    Drive motor:
    0.37 kW

    Pedestal:
    Not included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AV0 500<br>230 V, 1 Ph, 50 Hz Produktbild

    AV0 500
    230 V, 1 Ph, 50 Hz

    Part no. :
    00287846
    Retrofit kit
    Performance :

    Max. conveying pressure:
    4.0 bar

    Max. conveying output:
    2,100 l/h

    Max. suction delivery height:
    5 m

    Total max. delivery height:
    38 m

    Core focus of application:
    Pressure booster pump

    Strengths and benefits:
    - Reduced weight
    - Powerful action with power from standard socket


    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.37 kW

    Drive motor:
    0.37 kW

    Pedestal:
    Not included

    Water connection:
    Geka DN25 (1")

    Operation and control:
    Start/stop automatically regulated via machine control

    Show more
  • AVO 500<br> 230 V, 1 Ph, 50 Hz  Produktbild

    AVO 500
    230 V, 1 Ph, 50 Hz

    Part no. :
    00260662
    Retrofit kit
    Performance :

    Max. conveying pressure:
    4.0 bar

    Max. conveying output:
    2,100 l/h

    Max. suction delivery height:
    5 m

    Total max. delivery height:
    35 m

    Core focus of application:
    Pressure booster pump

    Strengths and benefits:
    - Reduced weight
    - Powerful action with power from standard socket


    Show more

Equipment / Accessories

Useful extras

Part no.
Description

00136619

Water hose Geka | Geka – 2 m
including suction strainer with filter screen
Note: Suitable for AV 1000 standalone and AV 1000
