ZP 3 M The flexible solution for major challenges

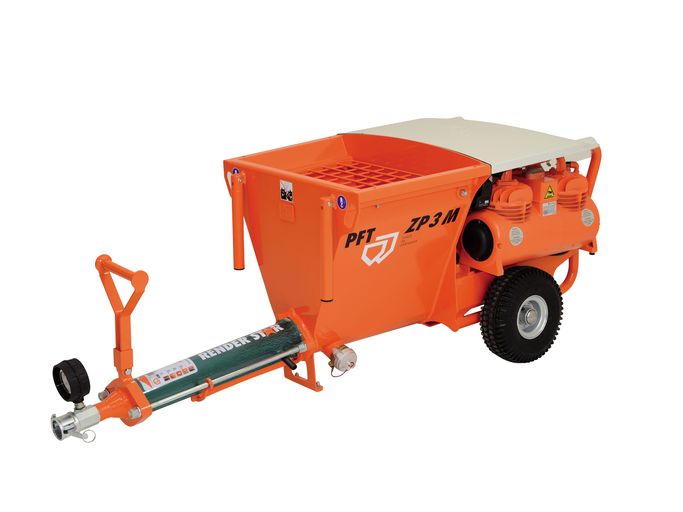

PFT ZP 3 M
  • PFT construction site ZP 3 M

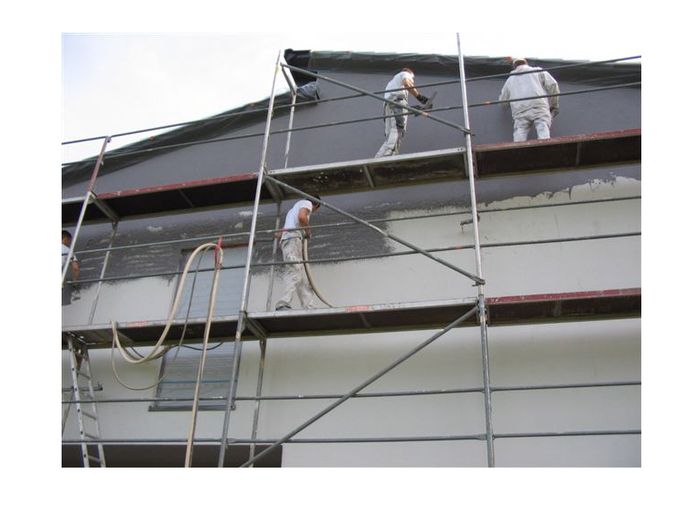

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. With the ZP 3-family, PFT satisfies a wide range of requirements. The delivery pump is characterised by its compact design, low weight and optimum delivery of almost all materials. The ZP3 M is used for processing building site mixtures, screed mortar and cement plasters. The conveying output can be steplessly adapted to the material requirements. The delivery pump has an integrated pressure control for the compressor and has a remote control for switching on and off.

  • Mixing quality
  • Open system
  • Hose length

Details

  • Wide tyres - good mobility
  • Integrated pressure control for compressor
  • Foldable protection grille with switch-off function
  • Two carrying handles on the material hopper as well as ergonomically formed tubular frame
  • Handle on the pressure flange
  • Integrated compressor console and hook
  • Optional: vibrating screen
  • Better cleaning of the machine and the cleaning hole through the C-coupling – hopper runs empty
  • Machine switch-off via remote switch
  • Fluidically optimised material hopper

With a flexible conveying output and wide tyres, the delivery pump can be used on almost all construction sites. Compact, robust and powerful.

  • Building site mixture
  • Screed mortar
  • Cement plaster

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS120_de PFT ZP 3 M FC-230V Oct. 2022 Prospekt
PDF
DS131_de PFT ZP 3 M FC-400V Jun. 2019 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL190_de PFT ZP 3 M Nov. 2019 Bedienungsanleitung
PDF
ET82 ZP 3 M Dec. 2021 Ersatzteilliste
PDF
SP40 ZP 3 M Apr. 2016 Sachkundigenprüfung
PDF

Technical data

  • ZP 3 M FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    ZP 3 M FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00542526
    Performance :

    Conveying output, max.:
    8 – 33 l/min

    Conveying distance up to:
    60 m in DN35

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 4 kW

    Drive:
    Pump motor: 4 kW, 120 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    640 mm

    Hopper volume:
    85 litres

    Length/Width/Height:
    1,800/600/670 mm

    Total weight:
    197 kg

    Basic equipment package :

    Pump unit:
    RENDER STAR · 33 l/min · 20 bar

    Mortar hose:
    RONDO DN35 - 10 m

    Reduction in the coupling:
    Not included

    Air compressor:
    COMP P-200, 230 V, 1 Ph, 50 Hz,
    0.5 kW, 200 l/min - max. 3.4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN35 S16 male part Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • ZP 3 M FC-400V<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 M FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00542527
    Performance :

    Conveying output, max.:
    8 – 33 l/min

    Conveying distance up to:
    60 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 4 kW

    Drive:
    Pump motor: 4 kW, 120 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    640 mm

    Hopper volume:
    85 litres

    Length/Width/Height:
    1,800/600/670 mm

    Total weight:
    197 kg

    Basic equipment package :

    Pump unit:
    RENDER STAR · 33 l/min · 20 bar

    Mortar hose:
    RONDO DN35 - 10 m

    Reduction in the coupling:
    Not included

    Air compressor:
    COMP M-250-X0 handy, 400 V, 3 Ph,
    50 Hz, 0.9 kW, 250 l/min – max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN35 S16 male part Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • ZP 3 M pole-changing<br/>400 V, 3 Ph, 50 Hz  Produktbild

    ZP 3 M pole-changing
    400 V, 3 Ph, 50 Hz

    Part no. :
    00542528
    Performance :

    Conveying output, max.:
    16 / 33 l/min

    Conveying distance up to:
    60 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 3.7/4 kW

    Drive:
    Pump motor: 3.7/4 kW, 106/215 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    640 mm

    Hopper volume:
    85 litres

    Length/Width/Height:
    1,800/600/670 mm

    Total weight:
    197 kg

    Basic equipment package :

    Pump unit:
    RENDER STAR · 16 / 33 l/min · 20 bar

    Mortar hose:
    RONDO DN35 - 10 m

    Reduction in the coupling:
    Not included

    Air compressor:
    COMP M-250-X0 handy, 400 V, 3 Ph,
    50 Hz, 0.9 kW, 250 l/min – max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN35 S16 male part Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more

Equipment / Accessories

Ausstattung

  • ZP 3 M FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    ZP 3 M FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00542526
    Basic equipment :

    • Drive motor 4 kW, 120 rpm
    • Pump capacity via potentiometer
      continuously adjustable
    • Material removal with mortar pressure gauge DN35 female part
    • Hopper volume 85 litres
    • Filling height 640 mm
    • Wide tyres - good mobility
    • Integrated pressure control for compressor
    • Foldable protection grille with switch-off function
    • Two carrying handles on the material hopper as well as ergonomically formed tubular frame
    • Handle on the pressure flange
    • Integrated compressor console and hook
    • Better cleaning of the machine and the cleaning hole through the C-coupling – hopper runs empty
    • Machine switch-off via remote switch
    • Fluidically optimised material hopper

    Basic equipment package :

    • Rotor RENDER STAR / Stator RENDER STAR
      Pump capacity: max. 33 l/min, 20 bar,
      up to 60 m conveying distance in DN35
    • RONDO DN35 hydraulic connection
      Male part | Female part – 10 m
    • Water hose/air hose DN12 (1/2")
      Geka I Geka – 11 m
    • Spraying gun DN35 S16 male part Geka
    • COMP P-200
      230 V, 1 Ph, 50 Hz, 0.5 kW, 200 l/min
      max. 3.4 bar with pressure switch-off

    Show more
  • ZP 3 M FC-400V<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 M FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00542527
    Basic equipment :

    • Drive motor 4 kW, 120 rpm
    • Pump capacity via potentiometer
      continuously adjustable
    • Material removal with mortar pressure gauge DN35 female part
    • Hopper volume 85 litres
    • Filling height 640 mm
    • Wide tyres - good mobility
    • Integrated pressure control for compressor
    • Foldable protection grille with switch-off function
    • Two carrying handles on the material hopper as well as ergonomically formed tubular frame
    • Handle on the pressure flange
    • Integrated compressor console and hook
    • Better cleaning of the machine and the cleaning hole through the C-coupling – hopper runs empty
    • Machine switch-off via remote switch
    • Fluidically optimised material hopper

    Basic equipment package :

    • Rotor RENDER STAR / Stator RENDER STAR
      Pump capacity: max. 33 l/min, 20 bar,
      up to 60 m conveying distance in DN35
    • RONDO DN35 hydraulic connection
      Male part | Female part – 10 m
    • Water hose/air hose DN12 (1/2")
      Geka I Geka – 11 m
    • Spraying gun DN35 S16 male part Geka
    • COMP M-250-X0 handy
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min
      max. 4 bar with pressure switch-off

    Show more
  • ZP 3 M pole-changing<br/>400 V, 3 Ph, 50 Hz  Produktbild

    ZP 3 M pole-changing
    400 V, 3 Ph, 50 Hz

    Part no. :
    00542528
    Basic equipment :

    • Drive motor 3.7/4 kW, 106/215 rpm
    • Pump capacity via potentiometer
      continuously adjustable
    • Material removal with mortar pressure gauge DN35 female part
    • Hopper volume 85 litres
    • Filling height 640 mm
    • Wide tyres - good mobility
    • Integrated pressure control for compressor
    • Foldable protection grille with switch-off function
    • Two carrying handles on the material hopper as well as ergonomically formed tubular frame
    • Handle on the pressure flange
    • Integrated compressor console and hook
    • Better cleaning of the machine and the cleaning hole through the C-coupling – hopper runs empty
    • Machine switch-off via remote switch
    • Fluidically optimised material hopper

    Basic equipment package :

    • Rotor RENDER STAR / Stator RENDER STAR
      Pump capacity: max. 16/ 33 l/min, 20 bar,
      up to 60 m conveying distance in DN35
    • RONDO DN35 hydraulic connection
      Male part | Female part – 10 m
    • Water hose/air hose DN12 (1/2")
      Geka I Geka – 11 m
    • Spraying gun DN35 S16 male part Geka
    • COMP M-250-X0 handy
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min
      max. 4 bar with pressure switch-off

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 2-16 A – 25 m (230 V/1 Ph)

20423420 Bild
Part no.

20423360

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 25 m (400 V/3 Ph)

20423360 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
00541174

Vibrating screen for retrofitting for ZP 3 M, 230 V

00541174 Bild
00530899

Vibrating screen for retrofitting for ZP 3 M, 400 V

00530899 Bild
