SILOMAT trailer The mobile gravity-fed conveying system from PFT

PFT SILOMAT trailer 105/145
  • PFT construction site SILOMAT trailer 100/145

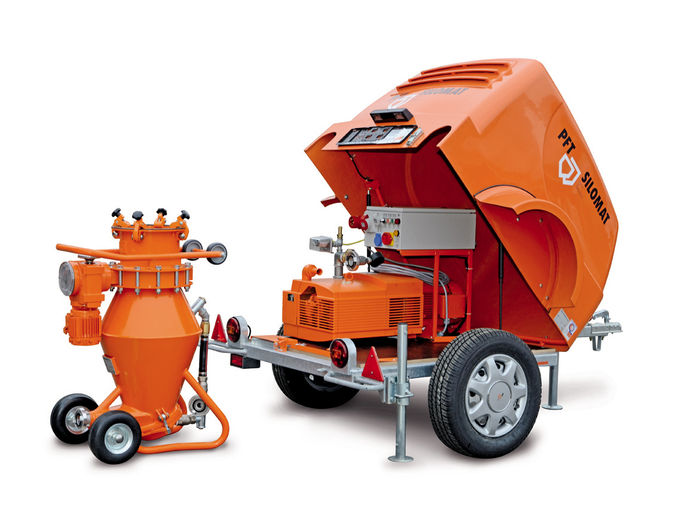

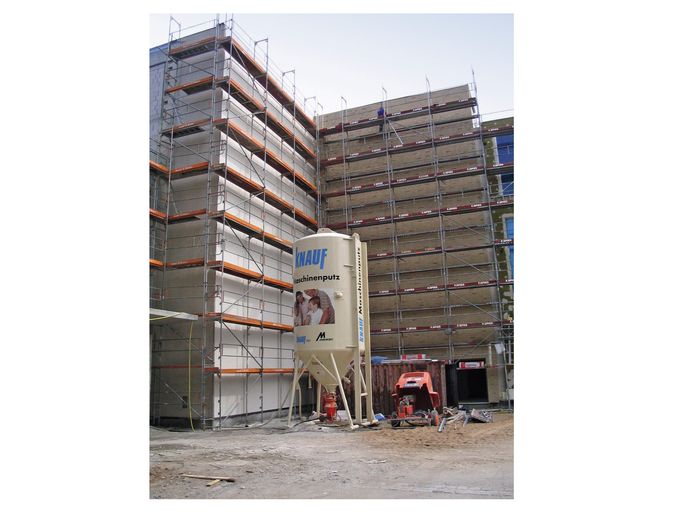

PFT's pneumatic SILOMAT conveying equipment is designed for fully automatic, dust-free material transport of the ready-mix dry mortar from the silo/container to the processing site. Various models are available to cover a wide range of requirements. The particularly powerful PFT SILOMAT trailer is a mobile gravity-flow system for long conveying distances. The SILOMAT trailer is mounted on a single-axle chassis with a car trailer coupling and significantly reduces noise on the construction site when the hood is closed. The separate, rollable conveying pot can be connected to any container / silo in a few simple steps. The system has a powerful rotary compressor whose motor has an output of 5.5 kW or 7.5 kW, depending on the version.

  • 42V control voltage
  • Hose length
  • Simple operation

Details

  • Transport by car trailer
  • Fluidiser membrane
  • Manually controllable bypass
  • Practical and robust for the construction site
  • Easy to maintain
  • Fully automatic
  • Independent of material
  • Minimal sound generation, possible with closed hood
  • Hood and coupling lockable
  • Optionally with HGV coupling
  • The massive advantage: Load-free transport of the conveying pot due to large rollers
  • Long-lasting
  • 3 bar closing pressure for the squeezer valve of the conveying block always available
  • Phase sequence as standard
  • Automatic switch-off

The PFT SILOMAT trailer (trailer version) conveys dry mortar fully automatically and dust-free to the mixing pump or screw mixer.

PFT SILOMAT trailer is available with a conveying pot or a pressure delivery block.

The PFT SILOMAT system saves:

  • Unloading, carrying and distributing bags on the construction site
  • Expensive work interruptions
  • Costs for paper bags, damaged bags and theft
  • Cleaning the construction site, the removal of sand and disposal of the bags

For all ready-mix dry mortars such as:

  • Machine gypsum plaster
  • Lime/gypsum plasters
  • Cement plasters
  • Lime plaster
  • Lime-cement plasters
  • Masonry mortar
  • Bulk goods
  • Aggregates
  • Powder material

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS53_de PFT SILOMAT trailer Apr. 2022 Prospekt
PDF
BAL184_de Allgemeine Sicherheitshinweise Förderanlagen Dec. 2021 Sicherheitshinweis
PDF
BAL10_de PFT SILOMAT trailer 145/105 May 2022 Bedienungsanleitung
PDF
ET89 SILOMAT trailer Dec. 2020 Ersatzteilliste
PDF
SP33 SILOMAT trailer Dec. 2020 Sachkundigenprüfung
PDF

Technical data

  • SILOMAT trailer 105<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trailer 105
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560805
    Performance :

    Conveying distance:
    100 m

    Conveying output:
    20 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 5.5 kW
    Max. pressure: 2.5 bar
    Air quantity: 105 Nm³/h

    Dimensions :

    Contents of conveying pot/block:
    55 litres

    Length/Width/Height:
    2,320/1,530/1,230 mm

    Height of conveying pot:
    980 mm

    Weight of conveying pot:
    87 kg

    Weight of rotary compressor including carrier element:
    323 kg

    Total weight:
    410 kg

    Show more
  • SILOMAT trailer 145<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trailer 145
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560806
    Performance :

    Conveying distance:
    140 m

    Conveying output:
    20 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Compressor:
    Power: 7.5 kW
    Max. pressure: 2.5 bar
    Air quantity: 145 Nm³/h

    Dimensions :

    Contents of conveying pot/block:
    55 litres

    Length/Width/Height:
    2,320/1,530/1,230 mm

    Height of conveying pot:
    980 mm

    Weight of conveying pot:
    87 kg

    Weight of rotary compressor including carrier element:
    323 kg

    Total weight:
    410 kg

    Show more

Equipment / Accessories

Ausstattung

  • SILOMAT trailer 105<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trailer 105
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560805
    Basic equipment :

    Conveying pot – rollable

    • Suitable for container/silo outlet flange
      Ø 250 mm
    • Capacity: 55 litres / weight: 87 kg / height: 980 mm
    • Shut-off flap with actuator and hand wheel
    • Easily replaceable gaskets
    • Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
    • Bypass manually controllable for stiff material and longer conveying distances
      Note: Affects the conveying output
    • Transport rollers for easy handling

    Rotary compressor
    on single-axle chassis

    • Rotary compressor with 5.5 kW
      Air quantity: 105 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Single-axle chassis, non-braked with car trailer coupling and 13-pin connecting plug

    Show more
  • SILOMAT trailer 145<br>400 V, 3 Ph, 50 Hz Produktbild

    SILOMAT trailer 145
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560806
    Basic equipment :

    Conveying pot – rollable

    • Suitable for container/silo outlet flange
      Ø 250 mm
    • Capacity: 55 litres / weight: 87 kg / height: 980 mm
    • Shut-off flap with actuator and hand wheel
    • Easily replaceable gaskets
    • Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
    • Bypass manually controllable for stiff material and longer conveying distances
      Note: Affects the conveying output
    • Transport rollers for easy handling

    Rotary compressor
    on single-axle chassis

    • Rotary compressor with 7.5 kW
      Air quantity: 145 Nm³/h
    • Operation-hour counter
    • Compressor as dry running water meter,
      no oil change required
    • High machine running times with high level of operating safety
    • Easy replacement of wear parts -
      also on site
    • Single-axle chassis, non-braked with car trailer coupling and 13-pin connecting plug

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m

20423900 Bild
Part no.

00473424

Description

Conveying hose - initial equipment – 73.3 m consisting of:

  • 3 x 3-layer rubber hose DN45 – 20 m
  • 1 x 3-layer rubber hose DN45 – 13.3 m
  • Hose holder with hook

00473424 Bild
Part no.

00464232

Description

Conveying hose of 3-layer rubber hose DN45 – 13.3 m C-coupling

00464232 Bild
Part no.

00464233

Description

Conveying hose of 3-layer rubber hose DN45 – 20 m C-coupling

00464233 Bild
Part no.

20652800

Description

Conveying hose of PVC textile hose DN46 – 12.5 m C-coupling

20652800 Bild
Part no.

20652900

Description

Conveying hose of PVC textile hose DN46 – 25 m C-coupling

20652900 Bild
Part no.

20650500

Description

Conveying hose - initial equipment – 75 m consisting of:

  • 3 x PVC fabric hose DN46 - 25 m
  • Hose holder with hook

20650500 Bild

Useful extras

Part no.
Description

00128606

External vibrator A10-2.67 – 8 m, 400 V, 3 Ph, 50 Hz

00128606 Bild
20654000

Hose holder with hook

20654000 Bild
20706600

Twin adapter 330/330 for connection of 2 SILOMAT conveying pots
Note: Intermediate piece required

20706600 Bild
20716000

Filling hopper for bagged goods
Note: Not for "SILOMAT trans plus bag"

20716000 Bild
00420664

Folding injection hood for G 4, RITMO XL

00420664 Bild
00453469

Extension hopper – 142 litres for G 4 for maximum utilisation

00453469 Bild
00001899

Adapter plug for trailer coupling, from 7-pin to 13-pin
