BOARDMASTER High-quality dry construction - simple, fast and efficient

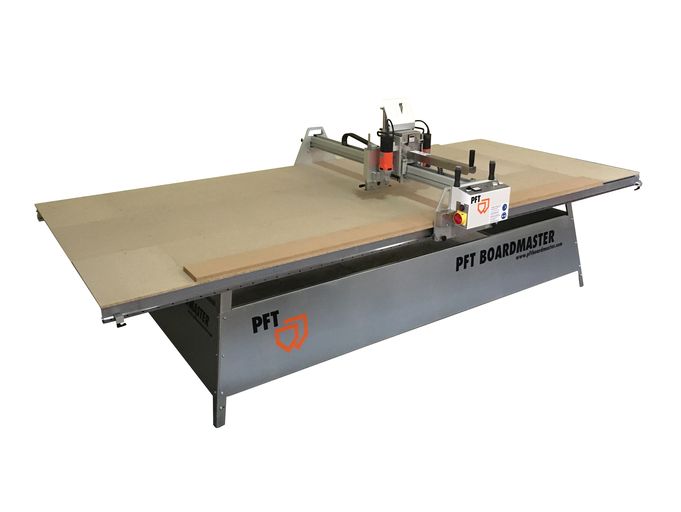

PFT BOARDMASTER cutting table

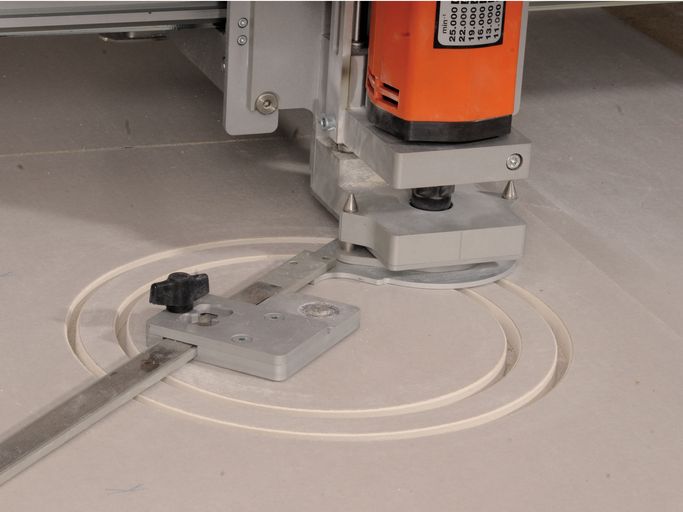

  • Circular shape application

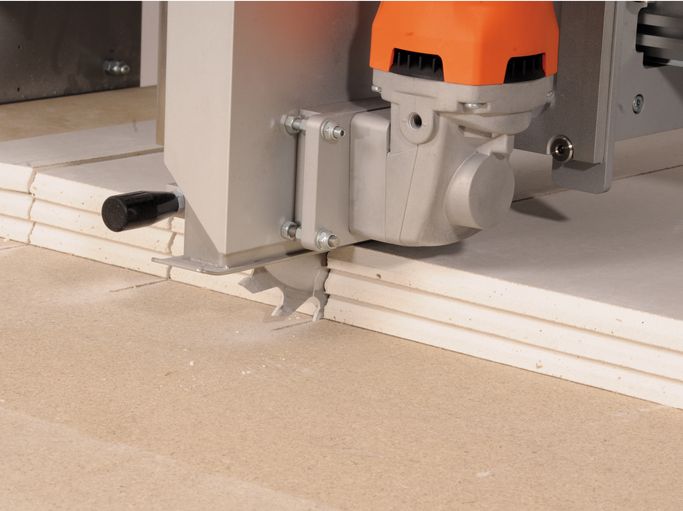

  • Strip cutting application

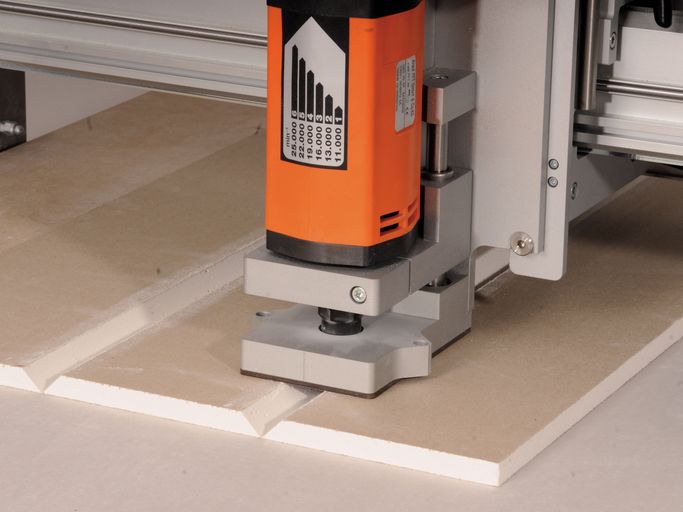

  • V-milling application

With the BOARDMASTER cutting table series, PFT offers a particularly simple, cost-saving and efficient solution for dry construction. The BOARDMASTER is suitable for processing a wide range of materials - from plasterboard to MDF. High-quality milling and sawing units enable the production of shaped parts and folding elements in almost any design. The integrated and patented extraction system ensures absolutely clean work. The BOARDMASTER can be extended with a variety of options.

  • Fast-time_mechanically_silver-01
  • exact_mechanically_silver-01
  • Cost-saving_mechanically_silver-01

Details

Highlights

  • Complete, modular system
  • Powerful units with quick-change system and integrated suction system
  • Cutting gantry on guide carriage with high-quality prism-linear guide enables the highest precision
  • Virtually dust-free work due to flow-optimised extraction system
  • Digital path measuring system in X and Y axis via magnetic tapes, prevents inaccuracies due to contamination
  • Electronic display
  • Electromagnetic locking at the touch of a button
  • Large machining area; almost all commercially available panels can be machined
  • Pneumatic system for lifting and lowering the units
  • Ergonomic and simple machine operation

  • Precise cutting and milling of numerous materials, e.g.
    - Plasterboard
    - MDF
    - Aluminium composite panels
    - Cement slabs
    and many more
  • Production of moulded parts such as light coves, claddings, casings, enclosures and much more
  • Inspection flaps
  • Window reveals
  • Stucco work
  • Fire protection strips and claddings

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL187_en PFT BOARDMASTER 2500 mobil/2500/3150/4000 Feb. 2022 Operating instructions
PDF
DS100_en PFT BOARDMASTER 2500 May 2021 Brochure
PDF
DS102_en PFT BOARDMASTER 3150 May 2021 Brochure
PDF
DS101_en PFT BOARDMASTER 4000 May 2021 Brochure
PDF
DS140_en PFT BOARDMASTER ToolGuide May 2021 Brochure
PDF

Technical data

  • BOARDMASTER 2500 Produktbild

    BOARDMASTER 2500

    Part no. :
    00631891
    Basic equipment :

    Connection value:
    3 kW, 230 V, 50/60 Hz

    Shaping and cutting table:
    - Lower table made of aluminium profiles and galvanised sheet steel
    - Cutting gantry, guide carriage and guide rails
    - Weight-optimised machine head with quick-change system for units
    - Digital distance measuring system with electronic display
    - Pneumatic lifting unit (without compressor)
    - Extraction system (without industrial vacuum cleaner)
    - Pre-installation for Laser PreView

    Maximum number of units:
    2

    Dimensions :

    Machining dimensions:
    One-sided 2,500/ 1,260/ 48 mm
    Two-sided 2,100/ 1,260/ 48 mm

    Dimensions:
    Layer 3,010/ 1,620/ 1,380 mm

    Weight:
    ~139 kg

    Show more
  • BOARDMASTER 2500 mobile Produktbild

    BOARDMASTER 2500 mobile

    Part no. :
    00631894
    Basic equipment :

    Connection value:
    3 kW, 230 V, 50/60 Hz

    Shaping and cutting table:
    - Lower table made of aluminium profiles and galvanised sheet steel
    - Cutting gantry, guide carriage and guide rails
    - Weight-optimised machine head with quick-change system for units
    - Digital distance measuring system with electronic display
    - Pneumatic lifting unit (without compressor)
    - Extraction system (without industrial vacuum cleaner)
    - Pre-installation for Laser PreView

    Maximum number of units:
    2

    Dimensions :

    Machining dimensions:
    One-sided 2,500/ 1,260/ 48 mm
    Two-sided 2,100/ 1,260/ 48 mm

    Dimensions:
    Layer 3,010/ 1,620/ 1,380 mm

    Weight:
    ~139 kg

    Show more
  • BOARDMASTER 3150 Produktbild

    BOARDMASTER 3150

    Part no. :
    00631892
    Basic equipment :

    Connection value:
    3 kW, 230 V, 50/60 Hz

    Shaping and cutting table:
    - Lower table made of aluminium profiles and galvanised sheet steel
    - Cutting gantry, guide carriage and guide rails
    - Weight-optimised machine head with quick-change system for units
    - Digital distance measuring system with electronic display
    - Pneumatic lifting unit (without compressor)
    - Extraction system (without industrial vacuum cleaner)
    - Pre-installation for Laser PreView

    Maximum number of units:
    2

    Dimensions :

    Machining dimensions:
    One-sided 3,150/ 1,260/ 48 mm
    Two-sided 2,750/ 1,260/ 48 mm

    Dimensions:
    Layer 3,680/ 1,620/ 1,380 mm

    Weight:
    ~153 kg

    Show more
  • BOARDMASTER 4000 Produktbild

    BOARDMASTER 4000

    Part no. :
    00631893
    Basic equipment :

    Connection value:
    3 kW, 230 V, 50/60 Hz

    Shaping and cutting table:
    - Lower table made of aluminium profiles and galvanised sheet steel
    - Cutting gantry, guide carriage and guide rails
    - Weight-optimised machine head with quick-change system for units
    - Digital distance measuring system with electronic display
    - Pneumatic lifting unit (without compressor)
    - Extraction system (without industrial vacuum cleaner)
    - Pre-installation for Laser PreView

    Maximum number of units:
    2

    Dimensions :

    Machining dimensions:
    One-sided 4,000/ 1,260/ 48 mm
    Two-sided 3,600/ 1,260/ 48 mm

    Dimensions:
    Layer 4,520/ 1,620/ 1,380 mm

    Weight:
    ~170 kg

    Show more

Equipment / Accessories

Equipment

  • BOARDMASTER 2500 Produktbild

    BOARDMASTER 2500

    Part no. :
    00631891
    Basic equipment :

    Shaping and cutting table:

    • Lower table made of aluminium profiles and galvanised sheet steel
    • Cutting gantry, guide carriage and guide rails
    • Weight-optimised machine head with quick-change system for units
    • Digital distance measuring system with
      electronic display
    • Pneumatic lifting unit
      (without compressor)
    • Extraction system (without industrial vacuum cleaner)
    • Pre-installation for Laser PreView

    Machine electrics
    Operating voltage 230 volt - 50/60 Hz
    (Voltage range 210 - 240 volts)

    Maximum machining dimensions
    Working length one-sided: 2,500 mm
    Working length two-sided: 2,100 mm
    Working width: 1,260 mm
    Working height: 48 mm

    Transport box
    Maximum dimensions
    Length: 3,200 mm
    Width: 780 mm
    Height: 800 mm

    Show more
  • BOARDMASTER 2500 mobile Produktbild

    BOARDMASTER 2500 mobile

    Part no. :
    00631894
    Basic equipment :

    Shaping and cutting table:

    • Lower table made of aluminium profiles and galvanised sheet steel
    • Cutting gantry, guide carriage and guide rails
    • Weight-optimised machine head with quick-change system for units
    • Digital distance measuring system with
      electronic display
    • Pneumatic lifting unit
      (without compressor)
    • Extraction system (without industrial vacuum cleaner)
    • Pre-installation for Laser PreView

    Machine electrics
    Operating voltage 230 volt - 50/60 Hz
    (Voltage range 210 - 240 volts)

    Maximum machining dimensions
    Working length one-sided: 2,500 mm
    Working length two-sided: 2,100 mm
    Working width: 1,260 mm
    Working height: 48 mm

    Transport box
    Maximum dimensions
    Length: 3,200 mm
    Width: 780 mm
    Height: 800 mm

    Show more
  • BOARDMASTER 3150 Produktbild

    BOARDMASTER 3150

    Part no. :
    00631892
    Basic equipment :

    Shaping and cutting table:

    • Lower table made of aluminium profiles and galvanised sheet steel
    • Cutting gantry, guide carriage and guide rails
    • Weight-optimised machine head with quick-change system for units
    • Digital distance measuring system with
      electronic display
    • Pneumatic lifting unit
      (without compressor)
    • Extraction system (without industrial vacuum cleaner)
    • Pre-installation for Laser PreView

    Machine electrics
    Operating voltage 230 volt - 50/60 Hz
    (Voltage range 210 - 240 volts)

    Maximum machining dimensions
    Working length one-sided: 3,100 mm
    Working length two-sided: 2,750 mm
    Working width: 1,260 mm
    Working height: 48 mm

    Transport box
    Maximum dimensions
    Length: 3,200 mm
    Width: 780 mm
    Height: 800 mm

    Show more
  • BOARDMASTER 4000 Produktbild

    BOARDMASTER 4000

    Part no. :
    00631893
    Basic equipment :

    Shaping and cutting table:

    • Lower table made of aluminium profiles and galvanised sheet steel
    • Cutting gantry, guide carriage and guide rails
    • Weight-optimised machine head with quick-change system for units
    • Digital distance measuring system with
      electronic display
    • Pneumatic lifting unit
      (without compressor)
    • Extraction system (without industrial vacuum cleaner)
    • Pre-installation for Laser PreView

    Machine electrics
    Operating voltage 230 volt - 50/60 Hz
    (Voltage range 210 - 240 volts)

    Maximum machining dimensions
    Working length one-sided: 4,000 mm
    Working length two-sided: 3,600 mm
    Working width: 1,260 mm
    Working height: 48 mm

    Transport box
    Maximum dimensions
    Length: 3,200 mm
    Width: 780 mm
    Height: 800 mm

    Show more
