DUSTCATCHER for RITMO L plus Dust free - clean and healthy work

DUSTCATCHER for material hopper RITMO L plus
  • DUSTCATCHER for extension hopper RITMO L plus

The formation of dust during mixing, milling and sawing is unavoidable on the construction site. PFT offers a highly efficient solution to this issue with the DUSTCATCHER. Dust emissions, which endanger health and machinery, can be reduced to almost zero in this way. The accessories are available for various PFT mixing pumps - including the RITMO L plus model. The main modules of the DUSTCATCHER are the rollable Class M dust remover with integrated filter bag and the easy-to-mount attachment for the material hopper of the mixing pump. A nozzle system is used to reject both the dust that is created when the bagged material is filled and floating dust. Filter separation efficiency is up to 99.9 %.

  • Construction site-tested, useful and handy
  • DUSTCATCHER: up to 80% less dust
  • Stay healthy
  • Work almost dust-free

Details

  • Suction nozzle
  • Simple assembly using hook and adjustment screws
  • Robust integrated sack opener
  • Dust remover: Dust class M - iPulse

The dust formation during the loading of bagged goods cannot be completely prevented, but we can significantly reduce it.
This is because health is our priority.
Dust-free work is...
- work that safeguards health
- work that is more efficient

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS137_de PFT DUSTCATCHER RITMO L plus Apr. 2023 Brochure
PDF

Technical data

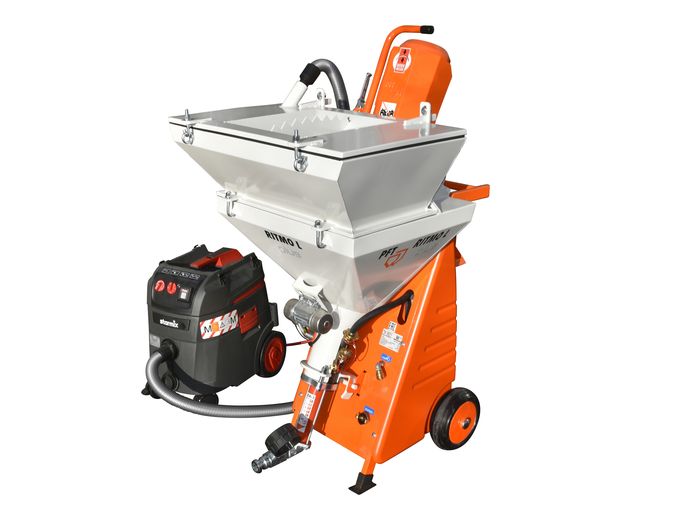

  • DUSTCATCHER for<br>Material hopper RITMO L plus  Produktbild

    DUSTCATCHER for
    Material hopper RITMO L plus

    Part no. :
    00611177
    for material hopper
    Performance :

    Power consumption:
    1,400 Watt

    Dimensions :

    Vacuum cleaner connection:
    37 mm

    Hopper volume for dust:
    25 litres

    Hood dimensions: W / L
    600 mm / 448 mm

    Opening dimensions: W / L
    444 mm / 191 mm

    Weight of hood:
    7.9 kg

    Show more

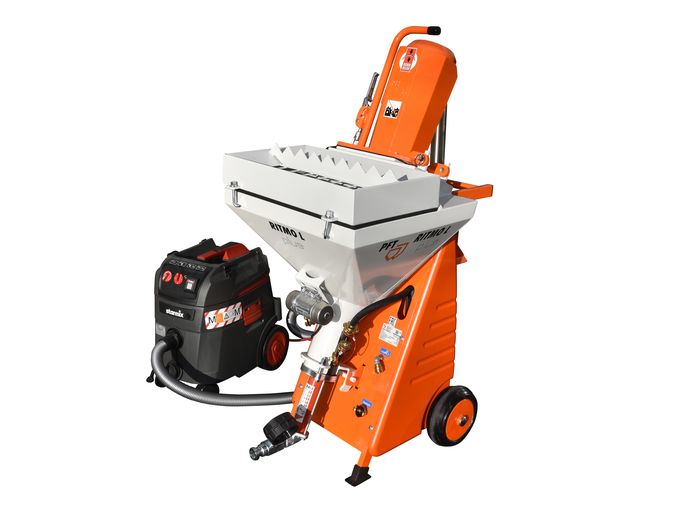

  • DUSTCATCHER for<br>Extension hopper RITMO L plus  Produktbild

    DUSTCATCHER for
    Extension hopper RITMO L plus

    Part no. :
    00619834
    for extension hopper
    Performance :

    Power consumption:
    1,400 Watt

    Basic equipment :

    Vacuum cleaner connection:
    37 mm

    Hopper volume for dust:
    25 litres

    Hood dimensions: W / L
    745 mm / 561 mm

    Opening dimensions: W / L
    238 / 243 mm

    Weight of hood:
    7.4 kg

    Show more

Equipment / Accessories

Equipment

  • DUSTCATCHER for<br>Material hopper RITMO L plus  Produktbild

    DUSTCATCHER for
    Material hopper RITMO L plus

    Part no. :
    00611177
    for material hopper
    Basic equipment :

    • Dust remover class M - iPulse
    • Supplementary set for dust remover M
    • Extension hopper DUSTCATCHER for material hopper RITMO L plus

    Show more
  • DUSTCATCHER for<br>Extension hopper RITMO L plus  Produktbild

    DUSTCATCHER for
    Extension hopper RITMO L plus

    Part no. :
    00619834
    for extension hopper
    Basic equipment :

    • Dust remover class M - iPulse
    • Supplementary set for dust remover M
    • Extension hopper DUSTCATCHER for extension hopper RITMO L plus

    Show more

Useful extras

Part no.
Description

00623276

Dust remover class M

00623276 Bild
00426894

Supplementary set for dust remover M
Comprising: 1 x handhold, 2 x suction tube, 1 x joint nozzle, 1 x dust nozzle

00426894 Bild
00612834

Extension hopper DUSTCATCHER for material hopper RITMO L plus

00612834 Bild
00619835

Extension hopper DUSTCATCHER for extension hopper RITMO L plus

00619835 Bild
