SWING M The smallest delivery pump - ideal for pasty materials

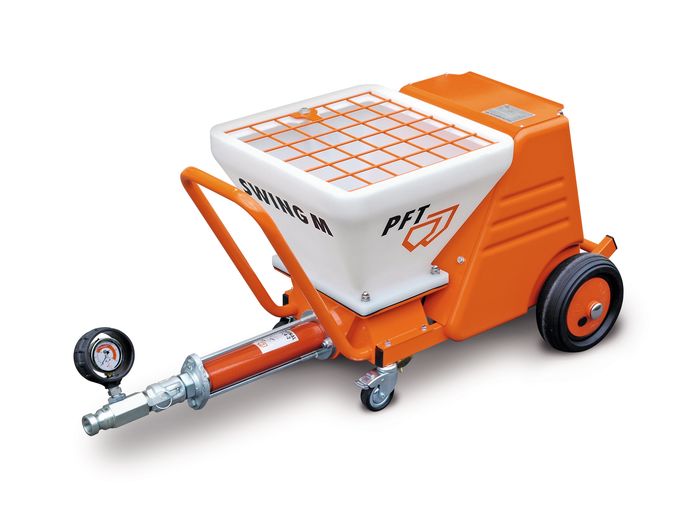

PFT SWING M FC-230V

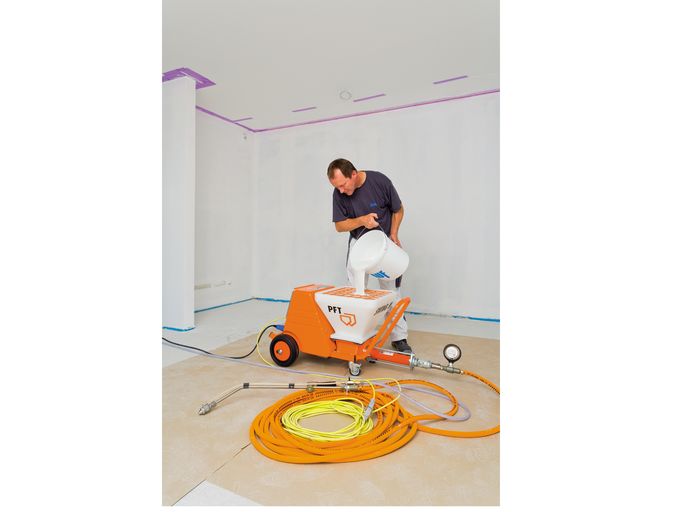

  • PFT construction site SWING M FC-230V
  • Application CF-Taper adapter system in drywall construction

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. With the SWING family, PFT satisfies a wide range of requirements. The PFT SWING M FC-230V is the smallest model in the series. The pump is operated with alternating current and has an electronic 1.5 kW direct drive. The conveying output is infinitely variable. Fluid, pumpable and solvent-free materials up to a maximum of 3 mm granulation can be pumped, grouted and sprayed. The compact PFT SWING M FC-230V fits into any estate car without disassembly.

  • Simple operation
  • 230V standard power socket
  • Easy cleaning

Details

  • Pump capacity can be easily adjusted with a potentiometer
  • Plastic material hopper – easy cleaning
  • Cleaning port in material hopper
  • Adjustable conveying output by changing the pump (B or C pump)
  • Small, light, handy and compact
  • Powerful and reliable operation via standard power socket
  • Quick cleaning and maintenance
  • Fits in any estate car without dismantling
  • Fits easily under any mixer
  • Optional: Electric remote control

The PFT SWING M with electronic, continuously adjustable 1.5 kW direct drive.
Fluid, pumpable and solvent-free materials up to a maximum of 3 mm granulation can be pumped, grouted and sprayed.

  • Lime-cement render < 3 mm
  • Adhesive and reinforcing mortar
  • Fine filler
  • Finishing coats
  • Dispersion paint
  • Concrete primer

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS08_de PFT SWING M FC-230V Oct. 2022 Prospekt
PDF
DS139_de PFT CF Adapter-System Apr. 2019 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL128_de PFT SWING M Oct. 2021 Bedienungsanleitung
PDF
SP37 SWING M May 2011 Sachkundigenprüfung
PDF

Technical data

  • SWING M FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    SWING M FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00151992
    Performance :

    Conveying output, max.:
    0.9 – 9 l/min

    Conveying distance up to:
    20 m in DN25

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 1.5 kW

    Drive:
    Pump motor: 1.5 kW, 10 – 204 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 wheels

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a potentiometer

    Dimensions :

    Filling height:
    500 mm

    Hopper volume:
    38 litres

    Length/Width/Height:
    1,100/460/500 mm

    Total weight:
    70 kg

    Basic equipment package :

    Pump unit:
    C 4–2 · 9 l/min · 20 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Ausstattung

  • SWING M FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    SWING M FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00151992
    Basic equipment :

    • Motor 1.5 kW, 10 – 204 rpm
    • Pump capacity can be easily adjusted with a potentiometer
    • Plastic material hopper –
      easy cleaning
    • Pump shaft made of Hardox
    • Grout outlet DN25 male part with mortar pressure gauge
    • Hopper volume 38 litres
    • Cleaning port in material hopper
    • Adjustable conveying output by changing the pump (B or C pump)
    • Small, light, handy and compact
    • Powerful and reliable operation via standard power socket

    Basic equipment package :

    • Rotor C 4–2 / Stator C 4–2
      Pump capacity: max. 9 l/min, 20 bar,
      up to 20 m conveying distance in DN25

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 3-16 A | BLA 2-16 A - 25 m

20423420 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00159323

Cover for material hopper

00159323 Bild
00657204

CF-Taper® - PFT adapter system
The solution for professional filling of drywalls.

Required accessories:
1x coupling 13 male part 1/ 2" internal thread (part no. 00086010)
1x hydraulic screw joint 1/2" (part no. on request)

00657204 Bild
