SWING L airless c The high-pressure pump for viscous and pasty material

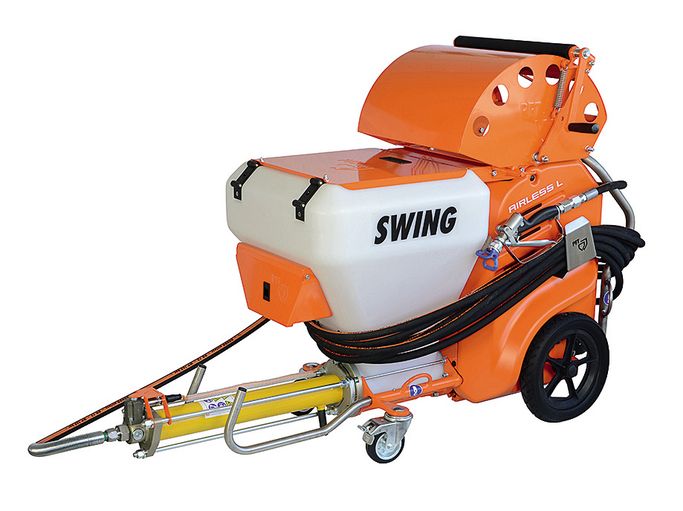

PFT SWING L airless

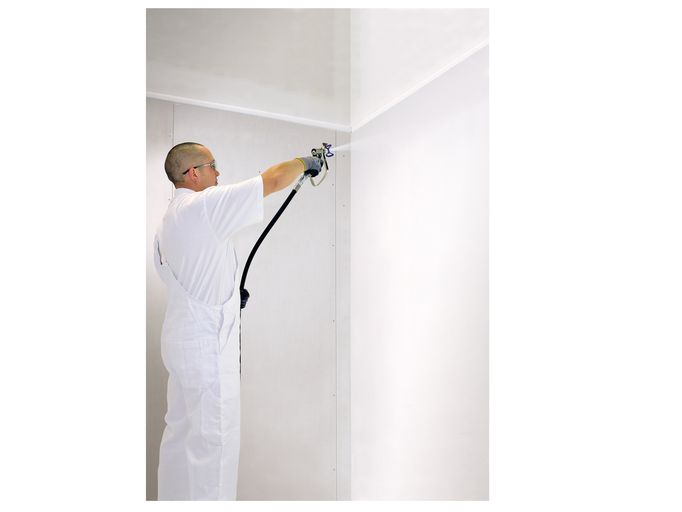

  • PFT construction site SWING L airless

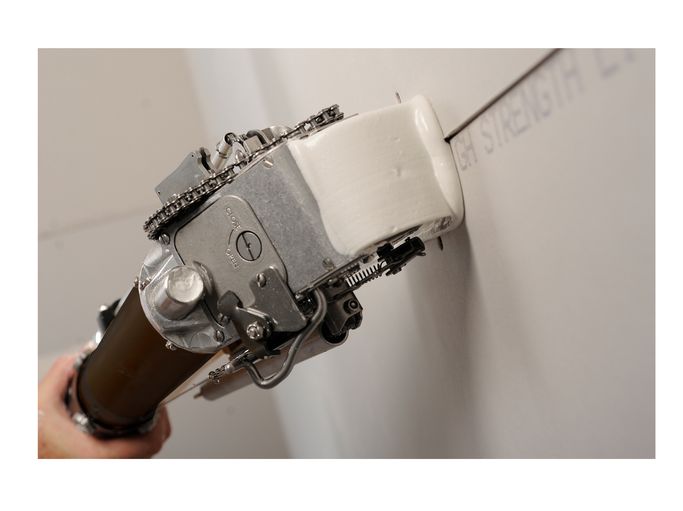

  • Application CF-Taper adapter system in drywall construction

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. With the SWING family, PFT satisfies a wide range of requirements. Thanks to RotaAirless technology, the high-pressure pump does not need any valves. The additional rolling effects improve the spray quality. The conveying output is infinitely variable. Fluid, pumpable and solvent-free materials up to a maximum of 3 mm granulation can be pumped, grouted and sprayed. Filling takes place from the bucket or a screw mixer. In combination with an air compressor and a spraying gun, the SWING L airless can also be used to apply plasters and paints. Available as 230V and 400V version.

DISCOVER NOW #SWINGVIBES PROMOTION

  • RotaAirless: Airless technology with spiral pumps
  • Simple operation
  • 42V control voltage
  • Easy cleaning

Details

  • Kink protection at the machine outlet
  • Can be continuously adjusted electronically
  • One-piece material hopper without indentions for hardly any material adhesion - quick and easy cleaning
  • Deep-set infiltration protection
  • Quick change of the pump on the construction site
  • Intuitive operation thanks to digital PFT control system(c)
  • Integrated hose holder
  • Material filter
  • Puncture-proof tyres
  • Valveless pump - RotaAirless technology:
    Improved spraying quality through the additional kneading effect in the pump
  • Automatic pressure regulation via digital control system with plain text error messages
  • Display with personalised access password as theft protection
  • Empty running safeguard – increases the service life of the pump
  • Conveying distance of up to 40 metres - flexible hose with kink protection at the machine outlet
  • Wide range of applications: Spray filler, granular material up to 3 mm, paint
  • Low noise, compact and powerful
  • Simple site handling
  • Robust and site-compatible construction

With little effort, the high-pressure pump can be converted into a delivery pump by changing the spiral pump.
Grain sizes of 6 mm, e.g. reinforcing mortar or finishing coats, can be optimally processed.

NOW: Easy operation thanks to clever PFT control system

  • Built-in operation-hour counter optimises service intervals
  • Comprehensible clear text error messages in various languages
  • Customisable login password as theft protection
  • Automatic pressure control oft he start and stop pressure for material output

  • Spray plaster
  • Granulated material up to 3 mm
  • Colour

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS119_en PFT SWING L FC-230V airless Mar. 2024 Brochure
PDF
DS115_en PFT SWING L FC-400V airless Mar. 2024 Brochure
PDF
BAL183_en General safety instructions Mixing pump / Conveying pump Dec. 2021 Safety notice
PDF
BAL129_en PFT SWING L FC-230V | FC-400V airless Feb. 2023 Operating instructions
PDF
DS139_en PFT CF adapter system Apr. 2019 Brochure
PDF

Technical data

  • SWING L FC-230V airless c<br>230 V, 1 Ph, 50 Hz Produktbild

    SWING L FC-230V airless c
    230 V, 1 Ph, 50 Hz

    Part no. :
    00803680
    without bag squeezer
    Performance :

    Conveying output, max.:
    0 – 6.5 l/min

    Conveying distance up to:
    20 m in DN12

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 3 kW

    Drive:
    Pump motor: 3 kW, 0 – 280 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    Sensor with digital display

    Wheels:
    2 castors, 2 wheels

    Water connection:
    Not included

    Operation and control:
    Working pressure range is adjustable

    Dimensions :

    Filling height:
    720 mm

    Hopper volume:
    70 litres

    Length/Width/Height:
    1,430/500/972 mm

    Total weight:
    105 kg

    Basic equipment package :

    Pump unit:
    306 airless · 6.5 l/min · 140 bar

    Mortar hose:
    RONDO airless DN12 – 20 m

    Reduction in the coupling:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    In Line Texspray – Nozzle 545

    Connection cable:
    3 x 1.5 mm², BLA 2-16 A – 5 m

    Water hose/air hose:
    Not included

    Show more
  • SWING L FC-230V airless c<br>230 V, 1 Ph, 50 Hz  Produktbild

    SWING L FC-230V airless c
    230 V, 1 Ph, 50 Hz

    Part no. :
    00803683
    with bag squeezer
    Performance :

    Conveying output, max.:
    0 – 6.5 l/min

    Conveying distance up to:
    20 m in DN12

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 3 kW

    Drive:
    Pump motor: 3 kW, 0 – 280 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    Sensor with digital display

    Wheels:
    2 castors, 2 wheels

    Water connection:
    Not included

    Operation and control:
    Working pressure range is adjustable

    Dimensions :

    Filling height:
    720 mm

    Hopper volume:
    70 litres

    Length/Width/Height:
    1,430/500/972 mm

    Total weight:
    105 kg

    Basic equipment package :

    Pump unit:
    306 airless · 6.5 l/min · 140 bar

    Mortar hose:
    RONDO airless DN12 – 20 m

    Reduction in the coupling:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    In Line Texspray – Nozzle 545

    Connection cable:
    3 x 1.5 mm², BLA 2-16 A – 5 m

    Water hose/air hose:
    Not included

    Show more
  • SWING L FC-400V airless c<br/>400 V, 3 Ph, 50 Hz  Produktbild

    SWING L FC-400V airless c
    400 V, 3 Ph, 50 Hz

    Part no. :
    00803681
    without bag squeezer
    Performance :

    Conveying output, max.:
    0 – 8.5 l/min

    Conveying distance up to:
    40 m in DN12

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 4 kW

    Drive:
    Pump motor: 4 kW, 0 – 320 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    Sensor with digital display

    Wheels:
    2 castors, 2 wheels

    Water connection:
    Not included

    Operation and control:
    Working pressure range is adjustable

    Dimensions :

    Filling height:
    720 mm

    Hopper volume:
    70 litres

    Length/Width/Height:
    1,430/500/972 mm

    Total weight:
    115 kg

    Basic equipment package :

    Pump unit:
    306 airless · 8.5 l/min · 140 bar

    Mortar hose:
    RONDO airless DN12 – 40 m

    Reduction in the coupling:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    In Line Texspray – Nozzle 545

    Connection plug:
    RED 5-16 A

    Water hose/air hose:
    Not included

    Show more
  • SWING L FC-400V airless c<br/>400 V, 3 Ph, 50 Hz  Produktbild

    SWING L FC-400V airless c
    400 V, 3 Ph, 50 Hz

    Part no. :
    00803682
    with bag squeezer
    Performance :

    Conveying output, max.:
    0 – 8.5 l/min

    Conveying distance up to:
    40 m in DN12

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 4 kW

    Drive:
    Pump motor: 4 kW, 0 – 320 rpm

    Material hopper:
    Plastic

    Grout outlet with mortar pressure gauge:
    Sensor with digital display

    Wheels:
    2 castors, 2 wheels

    Water connection:
    Not included

    Operation and control:
    Working pressure range is adjustable

    Dimensions :

    Filling height:
    720 mm

    Hopper volume:
    70 litres

    Length/Width/Height:
    1,430/500/972 mm

    Total weight:
    115 kg

    Basic equipment package :

    Pump unit:
    306 airless · 8.5 l/min · 140 bar

    Mortar hose:
    RONDO airless DN12 – 40 m

    Reduction in the coupling:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    In Line Texspray – Nozzle 545

    Connection plug:
    RED 5-16 A

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Equipment

  • SWING L FC-230V airless c<br>230 V, 1 Ph, 50 Hz Produktbild

    SWING L FC-230V airless c
    230 V, 1 Ph, 50 Hz

    Part no. :
    00803681
    without bag squeezer
    Basic equipment :

    • Drive motor 3 kW, 0 – 280 rpm
    • Pump capacity via potentiometer
      Infinitely variable up to max. 6.5 litres
    • One-piece plastic material hopper -
      easy cleaning
    • Pressure flange with electronic
      mortar pressure monitoring via display
    • Automatic pressure regulation via digital
      control system with plain text error messages
    • Hopper volume 70 litres
    • Airless work with rotor/stator -
      without additional compressor
    • Wearing parts can be changed directly on
      the construction site without a technician -
      No lengthy downtimes |
      "Change and go"
    • Kink protection at the machine outlet
    • Robust machine technology suitable for
      a wide range of materials
      - Paint
      - Spraying spatula
      - Grainy material
      Note: Not with "Stator airless 306"
    • Handy and compact
    • Powerful and reliable operation via standard power socket
    • Less noise emission
    • No wear on the pressure flange
    • Material filter in the pressure flange,
      can be changed via bypass without disassembly
    • Tool box including basic accessories
    • Empty running safeguard – increases the service life of the pump

    Basic equipment package :

    • Rotor 306 airless / Stator 306 airless
      Pump capacity: 6.5 l/min, 140 bar,
      up to 20 m conveying distance in DN12
    • RONDO airless DN12 – 40 m
    • Spray gun In Line Texspray
    • Spray nozzle 545
      Note: Spray nozzle corresponds to "RAC X" type
    • Connection cable 3 x 1.5 mm², BLA 2-16 A – 5 m

    Show more
  • SWING L FC-230V airless c<br>230 V, 1 Ph, 50 Hz Produktbild

    SWING L FC-230V airless c
    230 V, 1 Ph, 50 Hz

    Part no. :
    00803683
    with bag squeezer
    Basic equipment :

    • Drive motor 3 kW, 0 – 280 rpm
    • Pump capacity via potentiometer
      Infinitely variable up to max. 6.5 litres
    • One-piece plastic material hopper -
      easy cleaning
    • Pressure flange with electronic
      mortar pressure monitoring via display
    • Automatic pressure regulation via digital
      control system with plain text error messages
    • Hopper volume 70 litres
    • Airless work with rotor/stator -
      without additional compressor
    • Wearing parts can be changed directly on
      the construction site without a technician -
      No lengthy downtimes |
      "Change and go"
    • Kink protection at the machine outlet
    • Robust machine technology suitable for
      a wide range of materials
      - Paint
      - Spraying spatula
      - Grainy material
      Note: Not with "Stator airless 306"
    • Handy and compact
    • Powerful and reliable operation via standard power socket
    • Less noise emission
    • No wear on the pressure flange
    • Material filter in the pressure flange,
      can be changed via bypass without disassembly
    • Tool box including basic accessories
    • Empty running safeguard – increases the service life of the pump

    Basic equipment package :

    • Rotor 306 airless / Stator 306 airless
      Pump capacity: 6.5 l/min, 140 bar,
      up to 20 m conveying distance in DN12
    • RONDO airless DN12 – 40 m
    • Spray gun In Line Texspray
    • Spray nozzle 545
      Note: Spray nozzle corresponds to "RAC X" type
    • Connection cable 3 x 1.5 mm², BLA 2-16 A – 5 m
    • Bag squeezer SWING airless

    Show more
  • SWING L FC-400V airless c<br/>400 V, 3 Ph, 50 Hz  Produktbild

    SWING L FC-400V airless c
    400 V, 3 Ph, 50 Hz

    Part no. :
    00803681
    without bag squeezer
    Basic equipment :

    • Drive motor 4 kW, 0 – 320 rpm
    • Pump capacity via potentiometer
      Infinitely variable up to max. 8.5 litres
    • One-piece plastic material hopper -
      easy cleaning
    • Pressure flange with electronic
      mortar pressure monitoring via display
    • Automatic pressure regulation via digital
      control system with plain text error messages
    • Hopper volume 70 litres
    • Airless work with rotor/stator -
      without additional compressor
    • Wearing parts can be changed directly on the
      construction site without a technician -
      No lengthy downtimes |
      "Change and go"
    • Kink protection at the machine outlet
    • Robust machine technology suitable for
      a wide range of materials
      - Paint
      - Spraying spatula
      - Grainy material
      Note: Not with "Stator airless 306"
    • Handy and compact
    • Powerful and reliable operation via standard power socket
    • Less noise emission
    • No wear on the pressure flange
    • Material filter in the pressure flange,
      can be changed via bypass without disassembly
    • Tool box including basic accessories
    • Empty running safeguard – increases the service life of the pump

    Basic equipment package :

    • Rotor 306 airless / Stator 306 airless
      Pump capacity: max. 8.5 l/min, 140 bar,
      up to 40 m conveying distance in DN12
    • RONDO airless DN12 – 40 m
    • Spray gun In Line Texspray
    • Spray nozzle 545
      Note: Spray nozzle corresponds to "RAC X" type
    • Connecting plug RED 5-16 A

    Show more
  • SWING L FC-400V airless c<br/>400 V, 3 Ph, 50 Hz  Produktbild

    SWING L FC-400V airless c
    400 V, 3 Ph, 50 Hz

    Part no. :
    00803682
    with bag squeezer
    Basic equipment :

    • Drive motor 4 kW, 0 – 320 rpm
    • Pump capacity via potentiometer
      Infinitely variable up to max. 8.5 litres
    • One-piece plastic material hopper -
      easy cleaning
    • Pressure flange with electronic
      mortar pressure monitoring via display
    • Automatic pressure regulation via digital
      control system with plain text error messages
    • Hopper volume 70 litres
    • Airless work with rotor/stator -
      without additional compressor
    • Wearing parts can be changed directly on the
      construction site without a technician -
      No lengthy downtimes |
      "Change and go"
    • Kink protection at the machine outlet
    • Robust machine technology suitable for
      a wide range of materials
      - Paint
      - Spraying spatula
      - Grainy material
      Note: Not with "Stator airless 306"
    • Handy and compact
    • Powerful and reliable operation via standard power socket
    • Less noise emission
    • No wear on the pressure flange
    • Material filter in the pressure flange,
      can be changed via bypass without disassembly
    • Tool box including basic accessories
    • Empty running safeguard – increases the service life of the pump

    Basic equipment package :

    • Rotor 306 airless / Stator 306 airless
      Pump capacity: max. 8.5 l/min, 140 bar,
      up to 40 m conveying distance in DN12
    • RONDO airless DN12 – 40 m
    • Spray gun In Line Texspray
    • Spray nozzle 545
      Note: Spray nozzle corresponds to "RAC X" type
    • Connecting plug RED 5-16 A
    • Bag squeezer SWING airless

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423400

Description

Extension cable 3 x 2.5 mm², BLA 2-16 A – 25 m (230 V/1 Ph)
Note: for 230V version

20423400 Bild
Part no.

20423360

Description

Extension cable 5 x 2.5 mm², RED 5-16 A - 25 m (400 V, 3 Ph)
Note: for 400V version

20423360  Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
00088049

Extension for remote control cable – 16 m

00088049 Bild
00459811

Bag squeezer for SWING airless

00459811 Bild
00414337

COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414337 Bild
00196221

COMP P-200, 230 V, 1 Ph, 50 Hz, 0.52 kW
200 l/min - max. 3.4 bar with pressure switch-off

00196221 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20211600

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00657204

CF-Taper® - PFT adapter system
The solution for professional filling of drywalls.

00657204 Bild
00460022

RONDO airless DN12 – 20 m

00460022  Bild
00200404

RONDO DN19 – 10 m

00200404 Bild
00504344

Conversion kit SWING airless with air

00504344 Bild
00451147

Pump shaft SWING airless

00451147 Bild

Video

Similar Products
