MULTIMIX The multi-component mixer for professionals

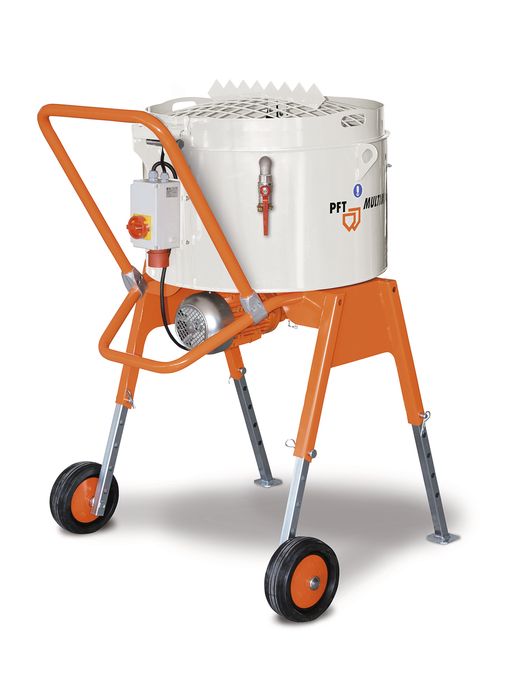

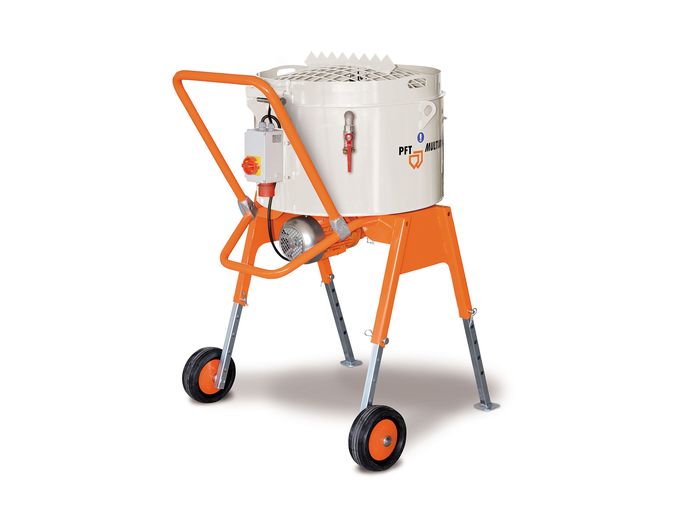

PFT MULTMIX 140 plus
  • Construction site PFT MULTIMIX + PFT SWING L

The MULTIMIX PFT compulsory mixer (also referred to as a trough mixer) is suitable for mixing various components, ready-mix dry cement-based mortar as well as proprietary mixes, SPCC renovation mortar and PCC renovation mortar. The mixed material can be added straight into the hopper and be prepared using the specified quantity of liquid. Counter-rotating stirring hooks save time while producing homogeneous mortar mixtures. The mixed material is quickly and cleanly drained using a flat slide valve on the hopper base. Semi-automatic operation is possible in conjunction with a PFT delivery pump. In this case, the PFT delivery pump transports the mixed material directly to the processing site.

Details

MULTIMIX 140 plus:

  • Simple operation
  • Minimal maintenance and cleaning expenses
  • Self-cleaning mortar outlet
  • Phase inverter in the main switch
  • Counter-rotating stirring hook
  • Turbo mixer
  • Robust and construction-site-friendly construction form
  • Height-adjustable
  • Compatible with a delivery pump like ZP 3 or SWING

MULTIMIX 100/140:

  • Outstanding mixing results
    Due to the offset mixing arms with mixing paddles and wall scrapers.
  • Fast cleaning
  • The mixing arms can be easily removed and replaced individually without tools.
  • Simple and dosed filling
    This is facilitated by the sack opener on the protection grille.
  • Maximum safety
    Thanks to the lockable protection grille.
  • Central operating switch
    Provided with a quick stop button and a safety cut-out for the drum lid.
  • Solid and robust construction
    Not too wide for any door and easily makes it all the way to the top thanks to the large transport wheels.
  • Easy transport
    Easy loading by one person and fits in any estate car.
  • Simple and quick emptying
    Be it into tubs, mortar buckets or wheelbarrows, through a segment slide integrated in the drum base.

A powerful batch mixer that is particularly suitable for special mixtures of different components.
Powerful mixing arms save time while producing homogeneous mortar mixtures.

Smart system - the mixed material is transferred to a PFT delivery pump.
This transports the pumpable material directly to the processing site.

  • Concrete restoration
  • Powder adhesive
  • PCC and SPCC mortars
  • Mineral plaster
  • Fine concrete
  • Acoustic plaster
  • Epoxy resin
  • Screed
  • Synthetic resin plaster
  • Flue construction
  • Granules
  • Clay plaster
  • Furnace construction
  • Plaster and masonry mortar
  • Cement mortar
  • Plaster
  • Finishing plaster
  • Adhesive
  • Plaster
  • Terrazzo
  • Fillers
  • Lime
  • Screed
  • Grouting material
  • Coating compound

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS63_en PFT MULTIMIX 140 plus Oct. 2022 Brochure
PDF
DS133_en PFT MULTIMIX 100 Oct. 2022 Brochure
PDF
DS134_en PFT MULTIMIX 140 Oct. 2022 Brochure
PDF
BAL118_en PFT MULTIMIX (model 2012) Apr. 2024 Operating instructions
PDF

Technical data

  • MULTIMIX 140 plus<br>400 V, 3 Ph, 50 Hz Produktbild

    MULTIMIX 140 plus
    400 V, 3 Ph, 50 Hz

    Part no. :
    00251636
    Performance :

    Mixing capacity:
    80 l/batch

    Max. grain size:
    8 mm
    Filling grid: NW 45x45

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 2.2 kW

    Drive motor:
    2.2 kW, 56 rpm

    Mixing tank:
    Sheet

    Pedestal:
    height adjustable; without folding step

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,120- 1,400 mm

    Outlet height:
    440 - 720 mm, adjustable

    Length/Width/Height:
    1,000/1,030/1,120 mm

    Total weight:
    148 kg

    Basic equipment package :

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • MULTIMIX 140<br>230 V, 1 Ph, 50 Hz Produktbild

    MULTIMIX 140
    230 V, 1 Ph, 50 Hz

    Part no. :
    00627406
    Performance :

    Mixing capacity:
    80 l/batch

    Max. grain size:
    8 mm
    Filling grid: NW 45x45

    Basic equipment :

    Power connection:
    230 V, 1 Ph, 50 Hz, 2.3 kW

    Drive motor:
    2.3 kW, 29 rpm

    Mixing tank:
    Sheet

    Pedestal:
    with folding step

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,210 mm

    Outlet height:
    640 mm

    Length/Width/Height:
    820/770/1,210 mm

    Total weight:
    119 kg

    Basic equipment package :

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • MULTIMIX 100<br>230 V, 1 Ph, 50 Hz Produktbild

    MULTIMIX 100
    230 V, 1 Ph, 50 Hz

    Part no. :
    00627405
    Performance :

    Mixing capacity:
    50 - 60 l/batch

    Max. grain size:
    8 mm

    Basic equipment :

    Power connection:
    230 V, 1 Ph, 50 Hz, 2.0 kW

    Drive motor:
    2.0 kW, 42 rpm

    Mixing tank:
    Sheet

    Pedestal:
    without folding step

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,190 mm

    Outlet height:
    640 mm

    Length/Width/Height:
    720/690/1,190 mm

    Total weight:
    80 kg

    Basic equipment package :

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Equipment

  • MULTIMIX 140 plus<br/>400 V, 3 Ph, 50 Hz Produktbild

    MULTIMIX 140 plus
    400 V, 3 Ph, 50 Hz

    Part no. :
    00251636
    Basic equipment :

    • Drive motor 2.2 kW, 56 rpm
    • Batch mixer with turbo mixer
    • Counter-rotating stirring hook
    • Robust and construction-site-friendly construction form
    • Maximum capacity - 140 litres
    • Holding capacity for fresh mortar - 80 litres
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Self-cleaning mortar outlet
    • Height-adjustable
    • Fits easily over a delivery pump, such as the
      ZP 3 or SWING for example
    • Wear plate in the hopper (changeable)
    • No wear and tear on the material hopper
    • Powerful mixing arms

    Show more
  • MULTIMIX 140<br/>230 V, 1 Ph, 50 Hz Produktbild

    MULTIMIX 140
    230 V, 1 Ph, 50 Hz

    Part no. :
    00627406
    Basic equipment :

    • Drive motor 2.3 kW, 29 rpm
    • Shifted mixing arms
    • Central operating switch
    • Solid and robust construction
    • Lockable protection grille
    • Maximum capacity - 140 litres
    • Simple operation
    • Quick and simple cleaning
    • Simple and dosed filling
    • Simple and quick emptying

    Show more
  • MULTIMIX 100<br/>230 V, 1 Ph, 50 Hz Produktbild

    MULTIMIX 100
    230 V, 1 Ph, 50 Hz

    Part no. :
    00627405
    Basic equipment :

    • Drive motor 2.0 kW, 42 rpm
    • Shifted mixing arms
    • Central operating switch
    • Solid and robust construction
    • Lockable protection grille
    • Maximum capacity - 100 litres
    • Simple operation
    • Quick and simple cleaning
    • Simple and dosed filling
    • Simple and quick emptying

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423360

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 25 m (400 V/3 Ph)

20423360 Bild
Part no.

20423350

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 50 m (400 V/3 Ph)

20423350 Bild
Part no.

20423400

Description

Extension cable 3 x 2.5 mm², RED 5-16 A – 25 m (230 V/ 1 Ph)

20423400 Bild
Part no.

20212100

Description

Water hose/air hose DN19 (3/4") Geka | Geka – 40 m

20212100 Bild

Useful extras

Part no.
Description

00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter

Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
20211100

Water hose/air hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
