Knauf PFT Knauf PFT

DUSTCATCHER for G 4 Dust free - clean and healthy work

DUSTCATCHER for G 4

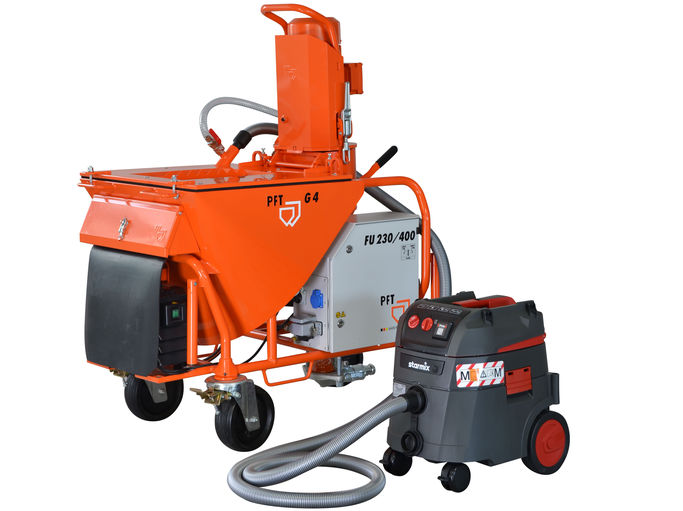

The formation of dust during mixing, milling and sawing is unavoidable on the construction site. PFT offers a highly efficient solution to this issue with the DUSTCATCHER. Dust emissions, which endanger health and machinery, can be reduced to almost zero in this way. The accessories are available for various PFT mixing pumps - including the G 4 model. The main modules of the DUSTCATCHER are the rollable Class M dust remover with integrated filter bag and the easy-to-mount attachment for the material hopper of the mixing pump. A nozzle system is used to reject both the dust that is created when the bagged material is filled and floating dust. Filter separation efficiency is up to 99.9 %.

  • Construction site-tested, useful and handy
  • DUSTCATCHER: up to 80% less dust
  • Stay healthy
  • Work almost dust-free

Details

  • Low overall height - Filling height increases by approx. 2 cm
  • Floating dust is caught again through another adjustable suction nozzle
  • Deflector plate G 4 with outlet connection
  • Including fastening hook for mixing tube
  • Simple assembly using slick PFT supports
  • Robust integrated sack opener
  • Suitable for all G 4 modules

The dust formation during the loading of bagged goods cannot be completely prevented, but we can significantly reduce it.
This is because health is our priority.
Dust-free work is...
- work that safeguards health
- work that is more efficient

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS12_de PFT DUSTCATCHER G 4 Sep. 2022 Prospekt
PDF
BAL192_de PFT DUSTCATCHER für G 4 May 2022 Bedienungsanleitung
PDF

Technical data

  • DUSTCATCHER for G 4<br><br> Produktbild

    DUSTCATCHER for G 4

    Part no. :
    00539716
    for material hopper
    Performance :

    Power consumption:
    1,400 Watt

    Dimensions :

    Vacuum cleaner connection:
    37 mm

    Hopper volume for dust:
    25 litres

    Hood dimensions: W / L
    725 / 665 mm

    Opening dimensions: W / L
    330 / 400 mm

    Weight of hood:
    16.1 kg

    Weight of deflector plate:
    2.3 kg

    Show more
  • DUSTCATCHER for G 4 XL<br><br> Produktbild

    DUSTCATCHER for G 4 XL

    Part no. :
    00617274
    for material hopper
    Performance :

    Power consumption:
    1,400 Watt

    Basic equipment :

    Vacuum cleaner connection:
    37 mm

    Hopper volume for dust:
    25 litres

    Hood dimensions: W / L
    725 / 665 mm

    Opening dimensions: W / L
    330 / 400 mm

    Weight of hood:
    16.1 kg

    Weight of deflector plate:
    2.7 kg

    Show more
  • DUSTCATCHER for G 4<br>(with frame 3/4

    DUSTCATCHER for G 4
    (with frame 3/4")

    Part no. :
    00659260
    for material hopper
    Performance :

    Power consumption:
    1,400 Watt

    Dimensions :

    Vacuum cleaner connection:
    37 mm

    Hopper volume for dust:
    25 litres

    Hood dimensions: W / L
    725 / 665 mm

    Opening dimensions: W / L
    330 / 400 mm

    Weight of hood:
    16.1 kg

    Weight of deflector plate:
    2.3 kg

    Show more

Equipment / Accessories

Ausstattung

  • DUSTCATCHER for G 4<br><br> Produktbild

    DUSTCATCHER for G 4

    Part no. :
    00539716
    for material hopper
    Basic equipment :

    • Dust remover class M - iPulse
    • Supplementary set for dust remover M
    • Extension hopper DUSTCATCHER G 4
    • Deflector plate with outlet connections

    Show more
  • DUSTCATCHER for G 4 XL<br><br> Produktbild

    DUSTCATCHER for G 4 XL

    Part no. :
    00617274
    for material hopper
    Basic equipment :

    • Dust remover class M - iPulse
    • Supplementary set for dust remover
    • Extension hopper DUSTCATCHER G 4
    • Deflector plate with outlet connections

    Show more
  • DUSTCATCHER for G 4<br>(with frame 3/4

    DUSTCATCHER for G 4
    (with frame 3/4")

    Part no. :
    00659260
    for material hopper
    Basic equipment :

    • Dust remover class M - iPulse
    • Supplementary set for dust remover
    • Extension hopper DUSTCATCHER G 4
    • Deflector plate with outlet connections

    Show more

Useful extras

Part no.
Description

00623276

Dust remover class M

00623276 Bild
00426894

Supplementary set for dust remover M
Comprising: 1 x handhold, 2 x suction tube, 1 x joint nozzle, 1 x dust nozzle

00426894 Bild
00538445

Deflector plate G 4 with outlet connection

00538445 Bild
00659138

Deflector plate G 4 with outlet connection
Note: for G 4 with frame 3/4"

00659138 Bild
00538416

Extension hopper DUSTCATCHER G 4

00538416 Bild
