Knauf PFT Knauf PFT

Air compressors Site tried & tested and efficient

Air compressor
  • Air compressor
  • Application with use of air compressor

The air compressors are an optimal addition for the processing of a variety of plasters as well as paints with mixing or delivery pumps from PFT. Equipped with motor protection, non-return valve and safety valve, guaranteeing you the greatest possible safety.

  • Recommendation

Details

Identification key

Description: COMP
Type: P (Piston), M (Membrane), R (Rotary)
Power (l/min): 250
Volts: 400 V
Phases: 3 Ph
Hertz: 50 Hz

Examples:
- COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz
- COMP P-200, 230 V, 1 Ph, 50 Hz
- COMP R-80, 230 V, 1 Ph, 50 Hz

COMP P-320
- Spray plaster
- Structural plaster
- Filler plaster
- Reinforcement plaster
- Acoustic plaster

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS26_de PFT Luftkompressor COMP P-320 Nov. 2021 Prospekt
PDF
BAL236_de PFT Luftkompressor COMP M-125 / COMP M-250 Sep. 2020 Bedienungsanleitung
PDF
BAL160 PFT Luftkompressor COMP P-400 (DE/EN/FR/IT/PL) Apr. 2010 Bedienungsanleitung
PDF
ET32 G 4: Luftkompressor COMP M-250 Handy (00414337) May 2020 Ersatzteilliste
PDF
ET33 G 4: Luftkompressor COMP M-250 (00414866) May 2020 Ersatzteilliste
PDF
ET56 RITMO XL 230 V: Luftkompressor, Luftarmatur (00199594) Apr. 2019 Ersatzteilliste
PDF
ET57 RITMO XL: Luftkompressor (00199508) Aug. 2016 Ersatzteilliste
PDF
BAL159_de PFT Luftkompressor COMP P-200, 230 V Nov. 2016 Bedienungsanleitung
PDF
BAL161_de PFT Luftkompressor COMP P-400 Sep. 2016 Bedienungsanleitung
PDF
BAL162_de PFT Luftkompressor COMP P-400 / COMP P-600 Sep. 2007 Bedienungsanleitung
PDF

Technical data

  • COMP P-320<br>230 V, 1 Ph, 50 Hz Produktbild

    COMP P-320
    230 V, 1 Ph, 50 Hz

    Part no. :
    00746490
    Performance :

    Suction capacity:
    320 l/h

    Max. working pressure:
    10 bar

    Core focus of application:
    Piston compressor

    Strengths and benefits:
    - Ergonomic push/carrying handle
    - Two oil-free compressed air connections
    - Reliable motor protection
    - Condensate drain tap
    - Two pressure gauges for withdrawal and tank pressure
    - Pressure regulator for extraction pressure
    - Robust wheels for excellent manoeuvrability
    - Complete fittings unit with filter pressure reducer
    - Can also be operated "stand-alone" without a machine
    - Integrated cable holder
    - Quiet operation

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.2 kW

    Drive motor:
    2.2 kW, 1,400 rpm

    Pedestal:
    Included

    Connection cable:
    2.8 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    24 litres

    Length/Width/Height:
    800/585/535 mm

    Total weight:
    54 kg

    Show more

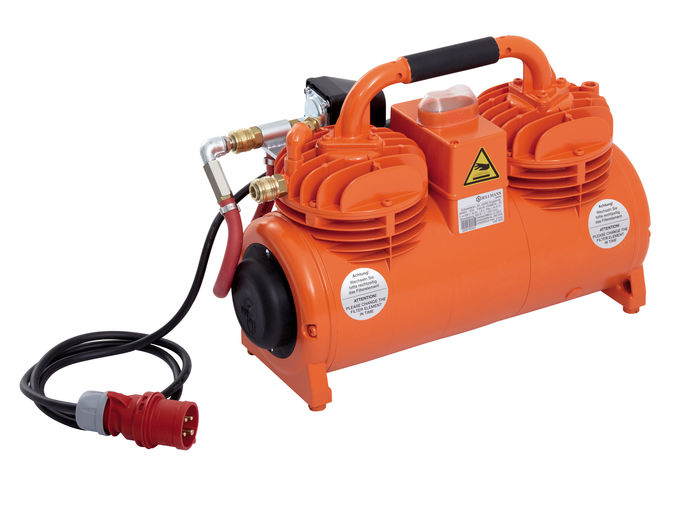

  • COMP M-250-X0 handy<br>400 V, 3 Ph, 50 Hz Produktbild

    COMP M-250-X0 handy
    400 V, 3 Ph, 50 Hz

    Part no. :
    00414866
    Performance :

    Suction capacity:
    250 l/min

    Max. working pressure:
    4 bar

    Core focus of application:
    Membrane compressor

    Strengths and benefits:
    - Oil-free compressed air
    - Installation in machines and detached use
    - Extremely robust design
    - Easy to maintain
    - Compact and handy
    - Can also be operated "stand-alone" without a machine

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.9 kW

    Drive motor:
    0.9 kW, 1,430 rpm

    Pedestal:
    Not included

    Connection cable:
    1 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    490/220/355 mm

    Total weight:
    23 kg

    Suitable for:
    - G 4
    - SWING L
    - ZP 3 M
    - ZP 3 XL

    Show more
  • COMP M-250-V5 handy<br>400 V, 3 Ph, 50 Hz Produktbild

    COMP M-250-V5 handy
    400 V, 3 Ph, 50 Hz

    Part no. :
    00414337
    Performance :

    Suction capacity:
    250 l/min

    Max. working pressure:
    4 bar

    Core focus of application:
    Membrane compressor

    Strengths and benefits:
    - Oil-free compressed air
    - Installation in machines and detached use
    - Extremely robust design
    - Easy to maintain
    - Compact and handy
    - Can also be operated "stand-alone" without a machine

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.9 kW

    Drive motor:
    0.9 kW, 1,430 rpm

    Pedestal:
    Not included

    Connection cable:
    1.3 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    490/220/355 mm

    Total weight:
    23 kg

    Suitable for:
    - G 4
    - ZP 3 L

    Show more
  • COMP M-250-V5 handy<br>400 V, 3 Ph, 50 Hz Produktbild

    COMP M-250-V5 handy
    400 V, 3 Ph, 50 Hz

    Part no. :
    20130017
    Performance :

    Suction capacity:
    250 l/min

    Max. working pressure:
    4 bar

    Core focus of application:
    Membrane compressor

    Strengths and benefits:
    - Oil-free compressed air
    - Installation in machines and detached use
    - Extremely robust design
    - Easy to maintain
    - Compact and handy
    - Can also be operated "stand-alone" without a machine

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.9 kW

    Drive motor:
    0.9 kW, 1,430 rpm

    Pedestal:
    Not included

    Connection cable:
    1.3 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    490/220/355 mm

    Total weight:
    23 kg

    Suitable for:
    - G 4 (with frame 3/4")
    - SWING L
    - ZP 3 XL

    Show more
  • COMP R-160<br>230 V, 1 Ph, 50 Hz Produktbild

    COMP R-160
    230 V, 1 Ph, 50 Hz

    Part no. :
    00047722
    Performance :

    Suction capacity:
    160 l/min

    Max. working pressure:
    1.5 bar

    Core focus of application:
    Rotary compressor

    Strengths and benefits:
    - Dry running
    - Air-cooled
    - Compact design
    - Can only be operated in conjunction with a machine

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.9 kW

    Drive motor:
    0.9 kW, 1,430 rpm

    Pedestal:
    Not included

    Connection cable:
    1.3 m

    Operation and control:
    Not included

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    410/235/340 mm

    Total weight:
    27 kg

    Show more
  • COMP R-80<br>230 V, 1 Ph, 50 Hz Produktbild

    COMP R-80
    230 V, 1 Ph, 50 Hz

    Part no. :
    00078817
    Performance :

    Suction capacity:
    80 l/min

    Max. working pressure:
    1.8 bar

    Core focus of application:
    Rotary compressor

    Strengths and benefits:
    - Dry running
    - Air-cooled
    - Compact design
    - Oil-free
    - Can only be operated in conjunction with a machine

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.35 kW

    Drive motor:
    0.35 kW, 2,700 rpm

    Pedestal:
    Not included

    Connection cable:
    0.5 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    251/111/143 mm

    Total weight:
    11 kg

    Suitable for:
    - RITMO M
    - RITMO L
    - RITMO L plus

    Show more
  • COMP P-200<br>400 V, 3 Ph, 50 Hz Produktbild

    COMP P-200
    400 V, 3 Ph, 50 Hz

    Part no. :
    00680923
    Performance :

    Suction capacity:
    200 l/min

    Max. working pressure:
    3.8 bar

    Core focus of application:
    Piston compressor

    Strengths and benefits:
    - No reduction of air volume
    - Dry running
    - Oil-free condenser motor
    including thermal protection
    - Anodised aluminium housing
    - Illuminated on/off switch
    - Can only be operated in conjunction with a machine

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 0.55 kW

    Drive motor:
    0.55 kW, 1,425 rpm

    Pedestal:
    Not included

    Connection cable:
    1.5 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    415/194/344 mm

    Total weight:
    14 kg

    Suitable for:
    - G 4
    - G 4 (with frame 3/4")

    Show more
  • COMP P-200<br>230 V, 1 Ph, 50 Hz Produktbild

    COMP P-200
    230 V, 1 Ph, 50 Hz

    Part no. :
    00196221
    Performance :

    Suction capacity:
    200 l/min

    Max. working pressure:
    4 bar

    Core focus of application:
    Piston compressor

    Strengths and benefits:
    - Dry running
    - Oil-free condenser motor
    including thermal protection
    - Anodised aluminium housing
    - Illuminated on/off switch
    - Can only be operated in conjunction with a machine

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 0.52 kW

    Drive motor:
    0.52 kW, 1,400 rpm

    Pedestal:
    Not included

    Connection cable:
    1.8 m

    Operation and control:
    On/off switch included
    Electrical pressure switch-off

    Dimensions :

    Tank volume:
    -

    Length/Width/Height:
    415/194/344 mm

    Total weight:
    14 kg

    Suitable for:
    - G 4 (models with 230 V, 1 Ph)
    - RITMO XL
    - ZP 3 M

    Show more
