Delivery hood
Direct connection of a mixing pump to a silo

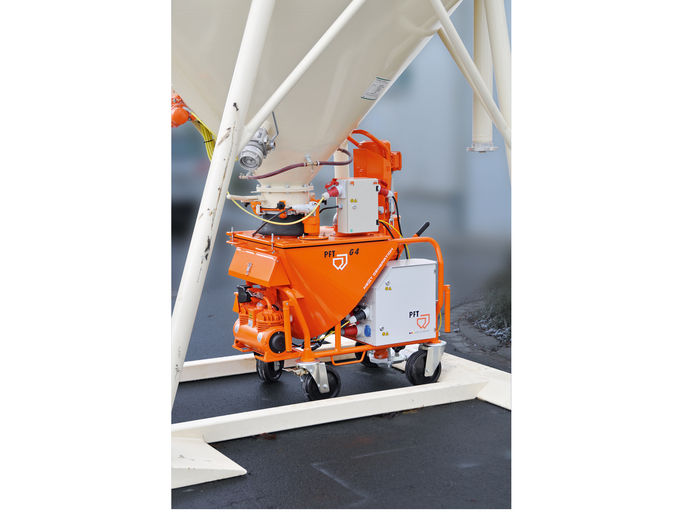

The PFT delivery hood is used when feeding the mixing pump with material silos. With the help of the construction site-tested, high-quality special equipment, PFT mixing pumps can be easily filled with machine-compatible ready-mix dry mortars. The PFT delivery hood is mounted as an attachment on the material hopper and fastened to the silo discharge flap via the flange of the delivery bellows with aluminium quick closure. A level indicator regulates the flow of material via the silo agitator and prevents the machine running empty. The silo agitator and machine compressor are supplied with power via the control box.
Details
- Highlights
-
Functionality
- Fill level indicator regulates the flow of material via the silo agitator and prevents the machine running empty
- The silo agitator and machine compressor are supplied with power via the control box
Product variants

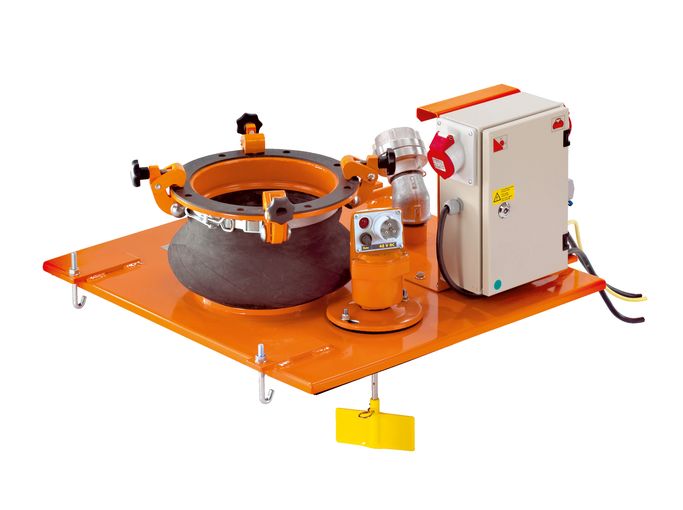

Delivery hood
Delivery hood – 400V, 3 Ph, 50 Hz
- Silo connection flange: 250 mm
- Delivery bellows: 300 mm
- Level indicator
- Filter bag: 500 mm
Note: Agitator not included in delivery
Suitable for: HM 24, G 4, G 4 (with frame 3/4"), G 54
Delivery hood – 400V, 3 Ph, 50 Hz
- Silo connection flange: 250 mm
- Delivery bellows: 420 mm
- Level indicator
- Filter bag: 500 mm
Note: Agitator not included in delivery. Required when using PFT MINITAINER.
Suitable for: G 4, G 4 XL, G 54
