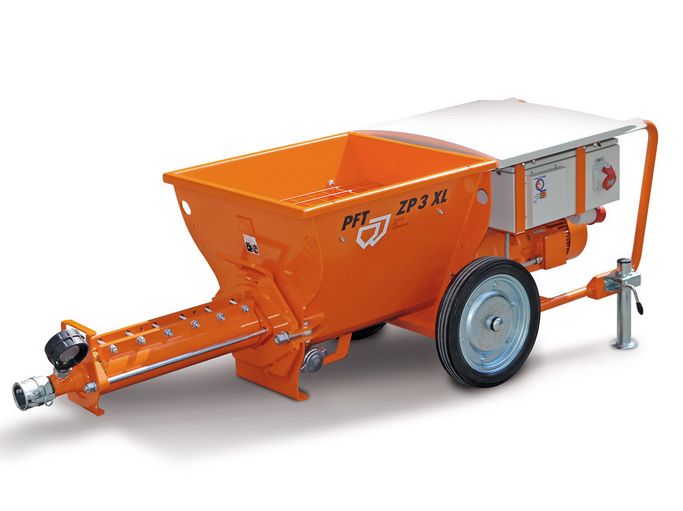

ZP 3 XL The universally applicable delivery pump

PFT ZP 3 XL

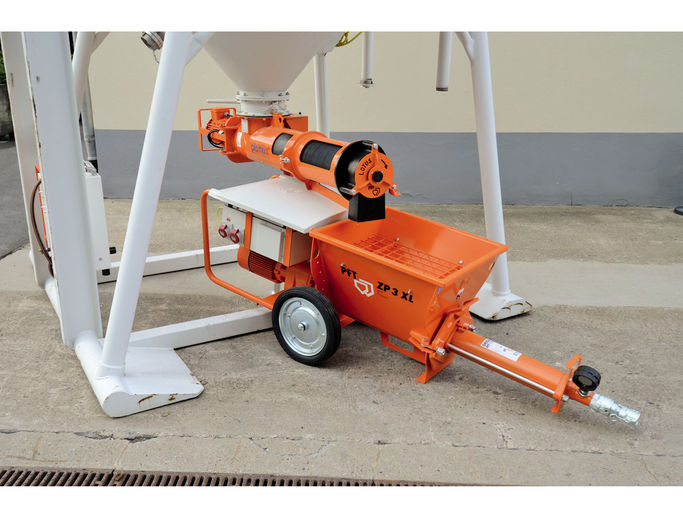

  • PFT construction site ZP 3 XL

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media. With the ZP 3-family, PFT satisfies a wide range of requirements. The intermediate mortar pump directly pumps on the plaster, masonry mortar or screed mixed by a continuous, compulsory or truck mixer. The conveying output can be steplessly adapted to the material requirements. A remote control is available for switching the PFT ZP 3 XL on and off.

  • Mixing quality
  • Open system
  • Hose length

Details

Highlights

  • Fixed speed
  • Adjustable conveying output by changing the pump (D, R or T pump)
  • Solid rubber wheels with steel rims
  • Doubled gear gasket with inspection opening
  • Cleaning port in material hopper
  • Pump capacity can be easily adjusted with a frequency converter
  • Optional: vibrating screen
  • Crane eyes

The powerful intermediate mortar pump directly pumps on the plaster, masonry mortar or screed mixed by a continuous, compulsory or truck mixer to the site of use. Depending on the material requirement, the pump capacity can be continuously adjusted.

  • Masonry mortar
  • Light masonry mortar
  • Reinforcing mortar
  • Screed mortar
  • Adhesive mortar
  • Tile / jointing mortar
  • Cement plaster
  • Insulating plaster
  • Clay plaster
  • Textured plaster
  • Restoration plaster
  • Scratch coat

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS10_en PFT ZP 3 XL FC-400V Apr. 2019 Brochure
PDF
BAL183_en General safety instructions Mixing pump / Conveying pump Dec. 2021 Safety notice
PDF
BAL137_en PFT ZP 3 XL FC Dec. 2023 Operating instructions
PDF

Technical data

  • ZP 3 XL<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00102964
    Performance :

    Conveying output, max.:
    118 l/min (T-Pump)

    Conveying distance up to:
    100 m in DN50

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Drive:
    Pump motor: 7.5 kW, 175 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN50 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    620 mm

    Hopper volume:
    130 litres

    Length/Width/Height:
    2,255/725/745 mm

    Total weight:
    238 kg

    Basic equipment package :

    Pump unit:
    R 7–3 S · 27 l/min · 30 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 female part | DN50 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • ZP 3 XL FC-400V<br/>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00102957
    Performance :

    Conveying output, max.:
    130 l/min (T 10–1.5)

    Conveying distance up to:
    100 m in DN50

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Drive:
    Pump motor: 7.5 kW, 84 – 280 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN50 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity via frequency converter
    Can be continuously adjusted electronically

    Dimensions :

    Filling height:
    620 mm

    Hopper volume:
    130 litres

    Length/Width/Height:
    2,255/720/745 mm

    Total weight:
    240 kg

    Basic equipment package :

    Pump unit:
    R 7–3 S · 12 – 42 l/min · 30 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 female part | DN50 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • ZP 3 XL vario<br/>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00098125
    Performance :

    Conveying output, max.:
    118 l/min (T-Pump)

    Conveying distance up to:
    100 m in DN50

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 7.5 kW

    Drive:
    Pump motor: 7.5 kW, 70 – 260 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN50 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity via vario gearbox
    continuously adjustable

    Dimensions :

    Filling height:
    620 mm

    Hopper volume:
    130 litres

    Length/Width/Height:
    2,255/720/745 mm

    Total weight:
    308 kg

    Basic equipment package :

    Pump unit:
    R 7–3 S · 40 l/min · 30 bar

    Mortar hose:
    Not included

    Reduction in the coupling:
    DN35 female part | DN50 male part

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Equipment

  • ZP 3 XL<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00102964
    Basic equipment :

    • Drive motor 7.5 kW, 175 rpm
    • Adjustable conveying output by changing the pump (D or R pump)
    • Handy, compact
    • Solid rubber wheels with steel rims
    • Doubled gear gasket with inspection opening
    • Grout outlet DN50 female part with mortar pressure gauge
    • Hopper volume 130 litres
    • Cleaning port in material hopper

    Basic equipment package :

    • Rotor R 7–3 S / Stator R 7–3 S
      Pump capacity: 27 l/min, 30 bar,
      up to 100 m conveying distance in DN50
    • Adapter coupling
      DN35 female part | DN50 male part
    • Sprocket pump shaft ZP 3 XL

    Show more
  • ZP 3 XL FC-400V<br/>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL FC-400V
    400 V, 3 Ph, 50 Hz

    Part no. :
    00102957
    Basic equipment :

    • Drive motor 7.5 kW, 70 – 260 rpm
    • Pump capacity can be easily adjusted electronically with a potentiometer
    • Adjustable conveying output by changing the pump (D or R pump)
    • Solid rubber wheels with steel rims
    • Doubled gear gasket with inspection opening
    • Grout outlet DN50 female part with mortar pressure gauge
    • Hopper volume 130 litres
    • Cleaning port in material hopper

    Basic equipment package :

    • Rotor R 7–3 S / Stator R 7–3 S
      Pump capacity: 40 l/min, 30 bar,
      up to 100 m conveying distance in DN50
    • Adapter coupling
      DN35 female part | DN50 male part
    • Sprocket pump shaft ZP 3 XL

    Show more
  • ZP 3 XL vario<br/>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 XL vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00098125
    Basic equipment :

    • Drive motor 7.5 kW, 70 – 260 rpm
    • Pump capacity can be easily adjusted with a vario gearbox
    • Adjustable conveying output by changing the pump (D or R pump)
    • Solid rubber wheels with steel rims
    • Doubled gear gasket with inspection opening
    • Grout outlet DN50 female part with mortar pressure gauge
    • Hopper volume 130 litres
    • Cleaning port in material hopper

    Basic equipment package :

    • Rotor R 7–3 S / Stator R 7–3 S
      Pump capacity: 40 l/min, 30 bar,
      up to 100 m conveying distance in DN50
    • Adapter coupling
      DN35 female part | DN50 male part
    • Sprocket pump shaft ZP 3 XL

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00105633

Description

Extension cable 5 x 6 mm², RED 5-32 A – 25 m (400 V/3 Ph)

00105633 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
00478212

Assembly aid for R-pump

00478212 Bild
00148146

Vibrating screen for retrofitting

00148146 Bild
00098004

Extension hopper 300 mm with sieve insert and surge case

00098004 Bild
00151179

Air compressor retrofit kit ZP 3 XL FC-400V
for part no. 00 10 29 57
includes:
- COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz
- Pressure switch-off for compressor
- Pressure control for machine
- Support for compressor

00151179 Bild
00148510

Retrofit kit for air compressor ZP 3 XL / vario
for part no. 00 09 81 25 and 00 10 29 64
includes:
- COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz
- Pressure switch-off for compressor
- Pressure control for machine
- Support for compressor

00148510 Bild
