EUMAX

EUMAX

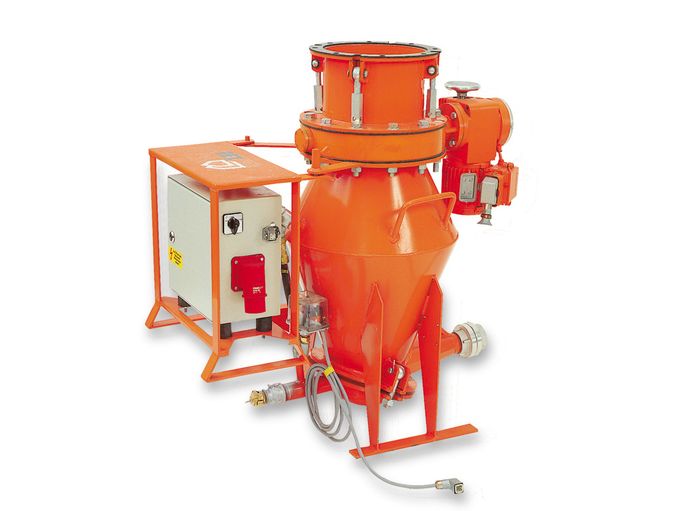

The PFT EUMAX is a portable conveying pot for connection to containers and gravity-flow silos or for bagged goods. The conveyed material reaches the mixing pump pneumatically via hoses with the help of a compressor. The EUMAX has a separate control unit for connection to operating air. The special PFT fluidiser increases and secures the material flow. A manually controllable bypass function is available for sluggish material and longer conveying distances.

  • 42V control voltage
  • Hose length
  • Simple operation

Details

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL01_de PFT EUMAX Dec. 2018 Bedienungsanleitung
PDF
BAL184_de Allgemeine Sicherheitshinweise Förderanlagen Dec. 2021 Sicherheitshinweis
PDF

Technical data

  • EUMAX conveying pot<br>400 V, 3 Ph, 50 Hz Produktbild

    EUMAX conveying pot
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560611
    Performance :

    Conveying distance:
    100/140 m

    Conveying output:
    20 kg/min

    Basic equipment :

    Power connection:
    400 V, 3 Ph, 50 Hz, 0.18 kW

    Consumption:
    Power consumption: 0.45 A
    Power consumption: 0.12 kW

    Max. working pressure:
    2 bar

    Fuse:
    32 A
    construction site distributor with 30 mA earth leakage circuit breaker required

    Connection cable (not included):
    5 x 4 mm² – RED 5-32 A

    Actuator Q2:
    Power: 0.18 kW
    Unit: 0.65 A

    Dimensions :

    Contents of conveying pot/block:
    55 litres

    Height of conveying pot:
    980 mm

    Weight of conveying pot:
    87 kg

    Show more

Equipment / Accessories

Ausstattung

  • EUMAX<br>400 V, 3 Ph, 50 Hz Produktbild

    EUMAX
    400 V, 3 Ph, 50 Hz

    Part no. :
    20560611
    Basic equipment :

    Conveying pot – portable

    • Conveying pot with separate control unit for connection to operating air
      (Air requirement min. 145 Nm³/h - pressure max. 2 bar)
    • Suitable for container/silo outlet flange Ø 250 mm
    • Capacity: 55 litres / weight: 87 kg / height: 980 mm
    • Shut-off flap with actuator and hand wheel
    • Easily replaceable gaskets
    • Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
    • Bypass manually controllable for stiff material and longer conveying distances
      Note: Affects the conveying output

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m

20423900 Bild
Part no.

00473424

Description

Conveying hose - initial equipment – 73.3 m consisting of:

  • 3 x 3-layer rubber hose DN45 – 20 m
  • 1 x 3-layer rubber hose DN45 – 13.3 m
  • Hose holder with hook

00473424 Bild
Part no.

00464232

Description

Conveying hose of 3-layer rubber hose DN45 – 13.3 m C-coupling

00464232 Bild
Part no.

00464233

Description

Conveying hose of 3-layer rubber hose DN45 – 20 m C-coupling

00464233 Bild
Part no.

20652800

Description

Conveying hose of PVC textile hose DN46 – 12.5 m C-coupling

20652800 Bild
Part no.

20652900

Description

Conveying hose of PVC textile hose DN46 – 25 m C-coupling

20652900 Bild
Part no.

20650500

Description

Conveying hose - initial equipment – 75 m consisting of:

  • 3 x PVC fabric hose DN46 - 25 m
  • Hose holder with hook

20650500 Bild

Useful extras

Part no.
Description

00128606

External vibrator A10-2.67 – 8 m, 400 V, 3 Ph, 50 Hz

00128606 Bild
20654000

Hose holder with hook

20654000 Bild
20706600

Twin adapter 330/330 for connection of 2 SILOMAT conveying pots
Note: Intermediate piece required

20706600 Bild
20716000

Filling hopper for bagged goods
Note: Not for "SILOMAT trans plus bag"

20716000 Bild
00420664

Folding injection hood for G 4, RITMO XL

00420664 Bild
00453469

Extension hopper – 142 litres for G 4 for maximum utilisation

00453469 Bild
