G 4 XL Powerful and compact

PFT G 4 XL

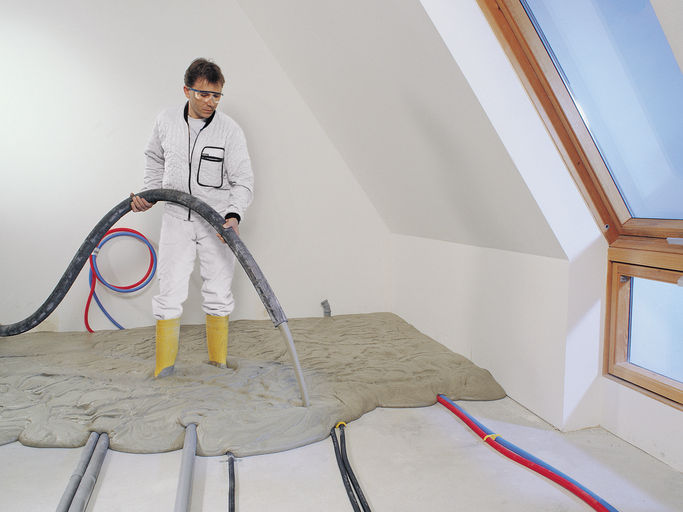

  • G 4 XL floor screed application

Mixing pumps - also called plastering machines or mortar pumps - of type PFT G 4 are suitable for all machine-compatible ready-mix dry mortars based on gypsum, lime and cement. The material hopper is separate from the mixing and pumping unit. The G 4, which operates continuously and fully automatically, can be started up and refilled at any time. It can be filled with bagged material but also by means of a delivery hood directly from the silo/container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers a high conveying output and conveying distance and can be combined with the entire PFT machine range. The G 4 XL model is powerful yet compact. A particularly powerful motor and pump ensure that nothing is left to be desired on the construction site. The machine has a water pump that is designed as a pressure booster pump. In addition, it has an exchangeable pressure flange for the use of powerful D and R pumps.

  • Mixing quality
  • Easy cleaning
  • Closed system
  • 42V control voltage

Details

Highlights

  • Higher pump and conveying output
  • Ready for GPS
  • Phase sequence monitoring
  • Easy cleaning - rubber mixing zone with adaptable flange for D and R pumps
  • Reinforced tubular frame and robust wheel mount
  • Forklift straps and crane lifting eyes
  • Deflector plate - Reduction of dust load
  • Large control box - easy to maintain and dust protected
  • Switches and connections are inside the basic design
  • Trouble-free operation due to large water fine filter
  • Simple, fast and efficient - loading the machine with material:
    - Filling with bagged material
    - Pneumatic filling from silo by means of PFT SILOMAT conveying system
  • Flexible mixing intensity thanks to two water inlets
  • Safe transport due to four handles with folding mechanism
  • Perfectly maintenance-friendly - water manifold and pressure switch are easily accessible
  • Dry run protection in the material hopper prevents the machine from running empty

The mixing pump is designed for tough daily construction site use without compromise.
A higher motor output, conveying outputs and more feed lengths leave nothing to be desired.

  • Gypsum / gypsum lime plaster
  • Cement plaster
  • Insulation
  • Lime-cement render
  • Fango material
  • Insulating plaster
  • Filling plasters
  • Masonry mortar
  • Floor screed
  • Liquid filler
  • Bonding/reinforcing mortar

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS118_en PFT G 4 XL Oct. 2022 Brochure
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Safety notice
PDF
BAL48_en PFT G 4 super / G 4 XL Feb. 2022 Operating instructions
PDF
ET36 G 4: Spraying gun (00136624) May 2020 Spare parts list
PDF

Technical data

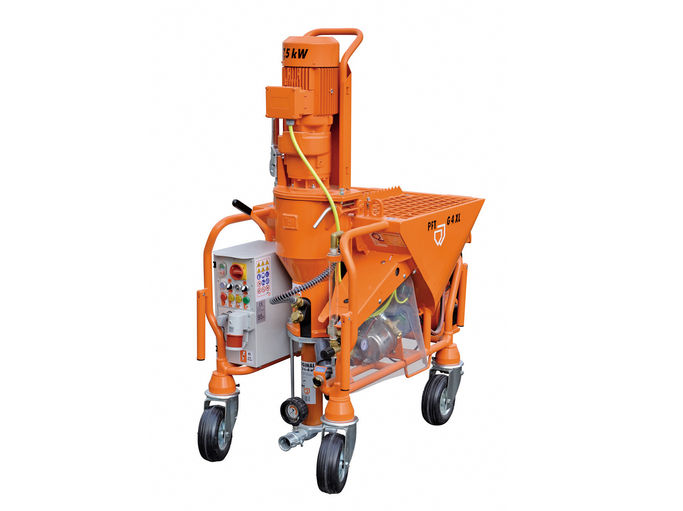

  • G 4 XL<br>400 V, 3 Ph, 50 Hz Produktbild

    G 4 XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00406795
    with pressure booster pump
    Performance :

    Conveying output, max.:
    85 l/min

    Conveying distance up to:
    30 m in DN25
    50 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 7.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 7.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.75 kW, 28 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. Water pump control unit

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    365 kg

    Basic equipment package :

    Pump unit:
    D 6–4 · 20 l/min · 40 bar

    Mortar hose:
    RONDO DN25 – 15 m

    Adapter coupling:
    DN35 male part | DN25 male part

    Water pump for pressure boosting:
    AV 1000
    400 V, 3 Ph, 50 Hz, 0.6 kW

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP M-250-V5 handy,
    400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min –
    max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 15 m

    Show more

Equipment / Accessories

Equipment

  • G 4 XL<br>400 V, 3 Ph, 50 Hz Produktbild

    G 4 XL
    400 V, 3 Ph, 50 Hz

    Part no. :
    00406795
    with pressure booster pump
    Basic equipment :

    • Pump drive 7.5 kW, 400 rpm
    • Star wheel drive 0.75 kW, 28 rpm –
      Conveying output: 85 l/min
    • Material hopper
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN35 female part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Rubber mixing zone, for easy cleaning, with adaptable flange for D and R pump
      Note: Scope of supply: Suction and pressure flange for D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections in the control box:
      BLA 4-16 | H 4 | RED 4-16 | BLU 2-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4") –
      Required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Wind deflector plate on the motor -
      prevents turbulence in the hopper
    • Flexible mixing intensity thanks to two water inlets
    • Dry run protection in the material hopper prevents running empty
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor D 6–4 / Stator D 6–4
      Pump capacity: max. 20 l/min, 40 bar,
      up to 40 m conveying distance in DN25
      up to 65 m conveying distance in DN35
    • Water pump as pressure booster pump
      AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 15 m
    • Air hose DN12 (1/2") Ewo | Geka – 15 m
    • Cleaner coupling for cleaning the material hose
      DN35 female part | Geka
    • Adapter coupling DN35 male part | DN25 male part
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP M-250-V5 handy,
      400 V, 3 Ph, 50 Hz, 0.9 kW,
      250 l/min with pressure control

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

00021119

Description

RONDO DN35 – 13.3 m

00021119 Bild
Part no.

00021105

Description

RONDO DN35 – 20 m

00021105 Bild
Part no.

00021123

Description

RONDO DN35 pouring hose – 13.3 m

00021123 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211300

Description

Air hose DN12 (1/2") Geka | Geka – 15 m

20211300 Bild

Useful extras

Part no.
Description

20600213

Injection hood

  • Including level indicator
  • Including extension for remote control cable – 25 m + 50 m

20600213 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00493481

Water pump as pressure booster pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: For mounting on the machine

00493481 Bild
00492679

Water pump as suction pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: Free-standing

00492679 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00414337

COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414337 Bild
00414866

COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414866 Bild
00680923

COMP P-200, 400 V, 3 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.8 bar with pressure switch-off

00680923 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
20104310

Consistency checking tube DN35 male part

20104310 Bild
00447911

Conversion kit to rubber mixing tube consisting of:

  • Rubber mixing tube
  • Rubber mixing zone D-/R-Pump
  • Suction flange D-pump

00447911 Bild
