RITMO L FC-230 V plus powercoat The mixing pump for mineral fillers

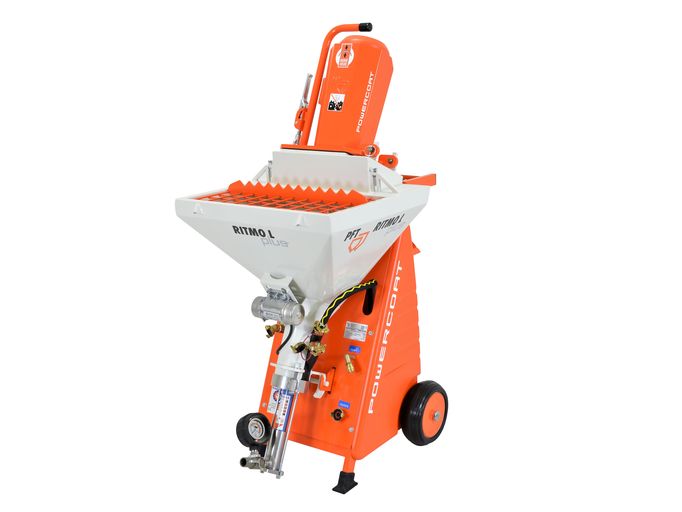

PFT RITMO L FC-230 V plus powercoat

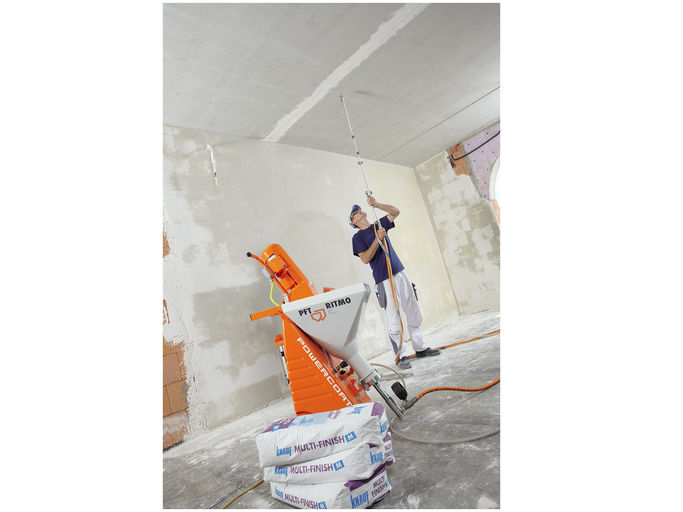

  • PFT construction site RITMO L FC-230 V plus powercoat

The tried and tested PFT RITMO L plus is equipped with a revolutionary stainless steel agitator that makes it possible to mechanically grind lumps.
A homogeneous, sprayable filler is mixed in this way.

Discover the RITMO series brochure

  • 1 man - 1 machine
  • Mixing quality
  • Closed system
  • With rubber mixing zone - easy cleaning

Details

  • Flow-optimised outlet
  • Mortar pressure gauge integrated
  • Change of output possible by changing the A, B and SD pump unit as well as adjustment of the FC parameters
  • Easily broken down into individual modules
    - Motor with tilt flange: 30 kg
    - Material hopper with pump unit: 26 kg
    - Chassis: 64 kg
    - Mixing shaft: 3 kg
  • Equipped with external vibrator as standard
  • Flexible mixing intensity thanks to two water inlets
  • Easy handling in start-up, conversion, maintenance and cleaning
  • Foldable motor
  • Circumferential sealing edge on the material hopper for accessories
  • Fits in any estate car
  • Mounting position for rotor/stator assembly
  • Conical mixing tube for optimum material flow with built-on agitator
  • Large slot area
  • Powerful and reliable operation via standard power socket
  • Extension hopper – for double the volume
  • Rubber mixing zone
  • Suitable for buckets or bagged material

  • Fine filler (mineral)
  • Fine filler (pasty)

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS45_de Serienprospekt PFT RITMO Sep. 2020 Prospekt
PDF
DS157_de PFT RITMO L plus powercoat Sep. 2020 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL229_de PFT RITMO L plus powercoat May 2022 Bedienungsanleitung
PDF
ET41 RITMO L plus / turbo / powercoat Mar. 2022 Ersatzteilliste
PDF

Technical data

  • RITMO L FC-230V plus<br>powercoat<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V plus
    powercoat
    230 V, 1 Ph, 50 Hz

    Part no. :
    00659659
    Performance :

    Conveying output, max.:
    3 l/min

    Conveying distance up to:
    20 m for fillers (mineral)

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.2 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 2.2 kW, 69 – 492 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK RITMO L plus powercoat
    Galvanised mineral filler

    Grout outlet with mortar pressure gauge:
    DN13 female part

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/stop and continuously variable speed control

    Dimensions :

    Filling height:
    930 mm

    Hopper volume:
    45 litres ~ 1.5 sacks (at 30 kg)

    Length/Width/Height:
    750/600/1,430 mm

    Total weight:
    123 kg

    Basic equipment package :

    Pump unit:
    A 2–2.5 powercoat · 3 l/min · 25 bar

    Mortar hose:
    RONDO DN13 – 15 m

    External vibrator:
    AM3-0.44 – 1.2 m,
    230 V, 1 Ph, 50 Hz

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    31.5 – 315 l/h

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    powercoat DN13 VA4 1500 Ewo

    Connection cable:
    3 x 2.5 mm²,
    BLU 3-16 A | BLU 2-16 A – 25 m

    Water hose/air hose:
    DN9 (3/8") Ewo | Ewo - 16 m

    Show more

Equipment / Accessories

Ausstattung

  • RITMO L FC-230V plus<br>powercoat<br>230 V, 1 Ph, 50 Hz Produktbild

    RITMO L FC-230V plus
    powercoat
    230 V, 1 Ph, 50 Hz

    Part no. :
    00659659
    Basic equipment :

    • Pump drive 2.2 kW, 69– 492 rpm
    • Material hopper with external vibrator, reduces tunnelling and improves material flow
    • Capacity 45 litres ~ 1.5 sacks (30 kg)
    • Suitable for buckets or bagged material
    • Conical mixing tube for optimum material flow
    • Agitator powercoat
    • Control voltage 42 volts,
      for the greatest operational safety
    • Ready for remote control
    • Grout outlet DN13 female part with mortar pressure gauge
    • Rubber mixing zone, for easy cleaning, with adaptable flange for A and B pump
      Note: Scope of supply: Suction and pressure flange for B pump
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection DN12 (1/2") –
      Required working pressure 2.5 bar
    • Reduced initial current
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Small, light, handy, compact and rollable
    • Easily broken down into individual modules
    • Flexible mixing intensity thanks to two water inlets
    • Connections in the control box:
      BLU 3-16 | H 4

    Basic equipment package :

    • Rotor A 2–2.5 powercoat / Stator A 2–2.5
      Pump capacity: 3 l/min, 25 bar,
      up to 20 m conveying distance with fillers (mineral)
    • Water flow meter 31.5 – 315 l/h
    • RONDO DN13 hydraulic connection
      Male part | Female part – 15 m
    • Air hose DN9 (3/8") Ewo | Ewo - 16 m
    • Cleaner coupling for cleaning the material hose
      DN13 female part | Geka
    • Spraying gun powercoat DN13 VA4 1500 Ewo
    • Remote control cable extension – 16 m
    • External vibrator AM3-0.44 – 1.2 m,
      230 V, 1 Ph, 50 Hz
    • Connection cable 3 x 2.5 mm²,
      BLU 3-16 A | BLU 2-16 A – 25 m

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 2-16 A – 25 m (230 V/1 Ph)

20423420 Bild
Part no.

00087354

Description

RONDO DN13 – 15 m

00087354 Bild

Useful extras

Part no.
Description

00612729

Extension hopper RITMO L plus

00612729 Bild
00611177

DUSTCATCHER for material hopper RITMO L plus

00611177 Bild
00619834

DUSTCATCHER for extension hopper RITMO L plus

00619834 Bild
00619788

Cover for material hopper RITMO L plus

00619788 Bild
00619830

Cover for extension hopper RITMO L plus

00619830 Bild
00625970

Bag squeezer RITMO L plus

00625970 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
00233174

COMP P-400, 230 V, 1 Ph, 50 Hz, 2.2 kW
390 l/min - max. 10 bar with pressure switch-off

00233174 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
00640557

Pump unit A 2–2.5 for RITMO L plus

00640557 Bild
00630152

Pump unit A 2–2.5 powercoat for RITMO L plus

00630152 Bild
00706676

Pump unit A 3-2 powercoat for RITMO L plus

00706676 Bild
