G 4 smart Perfect work for very little investment

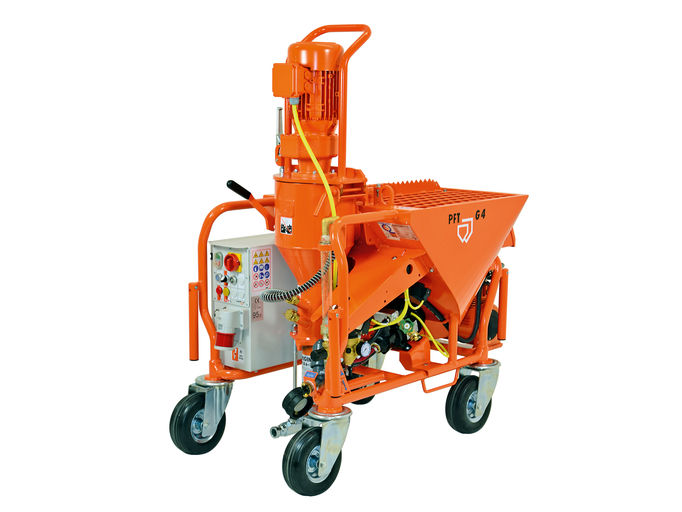

PFT G 4 smart
  • G 4 smart application with bagged material

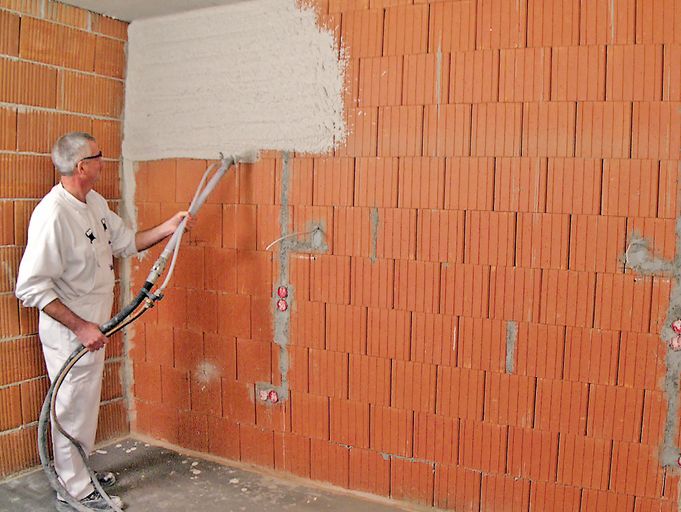

  • G 4 smart application

Mixing pumps - also called plastering machines or mortar pumps - of type PFT G 4 are suitable for all machine-compatible ready-mix dry mortars based on gypsum, lime and cement. The material hopper is separate from the mixing and pumping unit. The G 4, which operates continuously and fully automatically, can be started up and refilled at any time. It can be filled with bagged material but also by means of a delivery hood directly from the silo/container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers a high conveying output and conveying distance and can be combined with the entire PFT machine range. The G 4 smart entry-level model is ideal for users who need to pay attention to their budget, but without compromising on quality. A pressure booster pump is available in the extended scope of delivery.

  • Mixing quality
  • Closed system
  • Easy cleaning

Details

Highlights

  • Control voltage 42 volts
  • Trouble-free operation due to large water fine filter
  • Reinforced tubular frame and robust wheel mount
  • Forklift straps and crane lifting eyes
  • Simple, fast and efficient - loading the machine with material:
    - Direct filling from silo by means of delivery hood
    - Filling with bagged material
    - Pneumatic filling from silo by means of PFT SILOMAT conveying system and injection hood
  • Switches and connections are inside the basic design
  • Flexible mixing intensity thanks to two water inlets
  • Safe transport due to four handles with folding mechanism
  • Perfectly maintenance-friendly - water manifold and pressure switch are easily accessible

Developed especially for the small budget, but with impressive quality.
The PFT G 4 smart performs perfect work for little money.
It offers an efficient and reliable solution in tough daily use, regardless of the challenge.

  • Gypsum plaster
  • Lime/gypsum plaster
  • Cement plaster
  • Insulation
  • Lime-cement render
  • Fango material
  • Insulating plaster
  • Filling plasters
  • Masonry mortar
  • Floor screed
  • Liquid filler
  • Adhesive and reinforcing mortar

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS76_en PFT G 4 smart Feb. 2021 Brochure
PDF
BAL183_en General safety instructions Mixing pump / Conveying pump Dec. 2021 Safety notice
PDF
BAL47_en PFT G 4 smart Sep. 2022 Operating instructions
PDF
P13_en Ersatzteilposter PFT G 4 smart Jul. 2018 Spare parts list
PDF
ET36 G 4: Spraying gun (00136624) May 2020 Spare parts list
PDF

Technical data

  • G 4 smart<br>400 V, 3 Ph, 50 Hz Produktbild

    G 4 smart
    400 V, 3 Ph, 50 Hz

    Part no. :
    00257359
    with pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    30 m in DN25

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.75 kW, 28 rpm

    Mixing tube:
    Mixing tube without adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. Water pump control unit

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    285 kg

    Basic equipment package :

    Pump unit:
    D 6-3 wf · 20 l/min · 30 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Water pump for pressure boosting:
    AVO 500
    400 V, 3 Ph, 50 Hz, 0.37 kW

    Water flow meter:
    100 – 1,000 l/h

    Air compressor:
    COMP M-250-X0 handy, 400 V,
    3 Ph, 50 Hz, 0.9 kW, 250 l/min -
    max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    smartline DN25 F14 200 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • G 4 smart<br/>400 V, 3 Ph, 50 Hz Produktbild

    G 4 smart
    400 V, 3 Ph, 50 Hz

    Part no. :
    00260622
    without pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    30 m in DN25

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.75 kW, 28 rpm

    Mixing tube:
    Mixing tube without adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. Water pump control unit

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    285 kg

    Basic equipment package :

    Pump unit:
    D 6–3 mf · 20 l/min · 30 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    100 – 1,000 l/h

    Air compressor:
    COMP M-250-X0 handy, 400 V,
    3 Ph, 50 Hz, 0.9 kW, 250 l/min -
    max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    smartline DN25 F14 200 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more

Equipment / Accessories

Equipment

  • G 4 smart<br>400 V, 3 Ph, 50 Hz Produktbild

    G 4 smart
    400 V, 3 Ph, 50 Hz

    Part no. :
    00257359
    with pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Star wheel drive 0.75 kW, 28 rpm – conveying output: 35 l/min
    • Material hopper
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • 42 volts control voltage for maximum operational reliability
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Suction and pressure flanges supports the use of D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections in the control box:
      BLA 4-16 | H 4 | RED 4-16 | BLU 2-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4 ") – required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Flexible mixing intensity thanks to two water inlets
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor D 6–3 / Stator D 6–3 mf
      Pump capacity: max. 20 l/min, 30 bar,
      up to 30 m conveying distance in DN25
    • Water pump as pressure booster pump
      AVO 500, 400 V, 3 Ph, 50 Hz, 0.37 kW
    • Water flow meter 100 – 1,000 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose DN25 male part | Geka
    • Spraying gun smartline DN25 F14 200 Geka
    • Air compressor COMP M-250-X0 handy,
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min with pressure control

    Show more
  • G 4 smart<br>400 V, 3 Ph, 50 Hz Produktbild

    G 4 smart
    400 V, 3 Ph, 50 Hz

    Part no. :
    00260622
    without pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Star wheel drive 0.75 kW, 28 rpm – conveying output: 35 l/min
    • Material hopper
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • 42 volts control voltage for maximum operational reliability
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Suction and pressure flanges supports the use of D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections in the control box:
      BLA 4-16 | H 4 | RED 4-16 | BLU 2-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4 ") – required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Flexible mixing intensity thanks to two water inlets
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor D 6–3 / Stator D 6–3 mf
      Pump capacity: max. 20 l/min, 30 bar,
      up to 30 m conveying distance in DN25
    • Water flow meter 100 – 1,000 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose DN25 male part | Geka
    • Spraying gun smartline DN25 F14 200 Geka
    • Air compressor COMP M-250-X0 handy,
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min with pressure control

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

00021119

Description

RONDO DN35 – 13.3 m

00021119 Bild
Part no.

00021105

Description

RONDO DN35 – 20 m

00021105 Bild
Part no.

00021123

Description

RONDO DN35 pouring hose – 13.3 m

00021123 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211300

Description

Air hose DN12 (1/2") Geka | Geka – 15 m

20211300 Bild

Useful extras

Part no.
Description

20600213

Injection hood

  • Including level indicator
  • Including extension for remote control cable – 25 m + 50 m

20600213 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00493481

Water pump as pressure booster pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: For mounting on the machine

00493481 Bild
00492679

Water pump as suction pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: Free-standing

00492679 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00414337

COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414337 Bild
00414866

COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414866 Bild
00680923

COMP P-200, 400 V, 3 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.8 bar with pressure switch-off

00680923 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
20104310

Consistency checking tube DN35 male part

20104310 Bild
00447911

Conversion kit to rubber mixing tube consisting of:

  • Rubber mixing tube
  • Rubber mixing zone D-/R-Pump
  • Suction flange D-pump

00447911 Bild

Video

Accessories

Similar Products
