HM 2006 Perfect mixing quality at the touch of a button

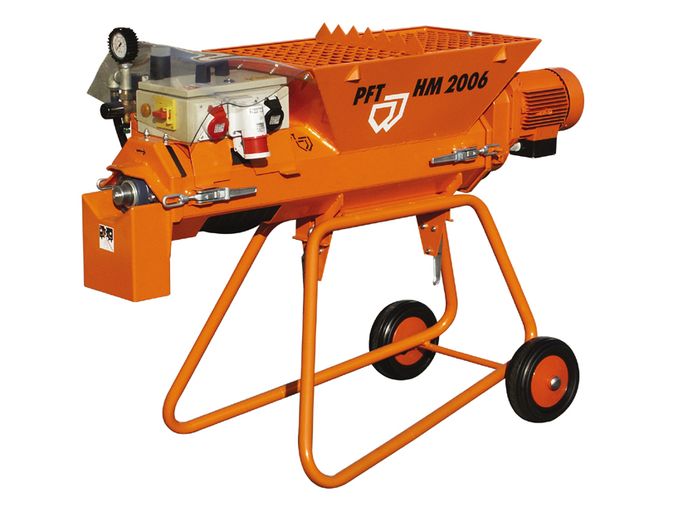

PFT HM 2006
  • PFT construction site HM 2006

The horizontal PFT screw mixers of the HM series - also called mortar mixers - continuously and fully automatically mix all ready-mix dry mortars based on cement (e.g. masonry mortar, jointing mortar, levelling compounds, adhesive/reinforcing mortar) to produce an application-ready material. All-round qualities, easy to work with and maintenance-friendly belt drive characterise the machine. Depending on the series version, screw mixers can be used either with bagged goods only, or optionally with bagged or silo goods or only with silo goods. The HM 2006 400V version is a tried and tested, particularly powerful screw mixer for bagged goods. Alternatively, the machine can also be mounted under a silo/container using a delivery hood. The HM 2006 400V is equipped with a rubber mixing tube and has an integrated control with solenoid valve. Also available as 230 V and 400 V version.

  • Simple operation
  • Open system
  • Mixing quality

Details

  • Low filling height
  • Protected quick closure
  • Minimal maintenance and cleaning expenses
  • Rubber mixing tube
  • Ideally suited for processing adhesive mortar
  • Hardly any caking of the material
  • Improved mixing quality
  • Easy and thorough cleaning
  • Low wear
  • Cost-effective wearing part
  • The machine can also be mounted under a silo / container by means of a delivery hood
  • Sturdy construction
  • Simple operation
  • Removable pedestal
  • Separate control unit
  • Reach-in protected mortar outlet
  • Maintenance-free square external bearing
  • Easy to dismantle into individual parts for convenient transport

The screw mixer can be connected directly under a silo/container by means of a delivery hood.
The lightweight and portable modules make the mixer the perfect addition to the construction site.

  • Masonry mortar
  • Jointing mortar
  • Plastering mortar
  • Screed mortar
  • Adhesive and reinforcing mortar
  • Levelling compounds

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS34_de PFT HM 2006, 400 V Jul. 2020 Brochure
PDF
DS152_de PFT HM 2006, 230 V Jul. 2020 Brochure
PDF
BAL94_de PFT HM 2006 Dec. 2016 Operating instructions
PDF
BAL185_en General safety instructions Horizontal screw mixer Dec. 2021 Safety notice
PDF
SP09 HM 2006 Dec. 2016 Expert inspection
PDF

Technical data

  • HM 2006<br>230 V, 1 Ph, 50 Hz Produktbild

    HM 2006
    230 V, 1 Ph, 50 Hz

    Part no. :
    00072620
    Performance :

    Mixing capacity:
    20 – 35 l/min

    Maximum grain size:
    4 mm

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2 kW

    Drive motor:
    2 kW, 280 rpm

    Mixing tube:
    Rubber mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,000 mm

    Hopper volume:
    110 litres ~ 3.5 sacks (at 30 kg)

    Outlet height:
    650 mm

    Length/Width/Height:
    1,650/650/1,000 mm

    Total weight:
    123 kg

    Basic equipment package :

    Water flow meter:
    With pressure gauge

    Dosing shaft:
    35 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Possible through delivery hood

    Show more
  • HM 2006<br>400 V, 3 Ph, 50 Hz Produktbild

    HM 2006
    400 V, 3 Ph, 50 Hz

    Part no. :
    00068693
    Performance :

    Mixing capacity:
    20 – 50 l/min

    Maximum grain size:
    6 mm

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 4 kW

    Drive motor:
    4 kW, 280 rpm

    Mixing tube:
    Rubber mixing tube

    Pedestal:
    Removable

    Wheels:
    2 rollers

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    1,000 mm

    Hopper volume:
    110 litres ~ 3.5 sacks (at 30 kg)

    Outlet height:
    650 mm

    Length/Width/Height:
    1,650/650/1,000 mm

    Total weight:
    123 kg

    Basic equipment package :

    Water flow meter:
    With pressure gauge

    Dosing shaft:
    35 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Possible through delivery hood

    Show more

Equipment / Accessories

Equipment

  • HM 2006<br>230 V, 1 Ph, 50 Hz Produktbild

    HM 2006
    230 V, 1 Ph, 50 Hz

    Part no. :
    00072620
    Basic equipment :

    • Drive motor 2 kW, 280 rpm
    • Bagged material and silo mixer
    • Rubber mixing tube
    • Material hopper, capacity
      110 litres ~ 3.5 sacks (30 kg)
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected mortar outlet
    • Water volume controllable via pressure gauge
    • Easy to transport

    Basic equipment package :

    • Dosing shaft 35 l/min

    Show more
  • HM 2006<br>400 V, 3 Ph, 50 Hz Produktbild

    HM 2006
    400 V, 3 Ph, 50 Hz

    Part no. :
    00068693
    Basic equipment :

    • Drive motor 4 kW, 280 rpm
    • Bagged material and silo mixer
    • Rubber mixing tube
    • Material hopper, capacity
      110 litres ~ 3.5 sacks (30 kg)
    • Water connection DN12 (1/2 ") – required working pressure 2.5 bar
    • Simple operation
    • Minimal maintenance and cleaning expenses
    • Reach-in protected mortar outlet
    • Water volume controllable via pressure gauge
    • Easy to transport

    Basic equipment package :

    • Dosing shaft 35 l/min

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 2-16 A – 25 m (230 V/1 Ph)

20423420 Bild
Part no.

20423350

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 50 m (400 V/3 Ph)

20423350 Bild
Part no.

00089158

Description

Water hose/air hose DN19 (3/4") Geka | Geka – 20 m

00089158 Bild

Useful extras

Part no.
Description

00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
20211100

Water hose/air hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00500593

Retrofit kit for water flow meter 100 – 1,000 l/h for HM 2006

00500593 Bild
