G 4 FC-230V Unbeatable in the renovation sector - 230 volt technology

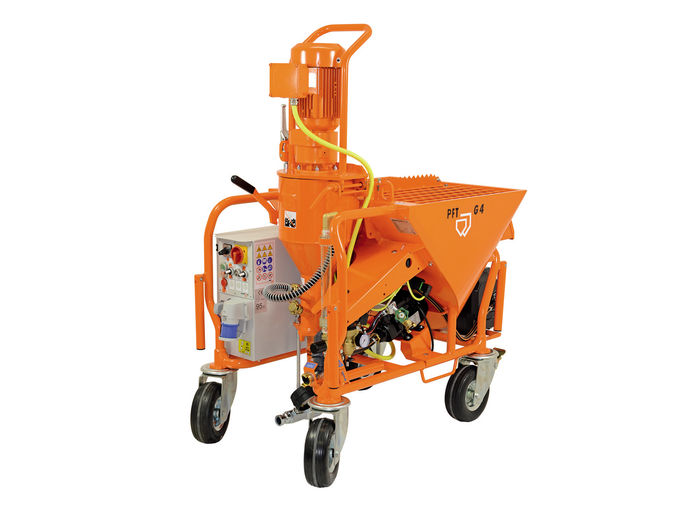

PFT G 4 FC-230V
  • G 4 FC-230V application with bagged material

Mixing pumps - also called plastering machines or mortar pumps - of type PFT G 4 are suitable for all machine-compatible ready-mix dry mortars based on gypsum, lime and cement. The material hopper is separate from the mixing and pumping unit. The G 4, which operates continuously and fully automatically, can be started up and refilled at any time. It can be filled with bagged material but also by means of a delivery hood directly from the silo/container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers a high conveying output and conveying distance and can be combined with the entire PFT machine range. The FC-230V version is ideal for refurbishment and renovation works. A frequency converter (FC) for infinitely variable speed control and torque amplification.

  • 230V standard power socket
  • Mixing quality
  • Easy cleaning
  • Closed system

Details

  • Switches and connections are inside the basic design
  • Reinforced tubular frame and robust wheel mount
  • Forklift straps and crane lifting eyes
  • Deflector plate - Reduction of dust load
  • Large control box - easy to maintain and dust protected
  • Simple, fast and efficient - loading the machine with material:
    - Direct filling from silo by means of delivery hood
    - Filling with bagged material
    - Pneumatic filling from silo by means of PFT SILOMAT conveying system
  • Trouble-free operation due to large water fine filter
  • Practical transport lock for the mixing tube, reduces the machine height
  • Mixing tube without adaptable flange for D-pumps
  • Flexible mixing intensity thanks to two water inlets
  • Frequency converter (FC) for infinitely variable speed control
  • Safe transport due to four handles with folding mechanism
  • Perfectly maintenance-friendly - water manifold and pressure switch are easily accessible

The options for enhancing the wall surface are tremendous.
Modern processing techniques allow great products to be created from gypsum and lime-cement mortars during renovation and conversion work. Plastering, filling, finishing - whatever you are planning, and all with 230 Volt.

  • Gypsum/gypsum lime plaster
  • Lime-cement render
  • Light plaster
  • Bonding/reinforcing mortar
  • Frame grouting mortar
  • Scratch coat
  • Floor screed
  • Clay plaster
  • Masonry mortar
  • Finishing coat
  • Insulating plaster
  • Fire protection mortar
  • Floor fillers

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS39_de Serienprospekt PFT G 4 Nov. 2017 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL46_de PFT G 4 FC-230V Sep. 2022 Bedienungsanleitung
PDF
ET05 G 4: Mischrohr G 4, 5,5 kW, SD 6-3 slimline (00402118) May 2021 Ersatzteilliste
PDF
ET08 G 4: Mischrohr SD 6-3 slimline (00438524) Mar. 2022 Ersatzteilliste
PDF
ET09 G 4: Mischrohr mit Windleitblech, SD 6-3 slimline (00439998) Mar. 2022 Ersatzteilliste
PDF
ET14 G 4 FC-230V: Schaltschrank (00254664) Apr. 2020 Ersatzteilliste
PDF
ET85 G 4 FC-230V mit Sonde: Schaltschrank (00594464) Apr. 2020 Ersatzteilliste
PDF
ET12 G 4 FC-230V 60 Hz: Schaltschrank (00430003) Apr. 2020 Ersatzteilliste
PDF
ET21 G 4: Armaturenblock (00422474) May 2020 Ersatzteilliste
PDF
ET25 G 4: Druckerhöhungspumpe AVO 500, 230 V (00260662) May 2020 Ersatzteilliste
PDF
ET22 G 4: Druckerhöhungspumpe AV 1000 1, 230V 60Hz (00517702) May 2020 Ersatzteilliste
PDF
ET27 G 4: Halterung Absperrhahn - Schmutzfänger (00401343) May 2020 Ersatzteilliste
PDF
ET28 G 4: Schmutzfänger 3/4 Zoll (00257387) May 2020 Ersatzteilliste
PDF
ET29 G 4: Wasseranschluss, Wasserdurchflussmesser 100 - 1000 l/h May 2020 Ersatzteilliste
PDF
ET30 G 4: Wasseranschluss, Wasserdurchflussmesser 150 - 1500 l/h May 2020 Ersatzteilliste
PDF
ET31 G 4: Luftarmatur (00422464) May 2020 Ersatzteilliste
PDF
ET36 G 4: Feinputzgeräte (00136624) May 2020 Ersatzteilliste
PDF
ET86 G 4: Mörteldruckschlauch May 2020 Ersatzteilliste
PDF
ET37 G 4: Materialbehälter mit Anbauteile ab 05/2014 Jun. 2020 Ersatzteilliste
PDF
ET38 G 4: Materialbehälter mit Anbauteile ab 05/2019 May 2021 Ersatzteilliste
PDF

Technical data

  • G 4 FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    G 4 FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00268143
    with pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    15 m in DN25

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 4 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 4 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.3 kW, 12 rpm

    Mixing tube:
    Mixing tube without adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castor

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. water pump control unit and infinitely variable speed control

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    287 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Water pump for pressure boosting:
    AVO 500
    230 V, 1 Ph, 50 Hz, 0.37 kW

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph, 50 Hz,
    0.5 kW, 200 l/min - max. 3.4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    smartline DN25 F14 200 Geka

    Connection cable:
    3 x 4 mm², BLU 3-32 A – 25 m adapter cable
    BLU 3-32 A – 25 m | BLU 2-16 A – 1 m

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • G 4 FC-230V<br/>230 V, 1 Ph, 50 Hz  Produktbild

    G 4 FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00402118
    without pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    15 m in DN25

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.3 kW, 12 rpm

    Mixing tube:
    Mixing tube without adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castor

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. water pump control unit and infinitely variable speed control

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    289 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    100 – 1,000 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph, 50 Hz,
    0.5 kW, 200 l/min - max. 3.4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    smartline DN25 F14 200 Geka

    Connection cable:
    3 x 4 mm², BLU 3-32 A – 25 m adapter cable
    BLU 3-32 A – 25 m | BLU 2-16 A – 1 m

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more

Equipment / Accessories

Ausstattung

  • G 4 FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    G 4 FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00268143
    with pressure booster pump
    Basic equipment :

    • Pump drive 4 kW, 400 rpm
    • Star wheel drive 0.3 kW, 12 rpm –
      Conveying output: 35 l/min
    • Material hopper,
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Suction and pressure flanges supports the use of D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections at the control box:
      GRE 2-16 | H 4 | BLU 2-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4") –
      Required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Reduced initial current
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Flexible mixing intensity thanks to two water inlets
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: max. 20 l/min, 25 bar, up to 15 m conveying distance with DN25
    • Water pump as pressure booster pump
      AVO 500, 230 V, 1 Ph, 50 Hz, 0.37 kW
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN25 male part | Geka
    • Spraying gun smartline DN25 F14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control
    • Connection cable 3 x 4 mm², BLU 3-32 A – 25 m
    • Adapter cable BLU 3-32 A | BLU 2-16 A – 1 m

    Show more
  • G 4 FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    G 4 FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00402118
    without pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Star wheel drive 0.3 kW, 12 rpm –
      Conveying output: 35 l/min
    • Material hopper,
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN25 male part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Suction and pressure flanges supports the use of D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections at the control box:
      GRE 2-16 | H 4 | BLU 2-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4") –
      Required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
    • Powerful and reliable operation via standard power socket
    • Flexible mixing intensity thanks to two water inlets
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: max. 20 l/min, 25 bar, up to 15 m conveying distance with DN25
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN25 male part | Geka
    • Spraying gun smartline DN25 F14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control
    • Connection cable 3 x 4 mm², BLU 3-32 A – 25 m
    • Adapter cable BLU 3-32 A | BLU 2-16 A – 1 m

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

00063340

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 25 m (230 V/3 Ph)

00063340 Bild
Part no.

00063341

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 50 m (230 V/3 Ph)

00063341 Bild
Part no.

00109440

Description

Extension cable 3 x 4 mm², BLU 3-32 A – 25 m (230 V/1 Ph)

00109440 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

00021119

Description

RONDO DN35 – 13.3 m

00021119 Bild
Part no.

00021105

Description

RONDO DN35 – 20 m

00021105 Bild
Part no.

00021123

Description

RONDO DN35 pouring hose – 13.3 m

00021123 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211300

Description

Air hose DN12 (1/2") Geka | Geka – 15 m

20211300 Bild

Useful extras

Part no.
Description

20600213

Injection hood

  • Including level indicator
  • Including extension for remote control cable – 25 m + 50 m

20600213 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00497368

Water pump as suction pump
AV 1000, 230 V, 1 Ph, 50 Hz, 0.6 kW
Note: Free-standing

00497368 Bild
00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00196221

COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.4 bar with pressure switch-off

00196221 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
20104310

Consistency checking tube DN35 male part

20104310 Bild
00447911

Conversion kit to rubber mixing tube consisting of:

  • Rubber mixing tube
  • Rubber mixing zone D-/R-Pump
  • Suction flange D-pump

00447911 Bild

Video
