Conveying output, max.:
35 l/min

Conveying distance up to:
30 m in DN25
50 m in DN35

Connection value:
400V/3ph/50Hz, C 25A all-pole

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.75 kW, 28 rpm

Mixing tube:
Steel mixing tube for D pumps

Mixing shaft:
BIONIK G 4 Machine-applied plaster

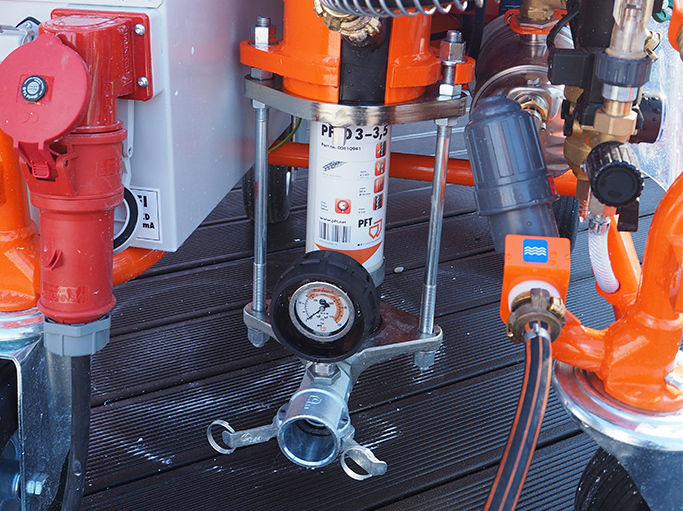

Grout outlet with mortar pressure gauge:
DN25 male part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 287 kg

Pump unit:
D 6-3 PERFORMER

Mortar hose:
RONDO DN25 - 10 m

Water pump for pressure boosting:
AVO 500

Water flow meter:
100 – 1,000 l/h

Air compressor:
COMP M-250, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun smartline DN25 F14 200 Geka

Connection cable:
RED 5-32 A 25 m

Water hose/air hose:
Water hose 3/4" Geka - 10 m
Air hose 1/2" Ewo | Geka - 11 m

Level sensor

retrofittable

Conveying output, max.:
35 l/min

Conveying distance up to:
15 m in DN25

Connection value:
230V/1ph/50Hz, C 16A

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.30 kW, 12 rpm

Mixing tube:
Steel mixing tube for D pumps

Mixing shaft:
BIONIK G 4 Machine-applied plaster

Grout outlet with mortar pressure gauge:
DN25 male part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)

without accessories
~ 277 kg

Pump unit:
SD 6-3 PERFORMER

Mortar hose:
RONDO DN25 - 10 m

Water pump for pressure boosting:
AVO 500

Water flow meter:
100 – 1,000 l/h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.4 bar with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun smartline DN25 F14 200 Geka

Connection cable:
BLU 3-32 A 25 m
Adapter cable BLU 3-32A | Schuko

Water hose/air hose:
Water hose 3/4" Geka - 10 m
Air hose 1/2" Ewo | Geka - 11 m

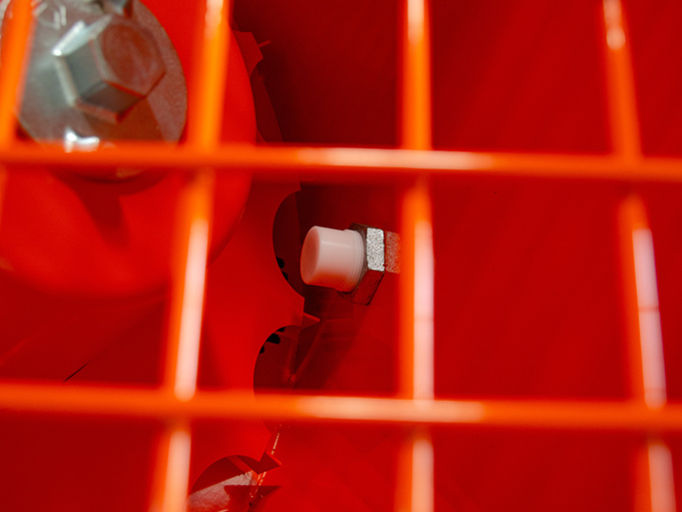

Level sensor
retrofittable

Conveying output, max.:
60 l/min

Conveying distance up to:
30 m in DN25
50 m in DN35

Connection value:
400V/3ph/50Hz, C 25A all-pole

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.75 kW, 28 rpm

Mixing tube:
Rubber mixing tube for D/R pumps
with bayonet coupling

Mixing shaft:
BIONIK G 4 Machine-applied plaster

Grout outlet with mortar pressure gauge:
DN35 female part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 284 kg

Pump unit:
D 6-3 TWISTER

Mortar hose:
RONDO DN25 10m
RONDO superlight flex DN25 5 m

Water pump for pressure boosting:
AV 1000

Water flow meter:
150 – 1,500 l/h

Air compressor:
COMP M-250, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun DN25-360° S14 200 Geka

Connection cable:
RED 5-32 A 25 m

Water hose/air hose:
Water hose 3/4" Geka - 40 m
Air hose 1/2" Ewo | Geka - 16 m

Level sensor:
retrofittable

Conveying output, max.:
60 l/min

Conveying distance up to:
30 m in DN25
50 m in DN35

Connection value:
400V/3ph/50Hz, C 25A all-pole

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.75 kW, 28 rpm

Mixing tube:
Rubber mixing tube for D/R pumps
with bayonet coupling

Mixing shaft:
BIONIK G 4 Machine-applied plaster

Grout outlet with mortar pressure gauge:
DN35 female part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 275 kg

Pump unit:
D 6-3 TWISTER

Mortar hose:
RONDO DN25 10 m
RONDO superlight flex DN25 5 m

Water pump for pressure boosting:
Not included

Water flow meter:
150 – 1,500 l/h

Air compressor:
COMP M-250, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun DN25-360° S14 200 Geka

Connection cable:
RED 5-32 A 25 m

Water hose/air hose:
Water hose 3/4" Geka - 40 m
Air hose 1/2" Ewo | Geka - 16 m

Level sensor:
retrofittable

Conveying output, max.:
35 l/min (230V)
60 l/min (400V)

Conveying distance up to:
15 m in DN25 (230 V)
30 m in DN25 (400 V)
50 m in DN35 (400 V)

Connection value:
400V/3ph/50Hz, C 25A all-pole
230V/1ph/50Hz, C 16A

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.30 kW, 12 rpm

Mixing tube:
Rubber mixing tube for D/R pumps
with bayonet coupling

Mixing shaft:
BIONIK G 4 Machine-applied plaster

Grout outlet with mortar pressure gauge:
DN35 female part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 271 kg

Pump unit:
SD 6-3 Slimline

Mortar hose:
RONDO DN25 10 m
RONDO superlight flex DN25 5 m

Water pump for pressure boosting:
AV 1000

Water flow meter:
150 – 1,500 l/h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l/min - max. 3.4 bar
with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun DN25-360° S14 200 Geka

Connection cable:
RED 5-32 25 m
Adapter cable RED 5-32 | Schuko

Water hose/air hose:
Water hose 3/4" Geka - 40 m
Air hose 1/2" Ewo | Geka - 16 m

Level sensor:
Installed ex works

Conveying output, max.:
35 l/min (230V)
60 l/min (400V)

Conveying distance up to:
15 m in DN25 (230 V)
30 m in DN25 (400 V)
50 m in DN35 (400 V)

Connection value:
400V/3ph/50Hz, C 25A all-pole
230V/1ph/50Hz, C 16A

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.30 kW, 12 rpm

Mixing tube:
Rubber mixing tube for D/R pumps
with bayonet coupling

Mixing shaft:
BIONIK G 4 Machine-applied plaster

Grout outlet with mortar pressure gauge:
DN35 female part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 262 kg

Pump unit:
SD 6-3 PERFORMER

Mortar hose:
RONDO DN25 10 m
RONDO superlight flex DN25 5 m

Water pump for pressure boosting:
Not included

Water flow meter:
150 – 1,500 l/h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l/min - max. 3.4 bar
with pressure switch-off

Spraying gun/fine plastering device:
Spraying gun DN25-360° S14 200 Geka

Connection cable:
RED 5-32 25 m
Adapter cable RED 5-32 | Schuko

Water hose/air hose:
Water hose 3/4" Geka - 40 m
Air hose 1/2" Ewo | Geka - 16 m

Level sensor:
Installed ex works

Conveying output, max.:
80 l/min

Conveying distance up to:
30 m in DN25
50 m in DN35

Connection value:
400V/3ph/50Hz, C 25A all-pole

Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.75 kW, 28 rpm

Mixing tube:
Rubber mixing tube for D/R pumps with bayonet coupling

Mixing shaft:
BIONIK G 4 floor screed

Grout outlet with mortar pressure gauge:
DN35 male part

Wheels:
2 castors, 2 double-stop castors

Water connection:
Geka DN19 (3/4") - 2.5 bar working pressure

Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic

Filling height:
910 mm

Hopper volume:
145 litres ~ 5 sacks (at 30 kg)

Length/Width/Height:
1,200/720/1,530 mm

Machine weight (up to pressure flange)
without accessories
~ 267 kg

Pump unit:
R 8-1.5 SOLVER

Mortar hose:
RONDO DN35 pouring hose - 20 m

Water pump for pressure boosting:
AV 1000

Water flow meter:
250 - 2,500 l/h

Connection cable:
RED 5-32 A 25 m

Water hose/air hose:
Water hose 3/4" Geka - 40 m
Air hose not included

Level sensor:
Installed ex works
