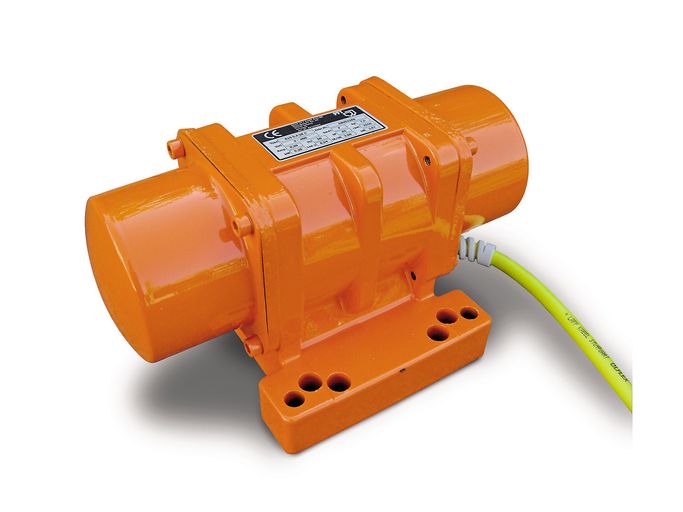

External vibrator

External vibrator

An agitator / external vibrator ensures a consistent material flow in the silo and supports the reliable discharge of dry building materials. It is mounted on the outside of the silo and used specifically to reduce bridging, material build-up and compaction in the discharge area. This helps to improve conveying performance and keeps the material supply to the machine as constant as possible.

The vibrator is designed for connection to PFT machines and is controlled directly via the machine. This allows easy integration into site operations without the need for a separate control unit. Activation is coordinated with the machine’s operation, enabling the external vibrator to run as required.

Details

  • Vibration strength manually adjustable
  • Low weight
  • Stable and compact construction
  • Waterproof

Suitable for all site silos.

Special quality features:
Winding, cable guide and terminal box are cast with special casting resin.
The agitator does full justice to the harsh construction site conditions.

Product variants

Equipment

  • A10-2.67 – 8 m Produktbild

    A10-2.67 – 8 m

    Part no. :
    00128606
    Basic equipment :

    • 400 V, 3 Ph, 50 Hz, 0.14 kW
    • Connection cable included
      RED 4-16 A – 8 m
    • Agitation force 2.67 KN
    • Total weight 8.5 kg
    • Suitable for:
      Material silos when using
      - SILOMAT systems
      - Screw mixers
      - Mixing pumps

    Show more
  • AM3-0.44 – 2 m Produktbild

    AM3-0.44 – 2 m

    Part no. :
    00402153
    Basic equipment :

    • 400 V, 3 Ph, 50 Hz, 0.5 kW
    • Extension cable included
      RED 4-16 A – 2 m
    • Agitation force 0.44 KN
    • Total weight 2 kg
    • Suitable for:
      - Extension hopper ZP 3 XL
      - Extension hopper ZP 3 XXL
      - Vibrating screen ZP 3 L

    Show more
  • A5-0.3 – 1.2 m Produktbild

    A5-0.3 – 1.2 m

    Part no. :
    00773374
    Basic equipment :

    • 230 V, 1 Ph, 50 Hz, 0.05 kW
    • Connection cable included
      BLA 2-16 A – 1.2 m
    • Agitation force 0.30 KN
    • Total weight 1.80 kg
    • Suitable for:
      - Material hopper RITMO L
      - Material hopper RITMO L plus

    Show more
  • A12-1.6 – 8 m Produktbild

    A12-1.6 – 8 m

    Part no. :
    00866397
    Basic equipment :

    • 230 V, 1 Ph, 50 Hz, 0.14 kW
    • Connection cable included
      BLU 2-16 A – 8 m
    • Agitation force 1.9 KN
    • Total weight 6.8 kg
    • Suitable for:
      PFT MINITAINER and material silos when using
      - SILOMAT systems
      - Screw mixers
      - Mixing pumps

    Show more
