Knauf PFT - HM 24 screw mixer

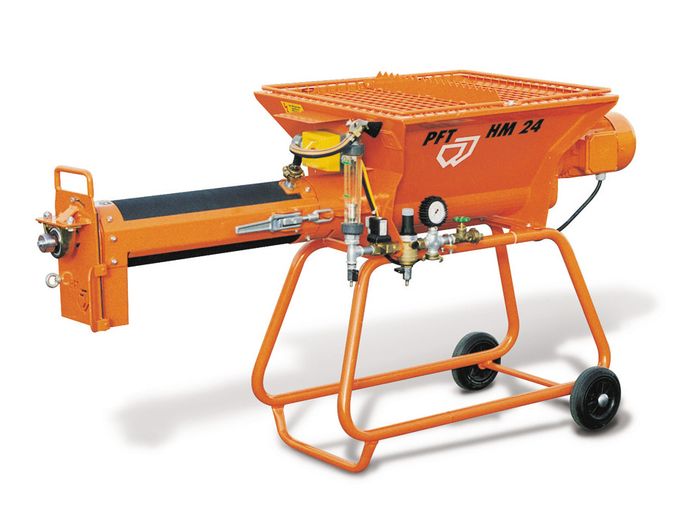

HM 24 The clever mixer for bagged and silo goods

The horizontal PFT screw mixers of the HM series - also called mortar mixers - continuously and fully automatically mix all ready-mix dry mortars based on cement (e.g. masonry mortar, jointing mortar, levelling compounds, adhesive/reinforcing mortar) to produce an application-ready material. All-round qualities, easy to work with and maintenance-friendly belt drive characterise the machine. Depending on the series version, screw mixers can be used either with bagged goods only, or optionally with bagged or silo goods or only with silo goods. The HM 24 400V is the all-rounder among PFT screw mixers. Not only can the machine be used to process any lime and cement-based ready-mix dry mortar with a grain size of up to 4 mm; thanks to PFT modular technology, the machine is set up for the desired filling in no time at all, be it bagged goods, silo/container or pneumatic filling by means of an injection hood and PFT SILOMAT conveying system.

Details

Removable mortar outlet
Water manifold with pressure reducer
Perfect interaction between screw mixer and delivery pump
Silo/container transfer possible by means of delivery hood (part no. 20 60 05 00)
Minimal maintenance and cleaning expenses
Easy to transport
Phase inverter in connecting plug
Rubber mixing tube: No material caking
Simple operation
Consistent mixing quality

The all-rounder among screw mixers. Ideally suited for processing adhesive mortars.
And outstanding thanks to easy handling.

Masonry mortar
Light masonry mortar
Reinforcing mortar
Scratch coat
Cement plaster
Insulating plasters
Screed mortar
Levelling compounds
Adhesive mortar
Textured plaster
Reconstruction plaster
Tiling and jointing mortar
Finishing plaster

Downloads

Please find further downloads and languages here.

Description	Edition	Document type
DS35_en PFT HM 24	Oct. 2022	Brochure	PDF
BAL185_en General safety instructions Horizontal screw mixer	Dec. 2021	Safety notice	PDF
BAL99_en PFT HM 24	Oct. 2023	Operating instructions	PDF

Technical data

HM 24
400 V, 3 Ph, 50 Hz, 3 kW
Part no. :
00020357
Performance :
Mixing capacity:
20 – 50 l/min
Maximum grain size:
6 mm
Basic equipment :
Connection value:
400 V, 3 Ph, 50 Hz, 3 kW

Drive motor:
3 kW, 280 rpm
Mixing tube:
Rubber mixing tube
Pedestal:
Static
Wheels:
2 rollers
Water connection:
Geka DN12 (1/2") – 2.5 bar working pressure
Operation and control:
Start/Stop
Dimensions :
Filling height:
970 mm
Hopper volume:
110 litres ~ 3.5 sacks (at 30 kg)
Outlet height:
650 mm
Length/Width/Height:
1,870/670/970 mm
Total weight:
110 kg
Basic equipment package :
Water flow meter:
100 – 1,000 l/h
Dosing shaft:
35 l/min
Pressure booster pump:
Not included

Connection cable:
Not included
Water hose/air hose:
Not included
Silo/container handover:
Possible through delivery hood
Show more
HM 24 for fill level sensor
400 V, 3 Ph, 50 Hz, 3 kW
Part no. :
00070219
Performance :
Mixing capacity:
20 – 50 l/min
Maximum grain size:
6 mm
Basic equipment :
Connection value:
400 V, 3 Ph, 50 Hz, 3 kW
Control voltage: 42 V
Drive motor:
3 kW, 280 rpm
Mixing tube:
Rubber mixing tube
Pedestal:
Static
Wheels:
2 rollers
Water connection:
Geka DN12 (1/2") – 2.5 bar working pressure
Operation and control:
Start/Stop
Dimensions :
Filling height:
970 mm
Hopper volume:
110 litres ~ 3.5 sacks (at 30 kg)
Outlet height:
650 mm
Length/Width/Height:
1,870/670/970 mm
Total weight:
113 kg
Basic equipment package :
Water flow meter:
100 – 1,000 l/h
Dosing shaft:
35 l/min
Pressure booster pump:
AVO 500
230 V, 1 Ph, 50 Hz, 0.37 kW
Connection cable:
Not included
Water hose/air hose:
Not included
Silo/container handover:
Possible through delivery hood
Show more
HM 24
400 V, 3 Ph, 50 Hz, 5.5 kW
Part no. :
00010127
Performance :
Mixing capacity:
25 – 80 l/min
Maximum grain size:
6 mm
Basic equipment :
Connection value:
400 V, 3 Ph, 50 Hz, 5.5 kW

Drive motor:
5.5 kW, 292 rpm
Mixing tube:
Steel mixing tube
Pedestal:
Static
Wheels:
2 rollers
Water connection:
Geka DN12 (1/2") – 2.5 bar working pressure
Operation and control:
Start/Stop
Dimensions :
Filling height:
970 mm
Hopper volume:
110 litres ~ 3.5 sacks (at 30 kg)
Outlet height:
650 mm
Length/Width/Height:
1,870/670/970 mm
Total weight:
110 kg
Basic equipment package :
Water flow meter:
100 – 1,000 l/h
Dosing shaft:
35 l/min
Pressure booster pump:
AVO 500
400 V, 3 Ph, 50 Hz, 0.37 kW
Connection cable:
Not included
Water hose/air hose:
Not included
Silo/container handover:
Possible through delivery hood
Show more

Equipment / Accessories

Equipment

HM 24
400 V, 3 Ph, 50 Hz, 3 kW
Part no. :
00020357
Basic equipment :
Drive motor 3 kW, 280 rpm
Bagged material mixer
Rubber mixing tube
Material hopper, capacity
110 litres ~ 3.5 sacks (30 kg)
Water connection DN12 (1/2") –
Required working pressure 2.5 bar
Powerful and reliable action
Simple operation
Minimal maintenance and cleaning expenses
Removable mortar outlet
Water manifold with pressure reducer
Easy to transport
Handy and compact
Basic equipment package :
Water flow meter 100 – 1,000 l/h –
for perfect mixing results
Dosing shaft 35 l/min
Show more
HM 24 for fill level sensor
400 V, 3 Ph, 50 Hz, 3 kW
Part no. :
00070219
Basic equipment :
Drive motor 3 kW, 280 rpm
Bagged material mixer
Rubber mixing tube
Material hopper, capacity
110 litres ~ 3.5 sacks**
Tool bag including basic accessories
Water connection DN12 (1/2") –
Required working pressure 2.5 bar
Simple operation
Minimal maintenance and cleaning expenses
Removable special mortar outlet
Water manifold with pressure reducer
Easy to transport
Handy and compact
Connections in the control box:
RED 4-16 | BLA 4-16 | GRE 2-16
Basic equipment package :
Water flow meter 100 – 1,000 l/h –
for perfect mixing results
Dosing shaft 35 l/min
Water pump as pressure booster pump
AVO 500, 230 V, 1 Ph, 50 Hz, 0.37 kW
Possible to connect a filling level sensor
for automatic level monitoring
e.g., of a downstream pump
Connection option for external vibrator for
operation with silo - delivery hood (control)
Show more
HM 24
400 V, 3 Ph, 50 Hz, 5.5 kW
Part no. :
00010127
Basic equipment :
Drive motor 5.5 kW, 292 rpm
Bagged material mixer
Steel mixing tube
Material hopper, capacity
110 litres ~ 3.5 sacks**
Tool bag including basic accessories
Water connection DN12 (1/2") –
Required working pressure 2.5 bar
Simple operation
Minimal maintenance and cleaning expenses
Removable mortar outlet
Water manifold with pressure reducer
Easy to transport
Handy and compact
Basic equipment package :
Water flow meter 100 – 1,000 l/h –
for perfect mixing results
Dosing shaft 35 l/min
Water pump as pressure booster pump
AVO 500, 400 V, 3 Ph, 50 Hz, 0.37 kW
Show more

Necessary accessories for operation

Part no.

Description

Part no.

20423350

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 50 m (400 V/3 Ph)

Part no.

20212100

Description

Water hose/air hose DN19 (3/4") Geka | Geka – 40 m

Useful extras

Part no.

Description

00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required
