G 4 FC-230/400V The flexible one: Sophisticated in the detail - unbeatable in your system

PFT G 4 FC-230/400V

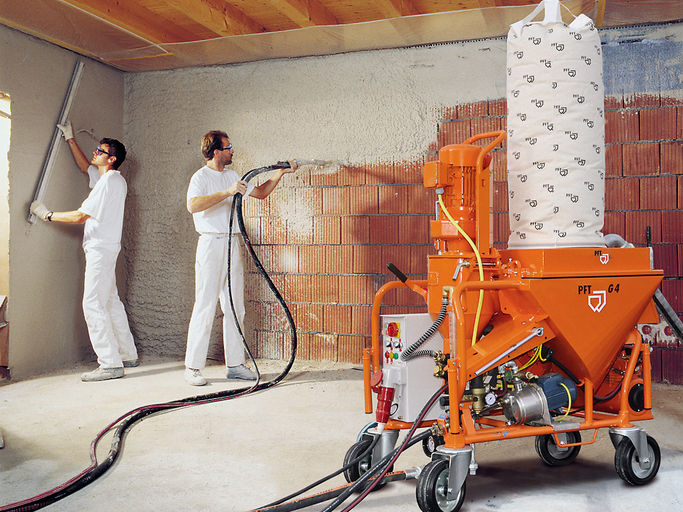

  • G 4 FC-230/400V application with injection hood

Mixing pumps - also called plastering machines or mortar pumps - of type PFT G 4 are suitable for all machine-compatible ready-mix dry mortars based on gypsum, lime and cement. The material hopper is separate from the mixing and pumping unit. The G 4, which operates continuously and fully automatically, can be started up and refilled at any time. It can be filled with bagged material but also by means of a delivery hood directly from the silo/container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers a high conveying output and conveying distance and can be combined with the entire PFT machine range. With the flexible version of the G 4 FC-230/400V with frequency converter, simple switching is sufficient to adjust the output without changing the pump. In operation with a standard power socket, the FC-230/400V is particularly recommended for renovation and refurbishment applications.

  • 230/400V switchable
  • Mixing quality
  • Easy cleaning
  • Closed system

Details

  • Switchable 400 V and 230 V
  • Phase sequence monitoring
  • Rubber mixing zone
  • Easy cleaning - rubber mixing zone with adaptable flange for D and R pumps
  • Reinforced tubular frame and robust wheel mount
  • Forklift straps and crane lifting eyes
  • Deflector plate - Reduction of dust load
  • Large control box - easy to maintain and dust protected
  • Switches and connections are inside the basic design
  • Trouble-free operation due to large water fine filter
  • Practical transport lock for the mixing tube, reduces the machine height
  • Simple, fast and efficient - loading the machine with material:
    - Direct filling from silo by means of delivery hood
    - Filling with bagged material
    - Pneumatic filling from silo by means of PFT SILOMAT conveying system
  • Flexible mixing intensity thanks to two water inlets
  • Frequency converter (FC) for infinitely variable speed control
  • Safe transport due to four handles with folding mechanism
  • Perfectly maintenance-friendly - water manifold and pressure switch are easily accessible

This smart solution supports use with 230 and 400 volt supplies on construction sites.
Use the benefits of both models and increase your machine utilisation.
Through simple changeover you can adapt the pump capacity.

  • Gypsum / gypsum lime plaster
  • Lime-cement render
  • Light plaster
  • Bonding/reinforcing mortar
  • Frame grouting mortar
  • Scratch coat
  • Floor screed
  • Clay plaster
  • Masonry mortar
  • Finishing coat
  • Insulating plaster
  • Fire protection mortar
  • Floor fillers

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS39_de Serienprospekt PFT G 4 Nov. 2017 Prospekt
PDF
DS116_de PFT G 4 FC-230/400V Oct. 2022 Prospekt
PDF
BAL183_de Allgemeine Sicherheitshinweise Mischpumpe / Förderpumpe Dec. 2021 Sicherheitshinweis
PDF
BAL45_de PFT G 4 FC-230/400V Aug. 2022 Bedienungsanleitung
PDF
ET05 G 4: Mischrohr G 4, 5,5 kW, SD 6-3 slimline (00402118) May 2021 Ersatzteilliste
PDF
ET04 G 4: Mischrohr FC-230/400V mit Windleitblech, SD 6-3 slimline (00260621) May 2021 Ersatzteilliste
PDF
ET08 G 4: Mischrohr SD 6-3 slimline (00438524) Mar. 2022 Ersatzteilliste
PDF
ET09 G 4: Mischrohr mit Windleitblech, SD 6-3 slimline (00439998) Mar. 2022 Ersatzteilliste
PDF
ET13 G 4 FC-230/400V: Schaltschrank (00254661) Apr. 2020 Ersatzteilliste
PDF
ET84 G 4 FC-230/400V mit Sonde RAL7035: Schaltschrank (00582482) Apr. 2020 Ersatzteilliste
PDF
ET21 G 4: Armaturenblock (00422474) May 2020 Ersatzteilliste
PDF
ET23 G 4: Druckerhöhungspumpe AV 1000 1, 400 V (00493481) May 2020 Ersatzteilliste
PDF
ET24 G 4: Druckerhöhungspumpe AV 1000, 400 V (00240280) May 2020 Ersatzteilliste
PDF
ET26 G 4: Druckerhöhungspumpe AVO 500, 400 V (00257378) May 2020 Ersatzteilliste
PDF
ET25 G 4: Druckerhöhungspumpe AVO 500, 230 V (00260662) May 2020 Ersatzteilliste
PDF
ET27 G 4: Halterung Absperrhahn - Schmutzfänger (00401343) May 2020 Ersatzteilliste
PDF
ET28 G 4: Schmutzfänger 3/4 Zoll (00257387) May 2020 Ersatzteilliste
PDF
ET30 G 4: Wasseranschluss, Wasserdurchflussmesser 150 - 1500 l/h May 2020 Ersatzteilliste
PDF
ET31 G 4: Luftarmatur (00422464) May 2020 Ersatzteilliste
PDF
ET36 G 4: Feinputzgeräte (00136624) May 2020 Ersatzteilliste
PDF
ET86 G 4: Mörteldruckschlauch May 2020 Ersatzteilliste
PDF
ET37 G 4: Materialbehälter mit Anbauteile ab 05/2014 Jun. 2020 Ersatzteilliste
PDF
ET38 G 4: Materialbehälter mit Anbauteile ab 05/2019 May 2021 Ersatzteilliste
PDF

Technical data

  • G 4 FC-230/400V<br>230/400 V, 3 Ph, 50 Hz Produktbild

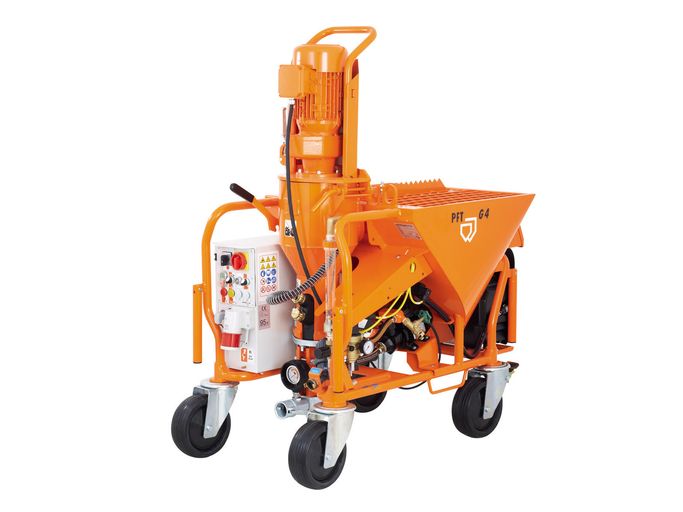

    G 4 FC-230/400V
    230/400 V, 3 Ph, 50 Hz

    Part no. :
    00260621
    with pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    15 m in DN25 (230 V)
    30 m in DN25 (400 V)
    50 m in DN35 (400 V)

    Basic equipment :

    Connection value:
    230/400 V, 1/3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.3 kW, 12 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 castors, 2 double-stop castor

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. water pump control unit and continuously variable speed 230 V

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    290 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Adapter coupling:
    DN35 male part | DN25 male part

    Water pump for pressure boosting:
    AVO 500
    230 V, 1 Ph, 50 Hz, 0.37 kW

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph,
    50 Hz, 0.5 kW, 200 l/min – max. 3.4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    Adapter cable RED 5-32 A | BLU 2-16 A – 1 m

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more
  • G 4 FC-230/400V<br/>230/400 V, 3 Ph, 50 Hz  Produktbild

    G 4 FC-230/400V
    230/400 V, 3 Ph, 50 Hz

    Part no. :
    00423408
    without pressure booster pump
    Performance :

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    15 m in DN25 (230 V)
    30 m in DN25 (400 V)
    50 m in DN35 (400 V)

    Basic equipment :

    Connection value:
    230/400 V, 1/3 Ph, 50 Hz, 5.5 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 5.5 kW, 400 rpm
    2-stage gear box with inclination switch
    Star wheel drive: 0.3 kW, 12 rpm

    Mixing tube:
    Rubber mixing tube with adaptable flange

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN35 female part

    Wheels:
    2 castors, 2 double-stop castor

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Start/stop incl. water pump control unit and continuously variable speed 230 V

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Total weight:
    290 kg

    Basic equipment package :

    Pump unit:
    SD 6–3 slimline · 20 l/min · 25 bar

    Mortar hose:
    RONDO DN25 - 10 m

    Adapter coupling:
    DN35 male part | DN25 male part

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    150 – 1,500 l/h

    Air compressor:
    COMP P-200, 230 V, 1 Ph,
    50 Hz, 0.5 kW, 200 l/min – max. 3.4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN25-360° S14 200 Geka

    Connection cable:
    Adapter cable RED 5-32 A | BLU 2-16 A – 1 m

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m

    Show more

Equipment / Accessories

Ausstattung

  • G 4 FC-230/400V<br>230/400 V, 3 Ph, 50 Hz Produktbild

    G 4 FC-230/400V
    230/400 V, 3 Ph, 50 Hz

    Part no. :
    00260621
    with pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Star wheel drive 0.3 kW, 12 rpm –
      Conveying output: 35 l/min
    • Material hopper,
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN35 female part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Rubber mixing zone, for easy cleaning, with adaptable flange for D and R pump
      Note: Scope of supply: Suction and pressure flange for D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections at the control box:
      GRE 2-16 | H 4 | BLU 3-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4") –
      Required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Deflector plate on motor - prevents whirling currents in the hopper
    • Flexible mixing intensity thanks to two water inlets
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
      Note: Only in 230 V operation
    • Powerful and reliable operation via standard power socket
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: max. 20 l/min, 25 bar,
      230 volts, up to 15 m conveying distance with DN25
      400 volts, up to 30 m conveying distance with DN25
      400 volts, up to 50 m conveying distance with DN35
    • Water pump as pressure booster pump
      AVO 500, 230 V, 1 Ph, 50 Hz, 0.37 kW
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN35 female part | Geka
    • Adapter coupling DN35 male part | DN25 male part
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control
    • Adapter cable RED 5-32 A | BLU 2-16 A – 1 m

    Show more
  • G 4 FC-230/400V<br>230/400 V, 3 Ph, 50 Hz Produktbild

    G 4 FC-230/400V
    230/400 V, 3 Ph, 50 Hz

    Part no. :
    00423408
    without pressure booster pump
    Basic equipment :

    • Pump drive 5.5 kW, 400 rpm
    • Star wheel drive 0.3 kW, 12 rpm –
      Conveying output: 35 l/min
    • Material hopper,
      Capacity 145 litres ~ 5 sacks (30 kg)
    • Conical mixing tube for optimum material flow
    • Control voltage 42 volts
      for the greatest operational safety
    • Ready for remote control cable
    • Grout outlet DN35 female part with mortar pressure gauge
    • Pressure flange per improved material flow, extends the rotor/stator life
    • Rubber mixing zone, for easy cleaning, with adaptable flange for D and R pump
      Note: Scope of supply: Suction and pressure flange for D-pump
    • Mixing shaft BIONIK G 4, machine-applied plaster
    • Switches and connections are inside the basic design
    • Connections at the control box:
      GRE 2-16 | H 4 | BLU 3-16
    • Tool box including basic accessories
    • Mixing tube cleaner with cleaning shaft
    • Water connection Geka DN19 (3/4") –
      Required working pressure 2.5 bar
    • Reinforced tubular frame and robust wheel mount
    • Forklift straps and crane lifting eyes
    • Deflector plate on motor - prevents whirling currents in the hopper
    • Flexible mixing intensity thanks to two water inlets
    • Frequency converter (FC) for infinitely variable speed control and torque amplification
      Note: Only in 230 V operation
    • Powerful and reliable operation via standard power socket
    • Trouble-free operation thanks to large water fine filter with low mesh size

    Basic equipment package :

    • Rotor SD 6–3 slimline / Stator SD 6–3 slimline
      Pump capacity: max. 20 l/min, 25 bar,
      230 volts, up to 15 m conveying distance with DN25
      400 volts, up to 30 m conveying distance with DN25
      400 volts, up to 50 m conveying distance with DN35
    • Water flow meter 150 – 1,500 l/h
    • RONDO DN25 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2") Ewo | Geka – 11 m
    • Cleaner coupling for cleaning the material hose
      DN35 female part | Geka
    • Adapter coupling DN35 male part | DN25 male part
    • Spraying gun DN25-360° S14 200 Geka
    • Air compressor COMP P-200,
      230 V, 1 Ph, 50 Hz, 0.5 kW,
      200 l/min with pressure control
    • Adapter cable RED 5-32 A | BLU 2-16 A – 1 m

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00063340

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 25 m (230 V/3 Ph)

00063340 Bild
Part no.

00063341

Description

Extension cable 5 x 4 mm², BLU 5-32 A – 50 m (230 V/3 Ph)

00063341 Bild
Part no.

00109440

Description

Extension cable 3 x 4 mm², BLU 3-32 A – 25 m (230 V/1 Ph)

00109440 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

00021119

Description

RONDO DN35 – 13.3 m

00021119 Bild
Part no.

00021105

Description

RONDO DN35 – 20 m

00021105 Bild
Part no.

00021123

Description

RONDO DN35 pouring hose – 13.3 m

00021123 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211300

Description

Air hose DN12 (1/2") Geka | Geka – 15 m

20211300 Bild

Useful extras

Part no.
Description

20600213

Injection hood

  • Including level indicator
  • Including extension for remote control cable – 25 m + 50 m

20600213 Bild
20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00493481

Water pump as pressure booster pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: For mounting on the machine

00493481 Bild
00492679

Water pump as suction pump
AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
Note: Free-standing

00492679 Bild
00497368

Water pump as suction pump
AV 1000, 230 V, 1 Ph, 50 Hz, 0.6 kW
Note: Free-standing

00497368 Bild
00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00414337

COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414337 Bild
00414866

COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414866 Bild
00196221

COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.4 bar with pressure switch-off

00196221 Bild
00680923

COMP P-200, 400 V, 3 Ph, 50 Hz, 0.5 kW
200 l/min - max. 3.8 bar with pressure switch-off

00680923 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
20104310

Consistency checking tube DN35 male part

20104310 Bild
00447911

Conversion kit to rubber mixing tube consisting of:

  • Rubber mixing tube
  • Rubber mixing zone D-/R-Pump
  • Suction flange D-pump

00447911 Bild

Video
